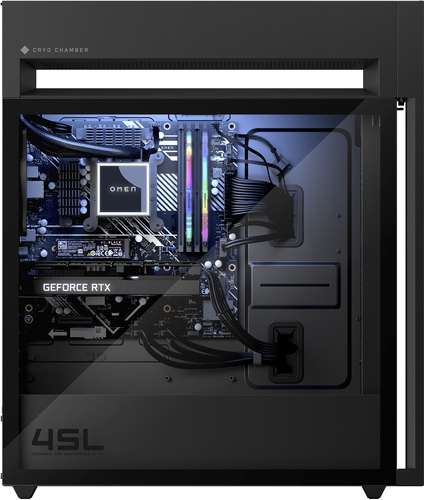

OMEN by HP 45L GT22-1002na
Model OMEN by HP 45L GT22-1002naPart no. 7F648EAEAN 197192261835
130 specifications
- ProcessorIntel® Core™ i9
- Memory64 GB
- Storage3 TB
- GraphicsNVIDIA GeForce RTX 4090
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i9
- Memory
- 64 GB
- Storage
- 3 TB
- Graphics
- NVIDIA GeForce RTX 4090
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- HP
- Category
- PCs/Workstations
- Model
- OMEN by HP 45L GT22-1002na
- Part number
- 7F648EA
- EAN / UPC
- 197192261835
- Also known as
- OMEN by HP 45L GT22-1002na Intel® Core™ i9 i9-13900K 64 GB DDR5-SDRAM 3 TB HDD+SSD NVIDIA GeForce RTX 4090 Windows 11 Home Tower PC Liquid cooling system Black
Specifications
130 specifications in 21 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 13th gen Intel® Core™ i9 |
| Processor model | i9-13900K |
| Processor cores | 24 |
| Processor threads | 32 |
| Processor boost frequency | 5.8 GHz |
| Processor cache | 36 MB |
| Processor cache type | L3 |
| Bus type | DMI4 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 4 x 16 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 5200 MHz |
| ECC | No |
| Internal memory manufacturer | HyperX |
| Number of free internal memory expansion slots | 4 |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 3 TB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Total HDDs capacity | 2 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4090 |
| Discrete graphics card memory | 24 GB |
| Discrete graphics memory type | GDDR6X |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel Z790 |
| Motherboard form factor | micro ATX |
| Password protection | Yes |
| Password protection type | BIOS, Power on, User |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 3 |
| PCI Express x16 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1200 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Colour name | Black, glass side panel, dark chrome logo |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Liquid cooling system | Yes |
| Product colour | Black |
| Introduction year | 2022 |
| RGB memory lighting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Pre-installed software | ExpressVPN (30 day free trial); LastPass Premium (30 day free trial), 1 month trial for new Microsoft 365 customers, McAfee Online Protection 30-day trial; Xbox Game Pass 1-month free trial |
| Trial software | 25 GB Dropbox storage for 12 months |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Extreme Memory Profile (XMP) | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP Security tools | Chassis side cover lock |
| HP Software provided | HP Connection Optimizer; HP Support Assistant; OMEN Gaming Hub; HP Enhanced Lighting; myHP |
| HP segment | Home |
| HP GTIN (EAN/UPC) | 197192261835 |
Audio
| Specification | Value |
|---|---|
| Audio system | DTS:X Ultra |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204 mm |
| Depth | 470 mm |
| Height | 555 mm |
| Weight | 22.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 592 mm |
| Package depth | 328 mm |
| Package height | 672 mm |
| Package weight | 25.2 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
| Sustainable technologies and materials | Water based paint |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 2 |
| Carbon emissions, logistics (kg of CO2e) | 2 |
| Carbon emissions, manufacturing (kg of CO2e) | 132 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 86 |
| Total carbon footprint (kg of CO2e) | 220 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8471500000 |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
