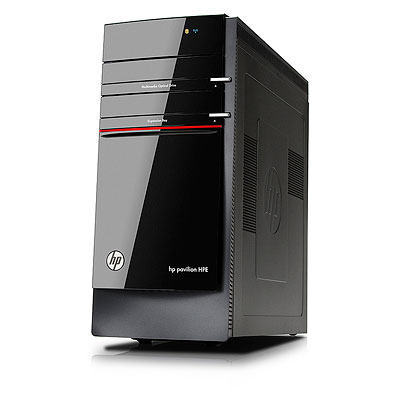

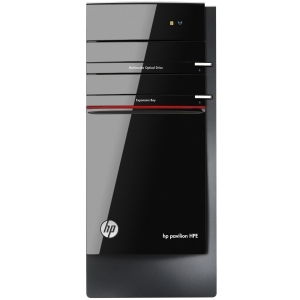

HPE h8-1203ed
Model HPE h8-1203edPart no. B2H57EA#ABH
130 specifications
- ProcessorIntel® Core™ i7
- Memory6 GB
- Storage1 TB
- GraphicsNVIDIA® GeForce® GTX 550 Ti
- SpeedWi-Fi 4 (802.11n)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 6 GB
- Storage
- 1 TB
- Graphics
- NVIDIA® GeForce® GTX 550 Ti
- Speed
- Wi-Fi 4 (802.11n)
- Type
- PC
- Brand
- HP
- Category
- PCs/Workstations
- Model
- HPE h8-1203ed
- Part number
- B2H57EA#ABH
- Also known as
- HP Pavilion HPE h8-1203ed Intel® Core™ i7 i7-2600 6 GB DDR3-SDRAM 1 TB NVIDIA® GeForce® GTX 550 Ti Windows 7 Home Premium Micro Tower PC Black
Specifications
130 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 2nd gen Intel® Core™ i7 |
| Processor model | i7-2600 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-2600 Desktop Series |
| Processor codename | Sandy Bridge |
| Thermal Design Power (TDP) | 95 W |
| Tcase | 72.6 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1155 (Socket H2) |
| CPU multiplier (bus/core ratio) | 34 |
| Stepping | D2 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 6 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 2 + 1 x 4 GB |
| Memory slots | 4x DIMM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD Super Multi |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 550 Ti |
| Discrete graphics card memory | 1 GB |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 2000 |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 850 MHz |
| On-board graphics card dynamic frequency (max) | 1350 MHz |
| On-board graphics card ID | 0x102 |
| Graphics card family | NVIDIA |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® H67 |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |

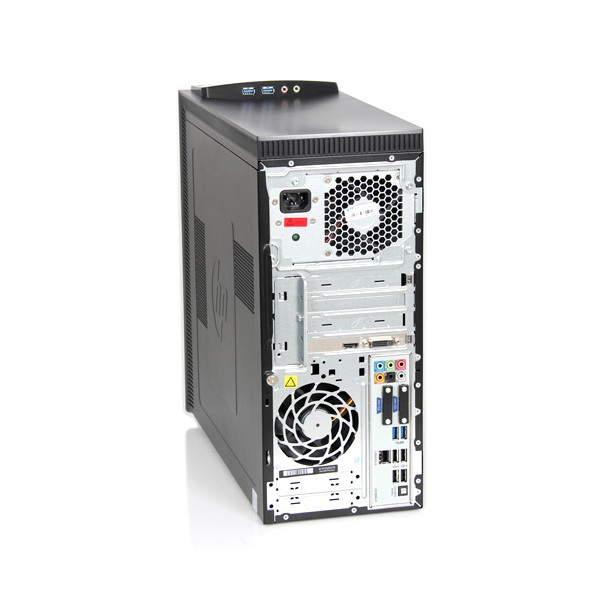

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| Mini HDMI ports quantity | 1 |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 3 |
| PCI Express x16 slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 460 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Home Premium |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 52213 |
| Processor code | SR00B |
| Processor package size | 37.5 x 37.5 mm |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Beats Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 412 mm |
| Height | 415 mm |
| Weight | 12 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
