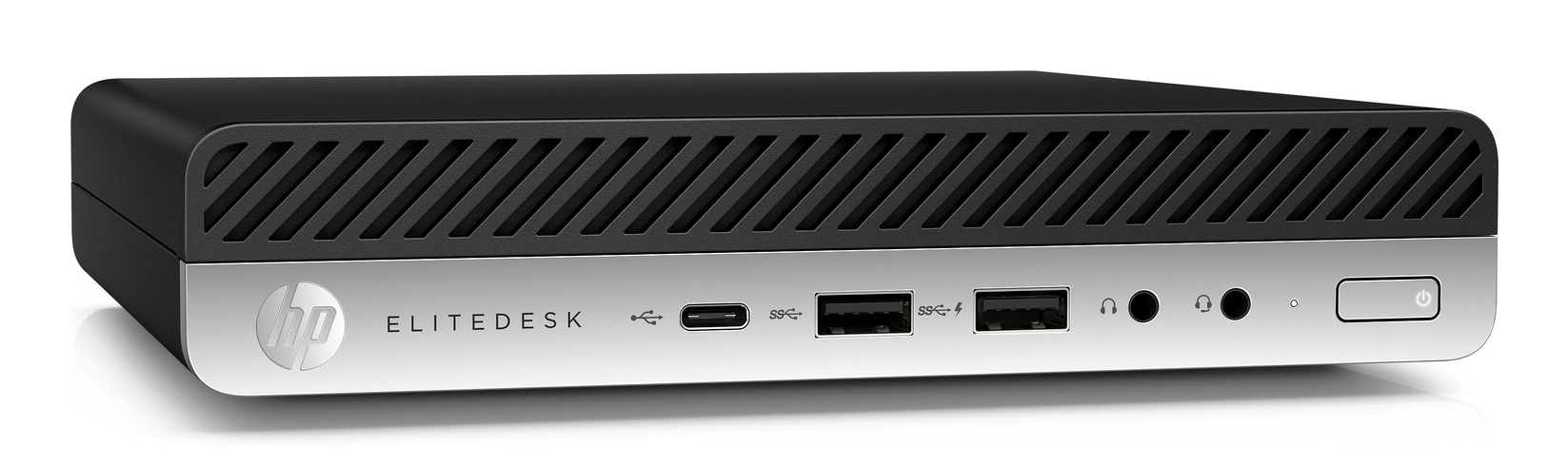

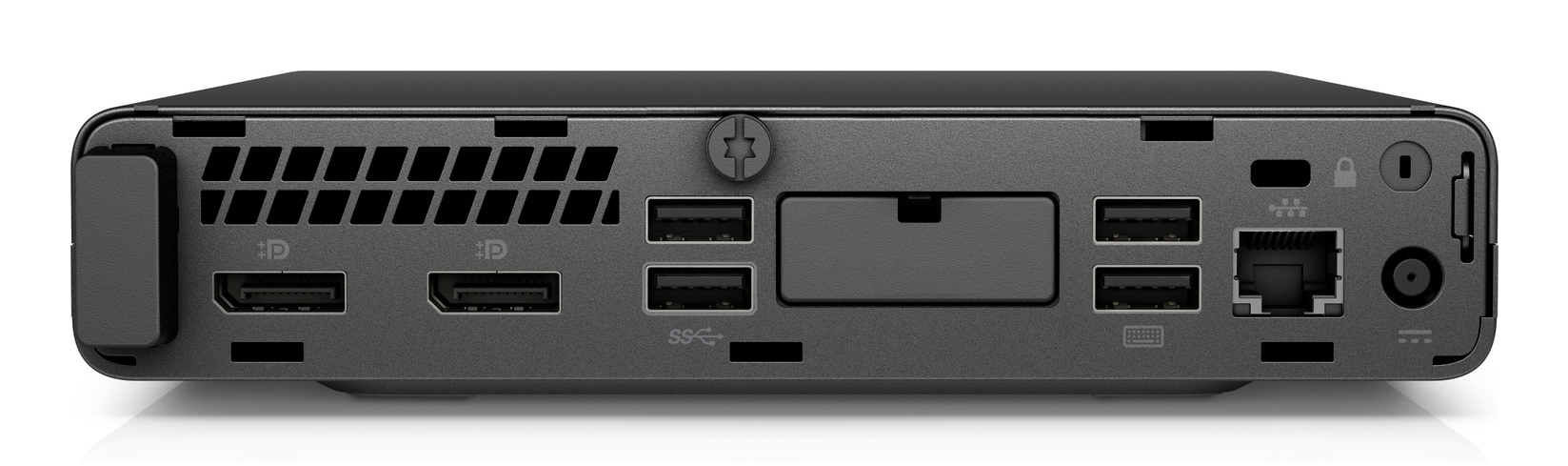

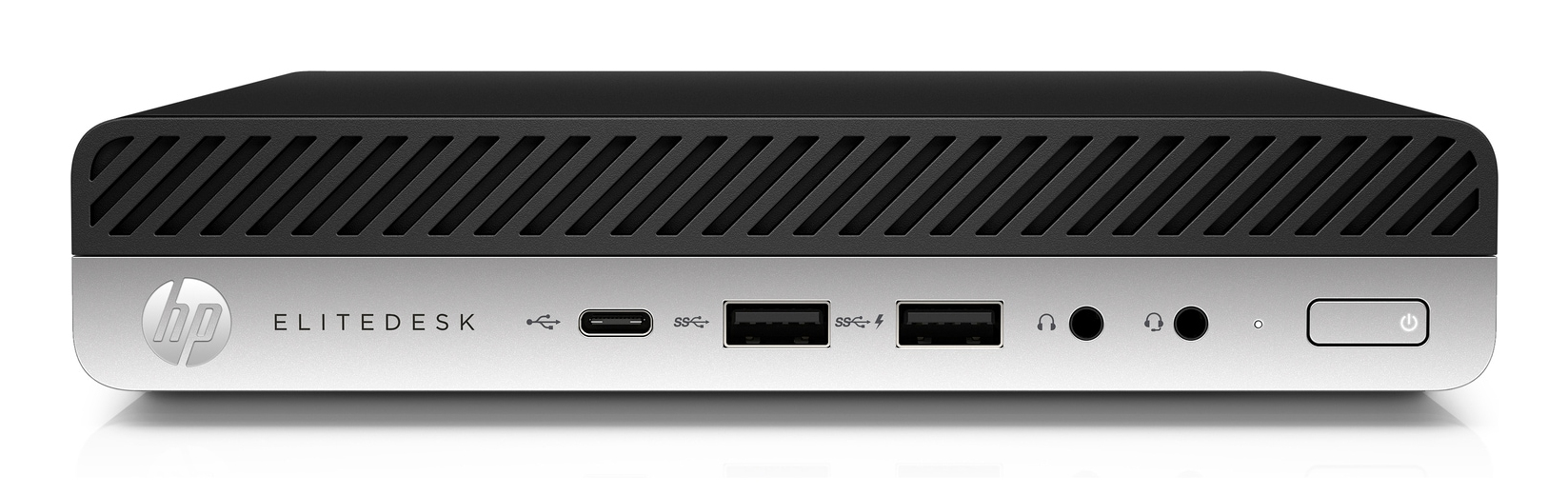

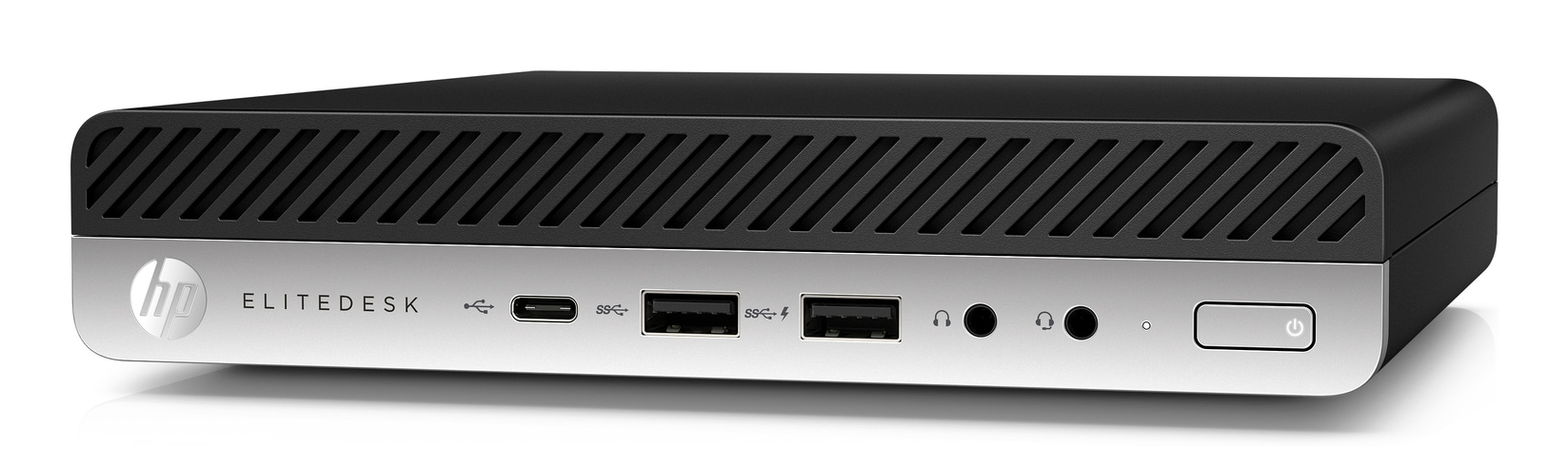

EliteDesk 800 G4 Desktop Mini PC 5AY64EP
Model EliteDesk 800 G4 Desktop Mini PC 5AY64EPPart no. 5AY64EP
97 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage500 GB
- GraphicsNot available
- TypeMini PC
- OSWindows 10 Pro
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 500 GB
- Graphics
- Not available
- Type
- Mini PC
- OS
- Windows 10 Pro
- Brand
- HP
- Category
- PCs/Workstations
- Model
- EliteDesk 800 G4 Desktop Mini PC 5AY64EP
- Part number
- 5AY64EP
- Also known as
- HP EliteDesk 800 G4 Desktop Mini PC 5AY64EP Intel® Core™ i5 i5-8500T 8 GB DDR4-SDRAM 500 GB HDD Windows 10 Pro Black, Silver
Specifications
97 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8500T |
| Processor cores | 6 |
| Processor boost frequency | 3.5 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 9 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI3 |
| Configurable TDP-down | 25 W |
| Configurable TDP-down frequency | 1.6 GHz |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Total HDDs capacity | 500 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics 630 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Premium |
| Motherboard chipset | Intel Q370 |
| Password protection | Yes |
| Password protection type | Power on |
| Trusted Platform Module (TPM) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | No |
| DVI port | No |
| M.2 card slot (storage) | 2 |
| M.2 card slot (wireless) | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Number of 2.5" bays | 1 |
| Product colour | Black, Silver |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Conflict-Free processor | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| HP segment | Business |
Audio
| Specification | Value |
|---|---|
| Audio chip | Conexant CX20632 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177 mm |
| Depth | 175 mm |
| Height | 34 mm |
| Weight | 960 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 497 mm |
| Package depth | 128 mm |
| Package height | 223 mm |
| Package weight | 2.95 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
