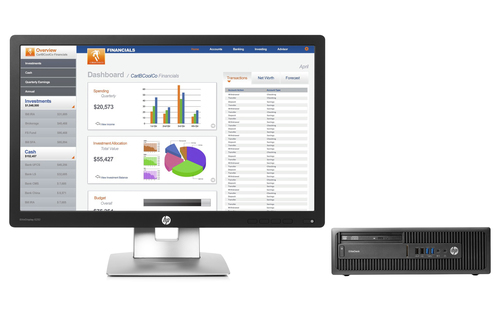

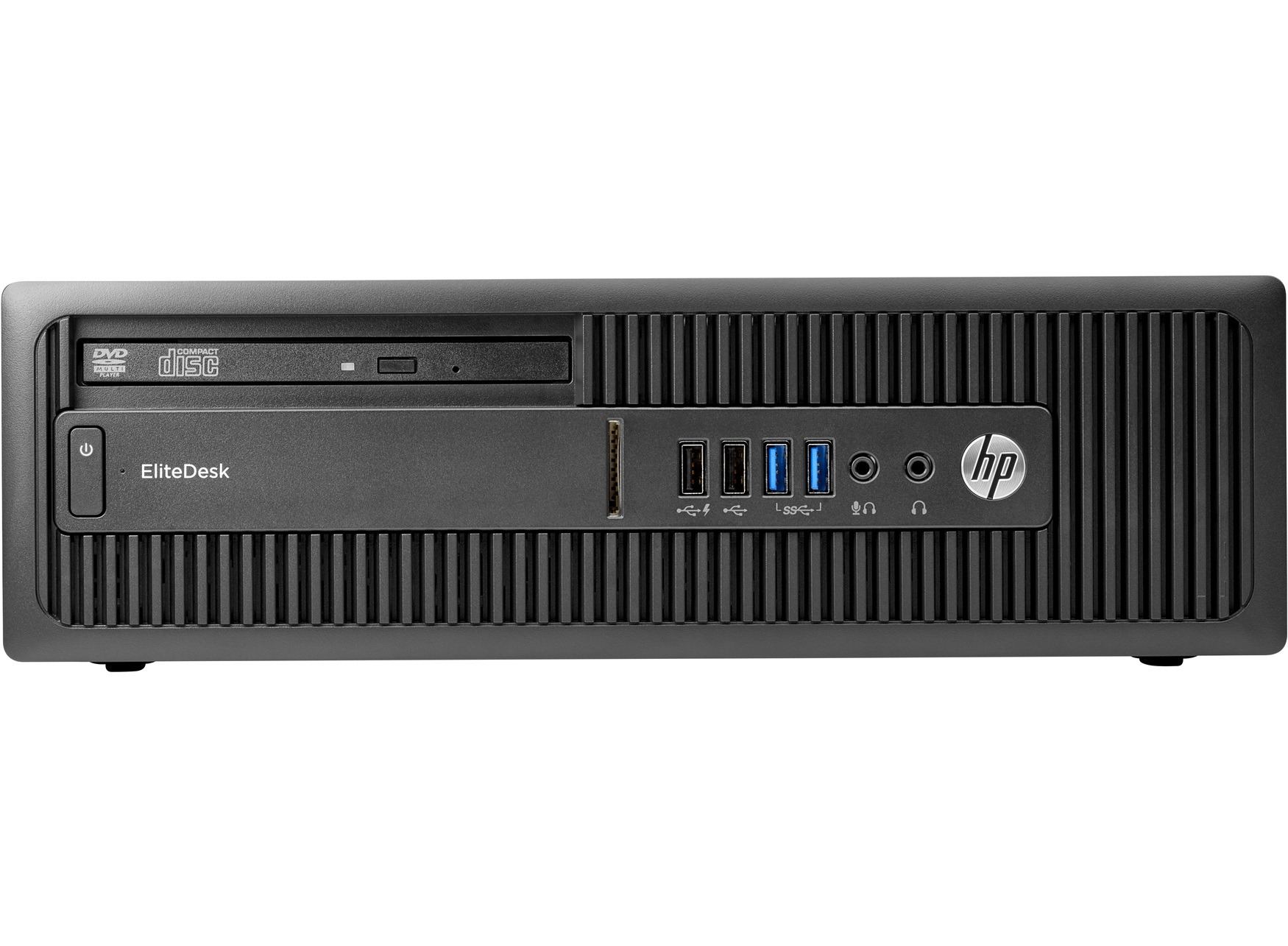

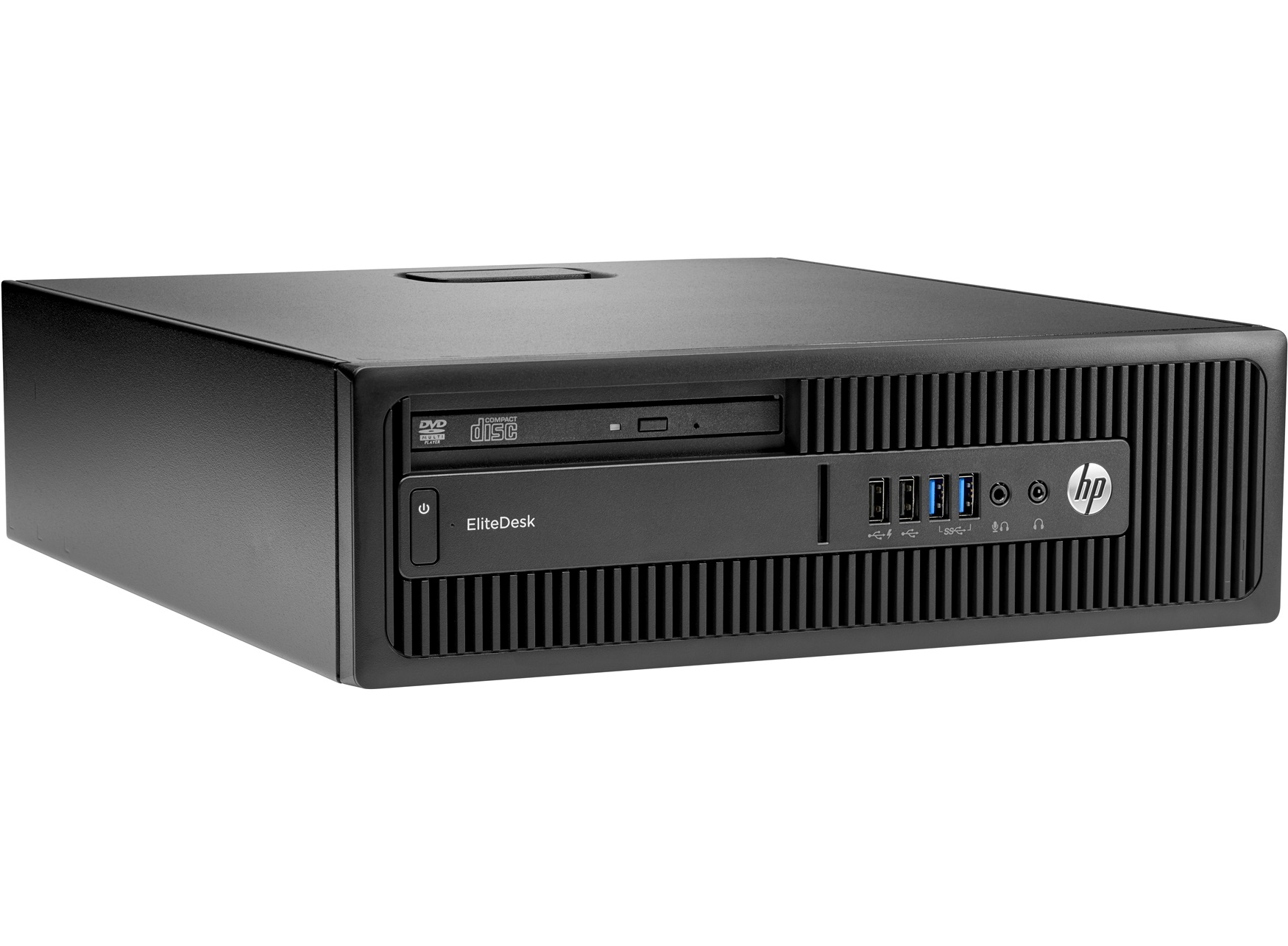

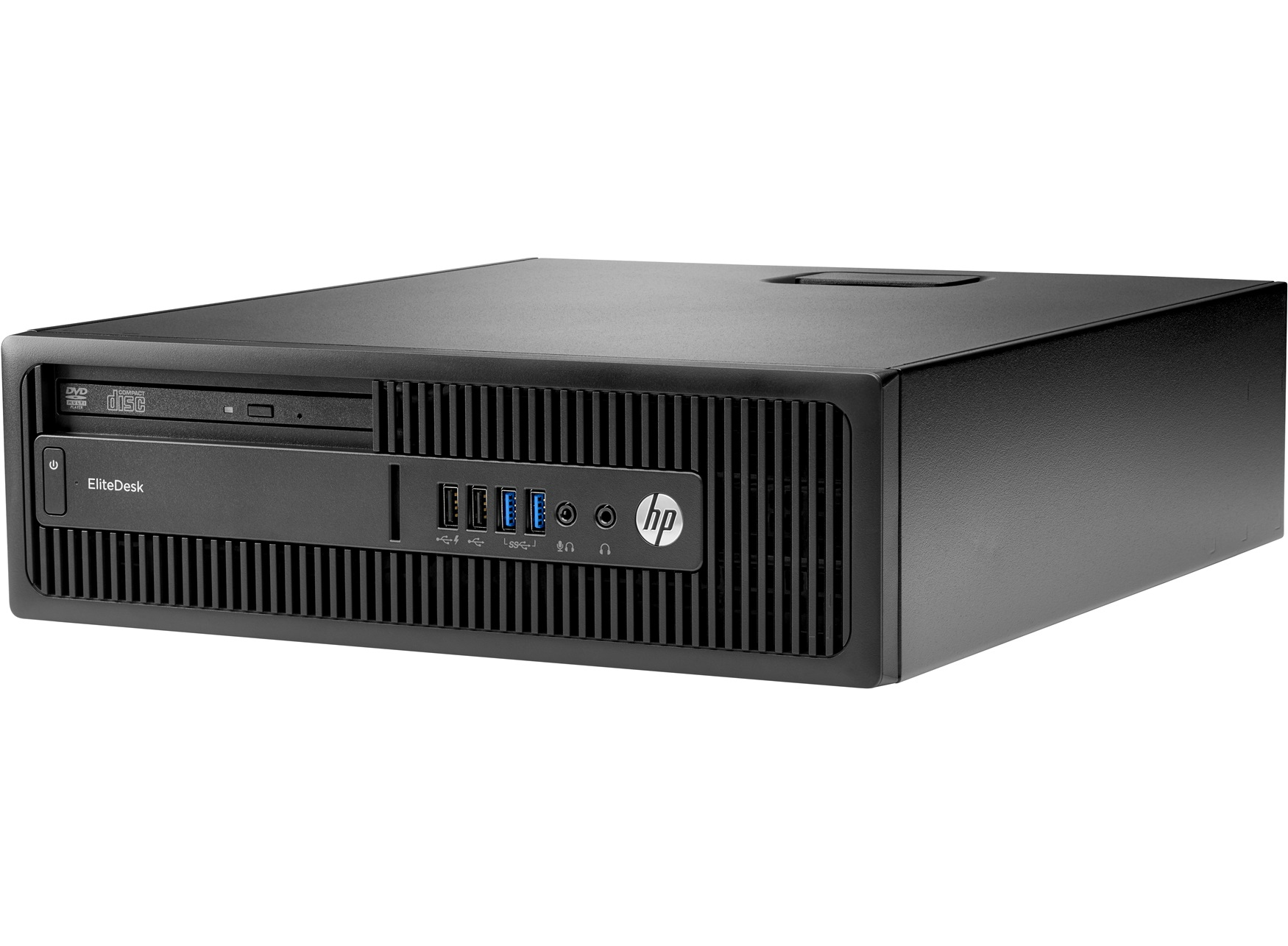

EliteDesk 705 G3 SFF + EliteDisplay E232
Model EliteDesk 705 G3 SFF + EliteDisplay E232Part no. 2KR99EA+M1N98AT/99679821
82 specifications
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ProcessorAMD Ryzen™ 5
- Memory8 GB
- Storage256 GB
- GraphicsAMD Radeon R7 430
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Processor
- AMD Ryzen™ 5
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- AMD Radeon R7 430
- Brand
- HP
- Category
- PCs/Workstations
- Model
- EliteDesk 705 G3 SFF + EliteDisplay E232
- Part number
- 2KR99EA+M1N98AT/99679821
- Also known as
- HP EliteDesk 705 G3 SFF + EliteDisplay E232 AMD Ryzen™ 5 PRO 1500 8 GB DDR4-SDRAM 256 GB SSD AMD Radeon R7 430 Windows 10 Pro PC Black
Specifications
82 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 5 |
| Processor generation | AMD Ryzen PRO 1000 Series |
| Processor model | PRO 1500 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.7 GHz |
| Processor frequency | 3.5 GHz |
| Processor cache | 16 MB |
| Processor cache type | L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2400 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | DVD-RW |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | SATA |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | AMD Radeon R7 430 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR4 |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD B350 FCH |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
| BD interface type | SATA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | No |

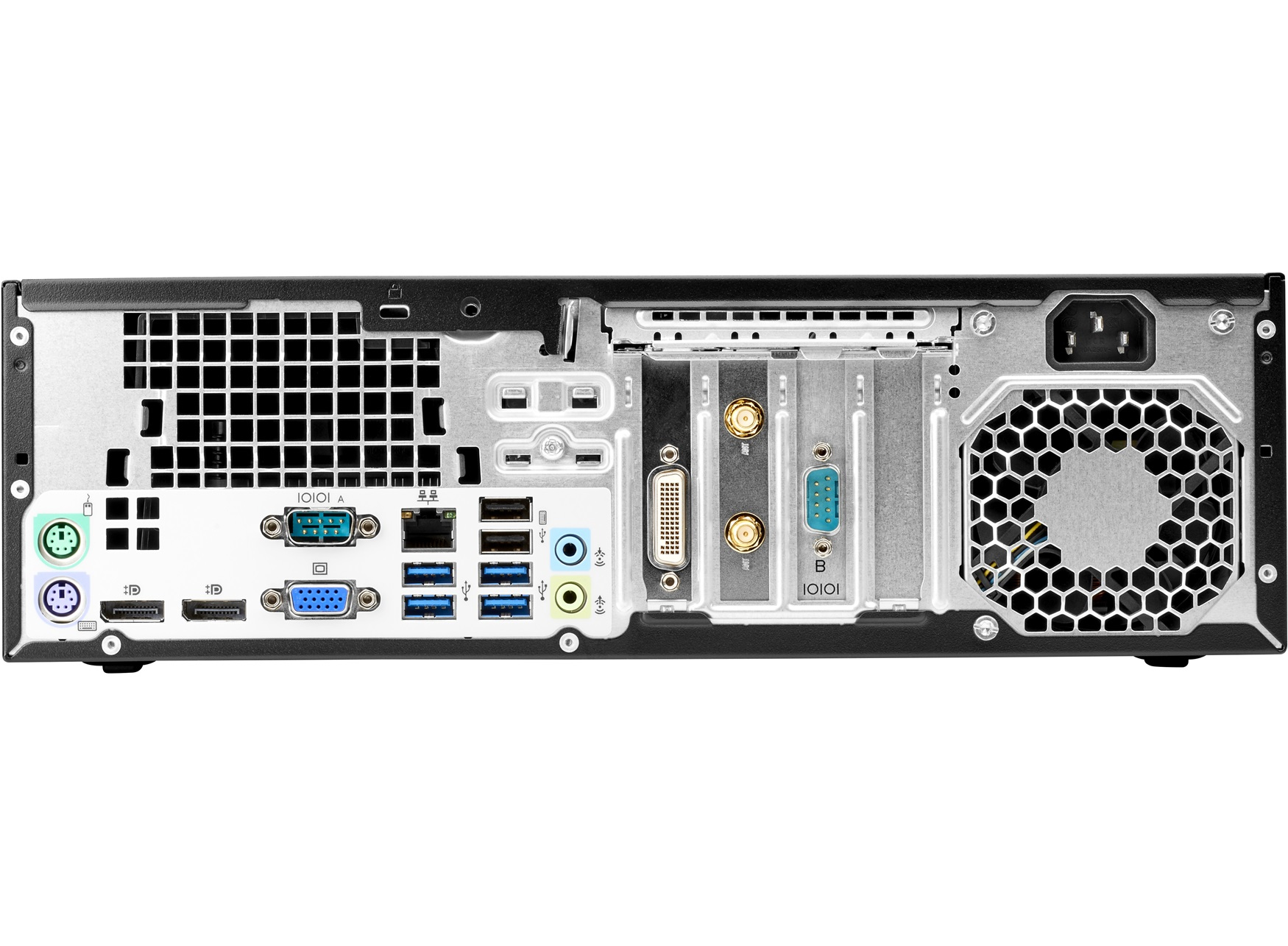

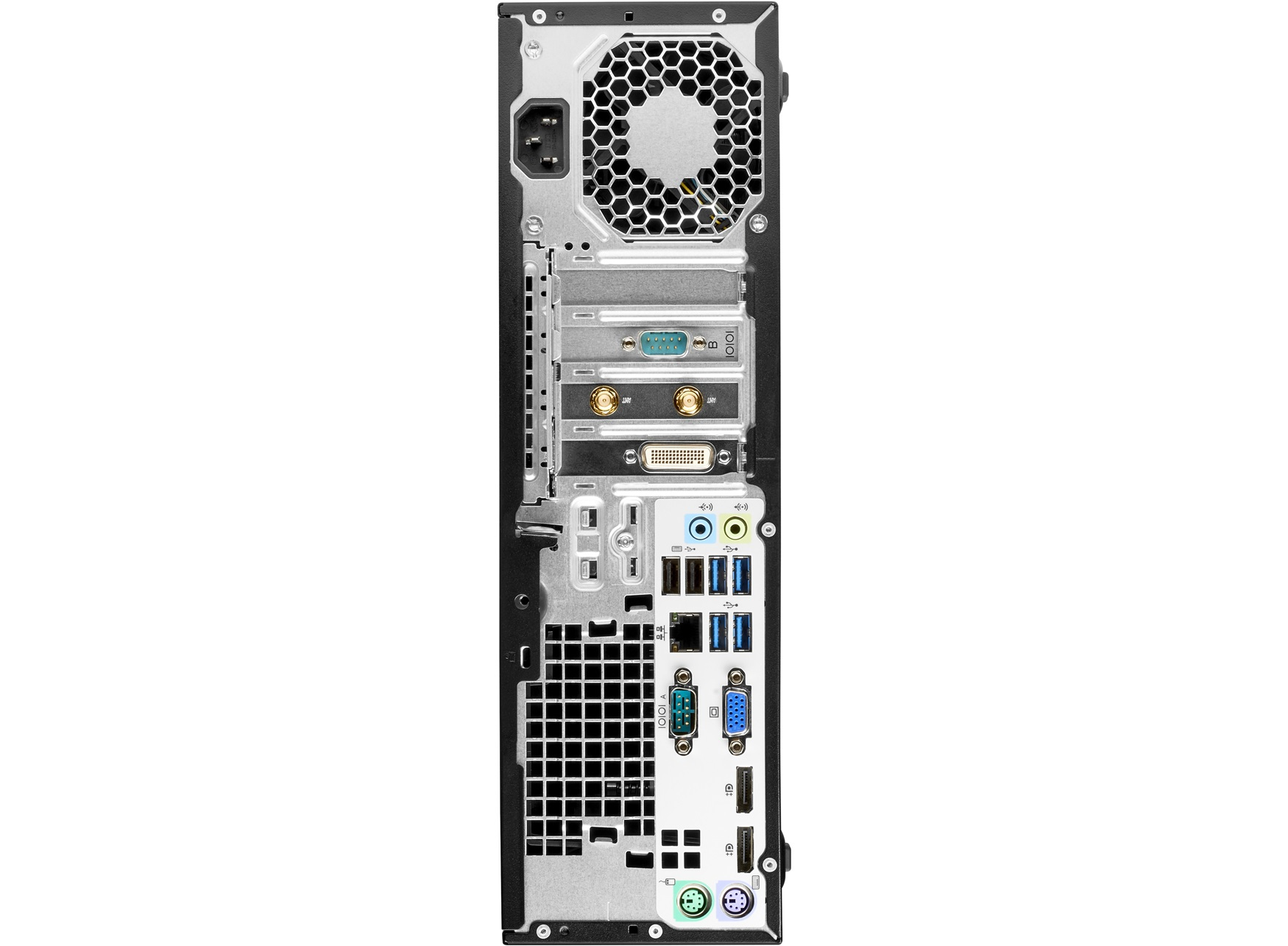

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 200 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 58.4 cm (23") |
| Display type | LED |
| Full HD | Yes |
| Display resolution | 1920 x 1080 pixels |
| Panel type | IPS |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC221 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 380 mm |
| Depth | 338 mm |
| Height | 100 mm |
| Weight | 6.6 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
