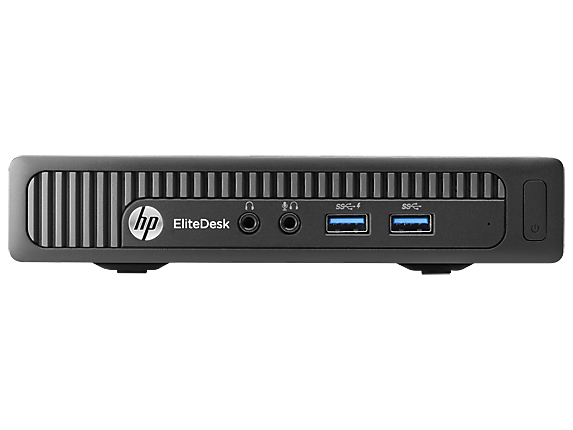

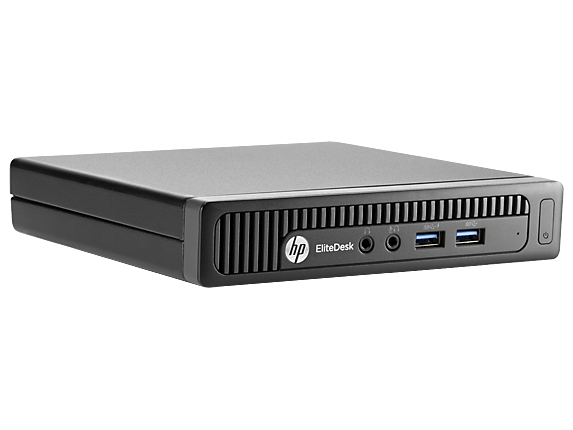

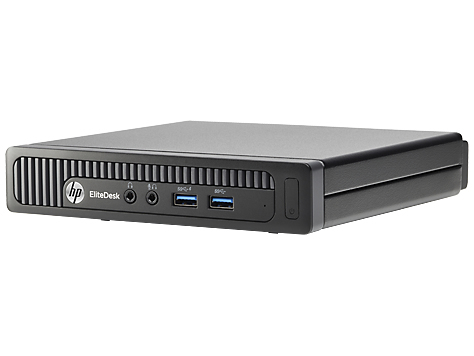

EliteDesk 705 G1 Base Model Desktop Mini PC
Model EliteDesk 705 G1 Base Model Desktop Mini PCPart no. G2U05AV
132 specifications
- ProcessorAMD PRO A4
- Memory4 GB
- Storage500 GB
- TypePC
- OSWindows 7 Professional
- Weight1.3 kg
Overview
- Processor
- AMD PRO A4
- Memory
- 4 GB
- Storage
- 500 GB
- Type
- PC
- OS
- Windows 7 Professional
- Weight
- 1.3 kg
- Brand
- HP
- Category
- PCs/Workstations
- Model
- EliteDesk 705 G1 Base Model Desktop Mini PC
- Part number
- G2U05AV
- Also known as
- HP EliteDesk 705 G1 Base Model Desktop Mini PC AMD PRO A4 PRO A4-7350B 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Black
Specifications
132 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD PRO A4 |
| Processor model | PRO A4-7350B |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Number of processors installed | 1 |
| Processor socket | Socket AM2+ |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 1600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | No |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | AMD Radeon R5 |
| On-board graphics card model | AMD Radeon R5 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD D4 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 0 |
| LightScribe | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
| Bluetooth | No |

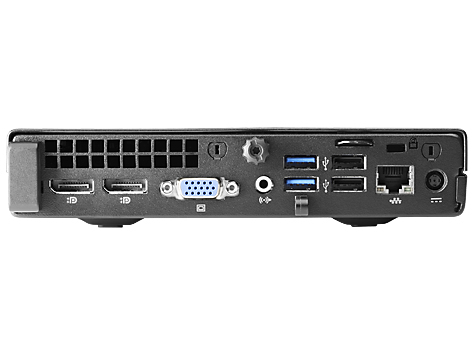

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Volume | 1 L |

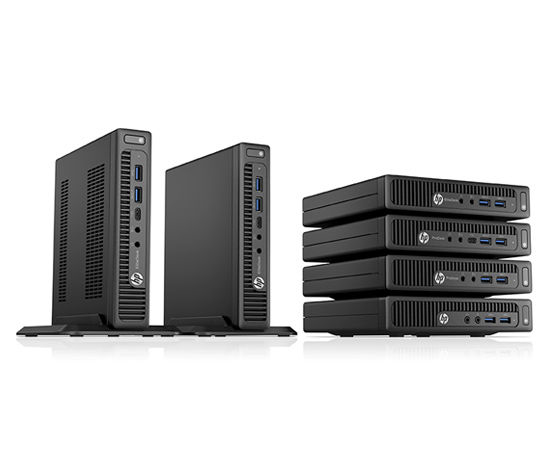

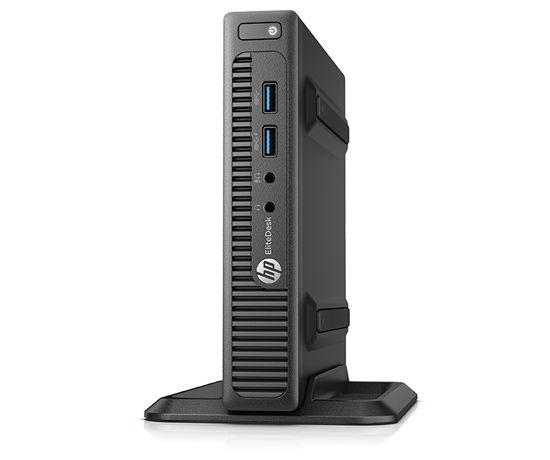

| Placement supported | Horizontal/Vertical |
| Number of 2.5" bays | 1 |
| Liquid cooling system | No |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 32-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | No |
| Idle States | No |
| Intel 64 | No |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel HD Graphics | No |
| Intel QuickPath Interconnect | No |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Standard Manageability | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Active Management Technology (Intel® AMT) | No |
| Intel® Built-in Visuals Technology | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® OS Guard | No |
| Intel® Pro Wireless Display (Intel® Pro WiDi) | No |
| Intel® Secure Key | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Cache | No |
| Intel® Unite™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Wireless-AC Technology | No |
| Thermal Monitoring Technologies | No |
| Thunderbolt™ 3 Technology | No |
| UART | No |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3050 m |
| Non-operating altitude | 0 - 4570 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 177 mm |
| Height | 34 mm |
| Weight | 1.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Numeric keypad | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
