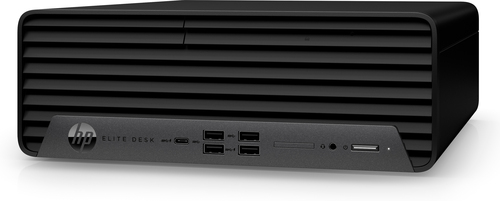

Elite SFF 800 G9 Desktop PC
Model Elite SFF 800 G9 Desktop PCPart no. 86F71UC#ABAEAN 196548837014
84 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- TypePC
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- PC
- OS
- Windows 11 Pro
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Elite SFF 800 G9 Desktop PC
- Part numbers
- 86F71UC#ABA, 5L292EA
- EAN / UPC
- 196548837014, 196786024771
- Also known as
- HP Elite SFF 800 G9 Desktop PC Intel® Core™ i7 i7-12700 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Black
Specifications
84 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700 |
| Processor cores | 12 |
| Processor threads | 20 |
| Processor boost frequency | 4.9 GHz |
| Performance cores | 8 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.6 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Processor cache | 25 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 180 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD memory type | TLC |
| NVMe | Yes |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Business |
| Motherboard chipset | Intel Q670 |
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
Display
| Specification | Value |
|---|---|
| Display included | No |
Brand-specific features
| Specification | Value |
|---|---|
| HP Support Assistant | Yes |
| HP Software provided | HP Notifications; HP PC Hardware Diagnostics UEFI; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; MyHP; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Co |
| HP segment | Business |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3252 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 338 mm |
| Depth | 308 mm |
| Height | 100 mm |
| Weight | 5.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 399 mm |
| Package depth | 499 mm |
| Package height | 228 mm |
| Package weight | 7.92 kg |
Packaging content
| Specification | Value |
|---|---|
| Keyboard included | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
