Compaq dc5800 Intel® Core™2 Duo E7500

2 GB DDR2-SDRAM 250 GB Intel® GMA 3100 Windows Vista Business PC

Model dc5800Part no. VD249PAEAN 884962425152

122 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: dc5800
Part numbers: VD249PA, NR905PA, VC635ES, NN499ET, NR903PA
EAN / UPC: 884962425152, 884962335611, 884962421970
Also known as: HP Compaq dc5800 Intel® Core™2 Duo E7500 2 GB DDR2-SDRAM 250 GB Intel® GMA 3100 Windows Vista Business PC

122 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E7500
Processor cores	2
Processor threads	2
Processor frequency	2.93 GHz
Processor cache	3 MB
Processor cache type	L2
Processor front side bus	1066 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E7000 Series
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	74.1 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	228 M
Processing Die size	82 mm²
CPU multiplier (bus/core ratio)	11
Stepping	R0
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 3100
Video card features	3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; integrated 350 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color
Video adapter, bus	PCI Express x16

Specification	Value
Product type	PC
Acoustic power emissions	IDLE (Fixed disk drive spinning): LWAd = 3.8 Bels; FIXED DISK (Random write): LWAd = 3.9 Bels

Specification	Value
LightScribe	Yes

Specification	Value
Networking features	Gigabit Ethernet

Specification	Value
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	0

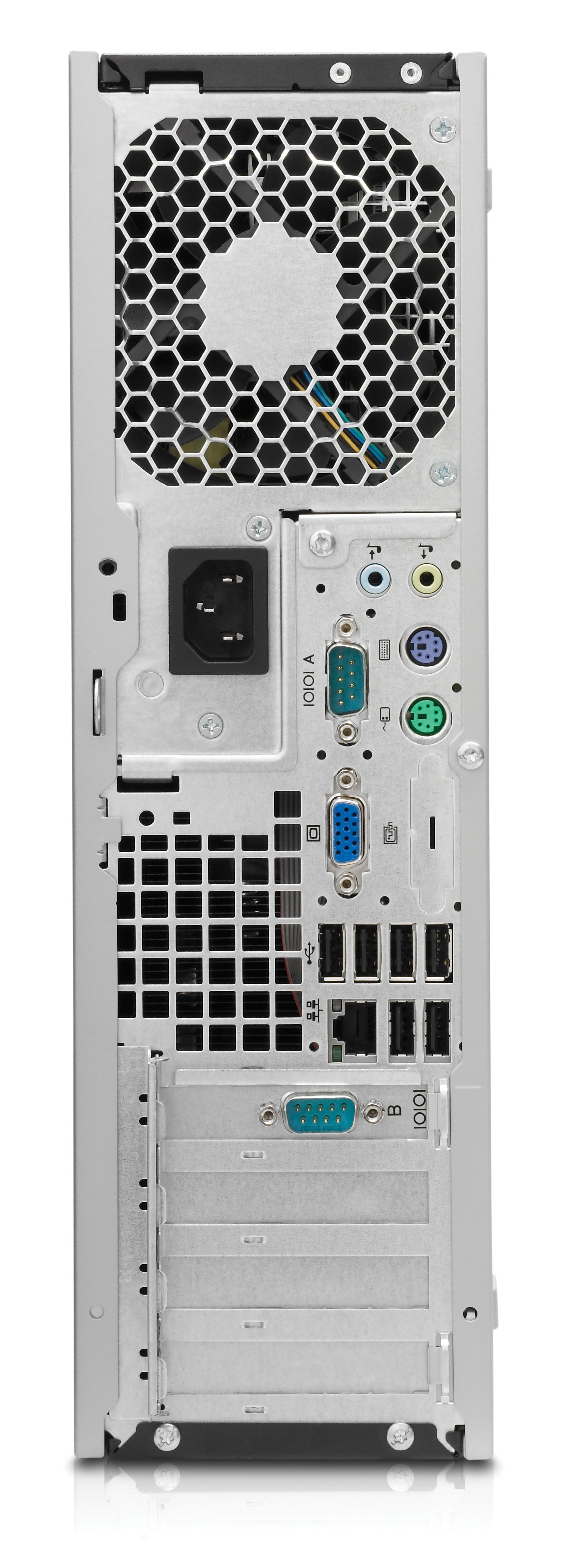

I/O ports	Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 optional parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0, audio ports

Specification	Value
Expansion slots	1 low profile PCI, 2 low profile PCI Express x1, 1 low profile PCI Express x16

Specification	Value
Power requirements	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, passive PFC standard (External 80% High Efficiency) Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current 80 Plus: 3.5 A;
Power supply	240 W
Power supply input voltage	100 - 240 V
Power supply input frequency	50 - 60 Hz
Power consumption (typical)	240 W

Specification	Value
Operating system installed	Windows Vista Business
Applications supported	Windows Vista Premium ready
Compatible operating systems	FreeDOS
Bundled software	On some models only (not included with FreeDOS): HP ProtectTools Security Solutions, HP Backup and Recovery Manager, HP Insight Diagnostics (available via HP Backup and Recovery Manager), HP Software Agent, HP Client Configuration Manager, HP Client Manager for Altiris, HP SoftPaq Download Manager,
Driver LAN	Microsoft Windows XP, Microsoft Windows Vista, FreeDos, Linux

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	2
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	36503
Processor code	SLB9Z
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	High Definition Audio
Audio included	Integrated High Definition audio with ADI1884 codec, microphone and headphone front ports, line-out and line-in rear ports, multistreaming capable, internal PC speaker

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Non-operating altitude	9144

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse
Keyboard type	HP PS/2 Standard Keyboard

Specification	Value
Security management description	Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader
