Compaq dx7400 Intel Core™2 Duo Processor E6550 1G/160G DVD-ROM FreeDOS Microtower PC

Model Compaq dx7400 Intel Core™2 Duo Processor E6550 1G/160G DVD-ROM FreeDOS Microtower PCPart no. GV895EAEAN 883585530328

121 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Compaq dx7400 Intel Core™2 Duo Processor E6550 1G/160G DVD-ROM FreeDOS Microtower PC
Part number: GV895EA
EAN / UPC: 883585530328, 883585487974, 883585487981, 883585487998 +4 more
Also known as: HP Compaq dx7400 Intel Core™2 Duo Processor E6550 1G/160G DVD-ROM FreeDOS Microtower PC Intel® Core™2 Duo 1 GB DDR2-SDRAM 250 GB Intel® GMA 3100 Windows XP Prof

121 specifications in 19 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6550
Processor cores	2
Processor threads	2
Processor frequency	2.33 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E6000 Series
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	72 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	7
Stepping	G0
ECC supported by processor	No

Specification	Value
Discrete graphics card model	Intel® GMA 3100
Graphics card RAMDAC	400 MHz
Maximum graphics card memory	0.256 GB
Graphics card Open GL support	Yes
Video adapter resolution	2048x1536
Video card features	3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; integrated 400 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color
Video adapter, bus	PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85 Hz at 2048x1536

Specification	Value
Product type	PC
Acoustic power emissions	IDLE: LWAd = 4.3 Bels; FIXED DISK: LWAd = 4.8 Bels; OPTICAL DRIVE: LWAd = 5.2 Bels

Specification	Value
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	1

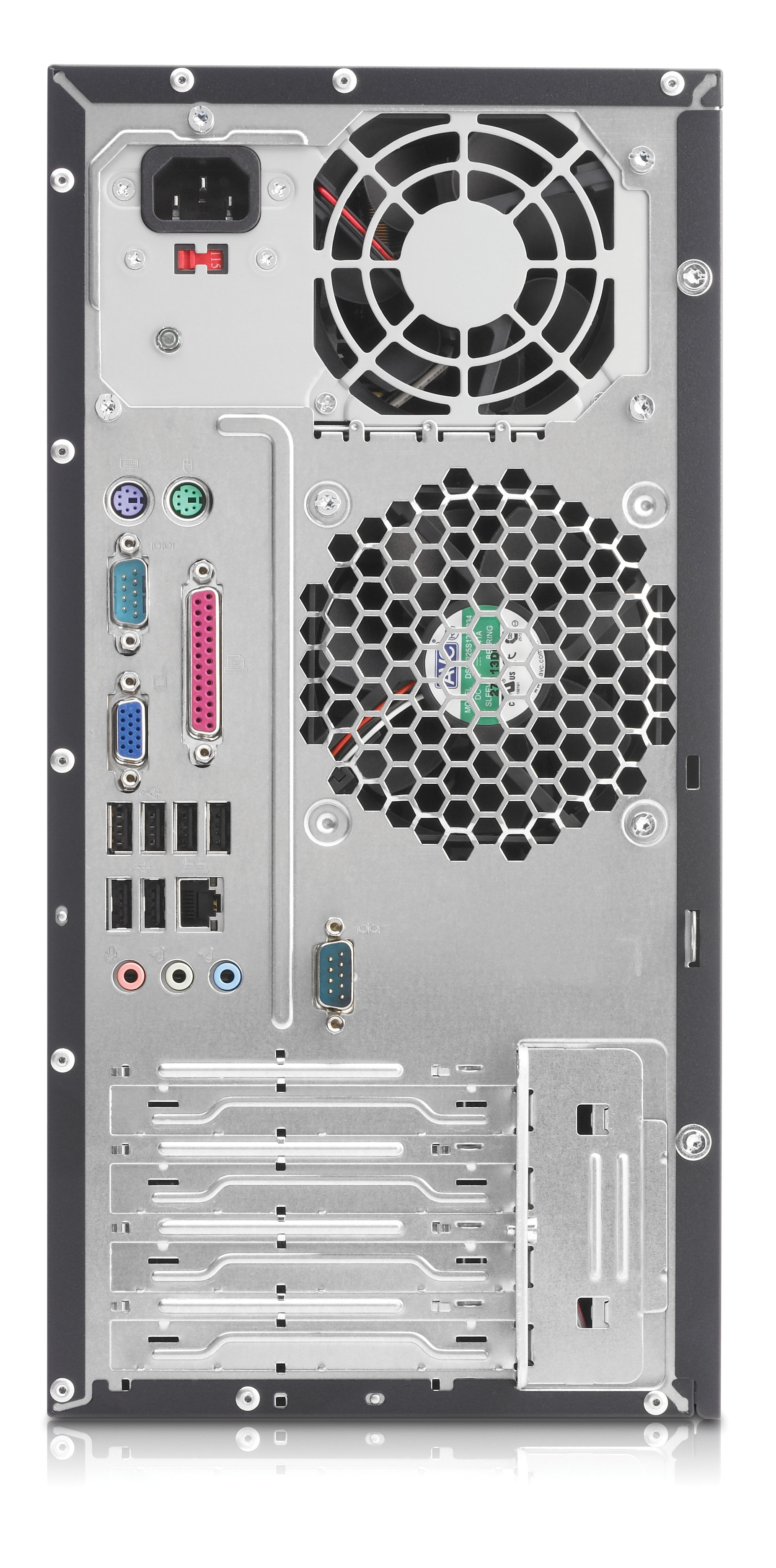

I/O ports	Rear: 6 USB 2.0, 1 serial port, 1 optional second serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, Mic In, Front: 2 USB 2.0, audio ports

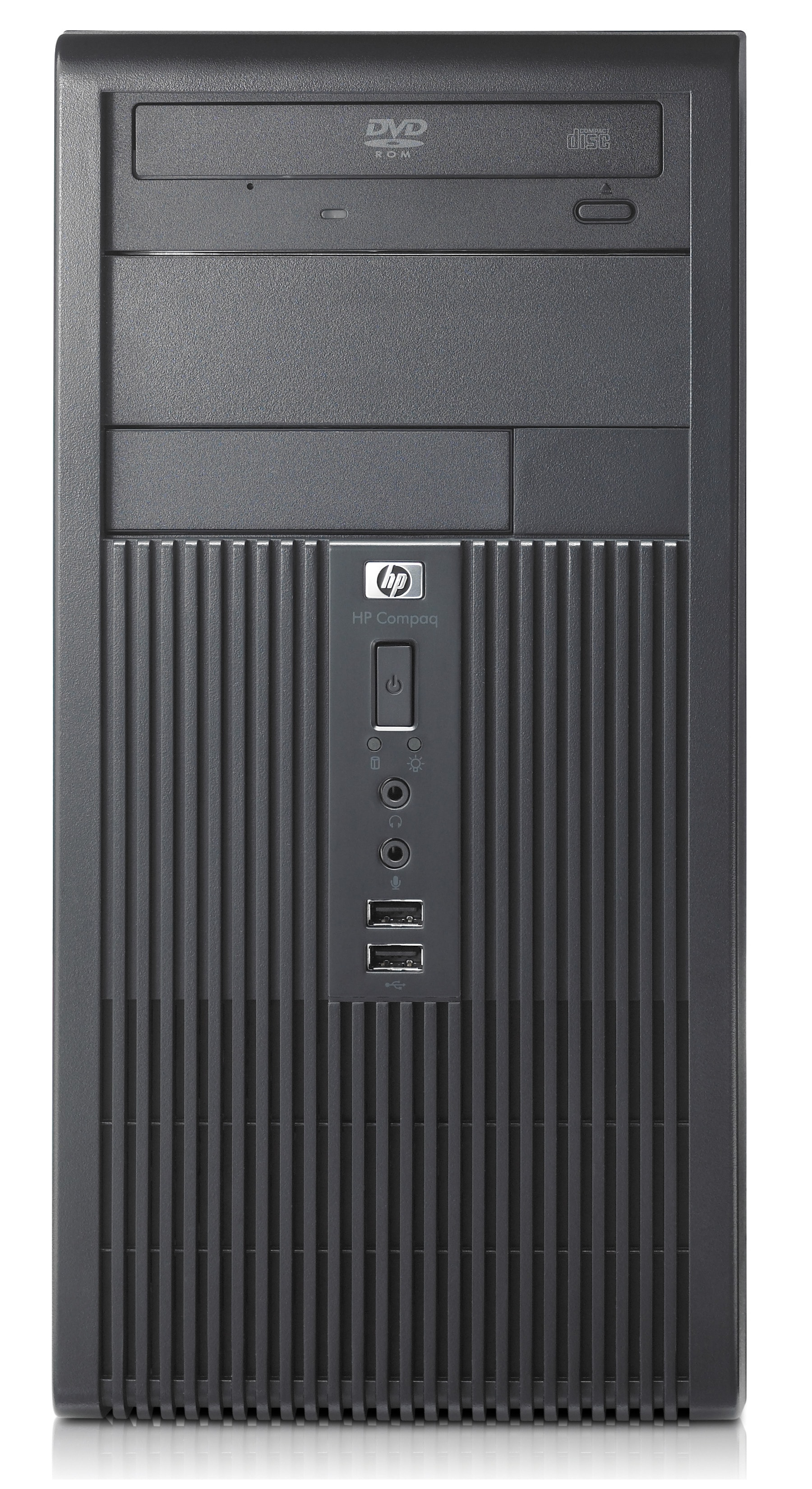

Front connections	2 x USB 2.0

Specification	Value
Expansion slots	1 x PCI 2.3 2 x PCI Express x1 1 x PCI Express x16

Specification	Value
Power requirements	Input voltage 90 – 140 / 100 – 127 VAC, 50/60 Hz, 47 – 63 Hz, passive PFC Passive Power Factor Correction (PFC) - with line switch set to 230 V - No PFC in 115 V line switch position; 90 to 140 VAC, or 180 to 264 VAC operating voltage range; 100 to 127 VAC, or 200 to 240 VAC rated voltage range; 50-
Power consumption (typical)	300 W
Power management	No

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	Microsoft Office 2007 Basic, Microsoft Office 2007 Small Business, Microsoft Office 2007 Professional

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	30783
Processor code	SLA9X
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	Realtek ALC888
Audio included	Integrated High Definition audio with Realtek ALC888 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	10 - 95%
