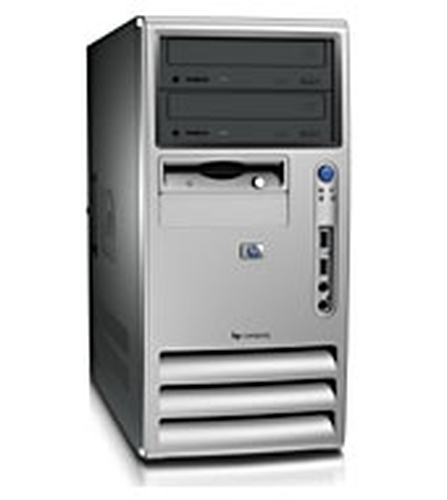

HP Compaq dx6100 Microtower P4 520 HT 256M/80G DVD-CDRW LAN WXP Pro SP1a

Model Compaq dx6100 Microtower P4 520 HT 256M/80G DVD-CDRW LAN WXP Pro SP1aPart no. PD742A

109 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Compaq dx6100 Microtower P4 520 HT 256M/80G DVD-CDRW LAN WXP Pro SP1a
Part number: PD742A
Also known as: HP Compaq dx6100 Microtower P4 520 HT 256M/80G DVD-CDRW LAN WXP Pro SP1a Intel® Pentium® 4 0.25 GB DDR-SDRAM 80 GB PC

109 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® 4
Processor model	520
Processor cores	1
Processor threads	2
Processor frequency	2.8 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	90 nm
Processor operating modes	32-bit
Processor codename	Prescott
Thermal Design Power (TDP)	84 W
Tcase	67.7 °C
Tjunction	100 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	125 M
Processing Die size	112 mm²
CPU multiplier (bus/core ratio)	12
Processor core voltage (AC)	0.95 - 1.30 V
ECC supported by processor	No
Cache external	1024 KB

Specification	Value
Maximum graphics card memory	0.128 GB
Video card features	<85 Hz @ 1920x1440, 75 Hz @ 2048x1536
Video adapter, bus	PCI
Video adapter features	3D/2D Controller: Microsoft DirectX 9 based with support for Pixel Shader 2.0, 4:1 anisotropic filtering, Gaussian texture filtering, shadow maps, volumetric textures, double-sided stencil buffers, and 4 pixel pipes;Integrated VGA Controller; Integrated 400 MHz RAMDAC; 333 MHz Controller Clock Speed
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536

Specification	Value
Product type	PC
Motherboard chipset	Intel® 915G Express
Acoustic power emissions	IDLE (Fixed disk drive spinning): LWAd = 4.0 Bels; FIXED DISK (Random write): LWAd = 4.4 Bels; FILE COPY (HD to Floppy Disk): LWAd = 4.3 Bels; CD-ROM (Sequential Reads): LWAd = 5.5 Bels

Specification	Value
Modem type	No
Networking features	Broadcom 5782 PCI LAN Controller

Specification	Value
I/O ports	6 USB 2.0, 1 standard serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front I/O: 2 USB 2.0, headphone and microphone

Specification	Value
Expansion slots	2 full length, full height PCI slots; 1 full height (Normal Pinout) PCI Express x16 slot; 1 full-height (4.2"), length (13.4") PCI Express x1

Specification	Value
Power supply type	Passive PFC (115V/230V)
Power requirements	100 127 / 200 240 VAC, 50/60 Hz, 6A / 3A
Power consumption (typical)	300 W
Power management	Operating Voltage Range: 90 – 132 / 180 – 264 VAC; Rated Voltage Range: 100 – 127 / 200 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 6A / 3A; Heat Dissipation: Typical 341 btu/hr (86 kg-cal/hr), Maximum 1575 btu/hr (397 kg-cal/hr; Power

Specification	Value
Compatible operating systems	Microsoft Windows XP Professional
Bundled software	Norton Antivirus 2004
Driver LAN	Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft XP, Linux 2.2, Linux 2.4

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	27460
Processor package size	37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	Internal Amplified Speaker, SoundMax Digital AC97 Integrated Audio with Internal Speaker
Audio included	Internal Amplified Speaker

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	5 - 95%

Specification	Value
Acoustic pressure emissions	43 dB

Specification	Value
Security management description	Mechanical Hood Security Provision; Kensington Lock Support; Serial, Parallel, USB Enable/Disable; Removable Media Write / Boot Control; Power-On Password; Setup Password Mechanical Hood Security Provision; Kensington Lock Support; Serial, Parallel, USB Enable/Disable; Removable Media Write / Boot C

Specification	Value
Fault management	SMART Hard Drives, Fault & Pre-failure Notification; Memory Change Notification (Requires HP Client Manager Software); Thermal Notification (Requires HP Client Manager Software); Altiris Local Recovery; Surge Tolerant Full Ranging Power Supply; Ultra ATA Integrity Monitoring (CRC Checking)
Configuration management description	Instantly Available PC (Suspend to RAM - S3); ROM Based F10 Setup; Remote System Installation via F12 (PXE) (Remote Boot from Server); System/Emergency ROM Flash Recovery with Video; BIOS Smart Card Support; Auto Setup when New Hardware Installed; Serial, Parallel, USB, Audio, Network, Enable/Disabl
Drive bays	(2) 3.5-in
Model availability	Built to order, allow at least 2-3 weeks
