Compaq dc7900 Ultra-slim Desktop PC (ENERGY STAR)
Model Compaq dc7900 Ultra-slim Desktop PC (ENERGY STAR)Part no. NA664ET#ABU?L1945WVEAN 884420290605
134 specifications
- ProcessorIntel® Core™2 Duo
- Memory2 GB
- Storage160 GB
- GraphicsIntel® GMA 4500M
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 4500M
- Type
- PC
- OS
- Windows Vista Business
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc7900 Ultra-slim Desktop PC (ENERGY STAR)
- Part numbers
- NA664ET#ABU?L1945WV, FS489AW#ABH, FS490AW, FS489AW, FU039ET#UUZ#*B6, NA664ET#ABU?L2208W +34 more
- EAN / UPC
- 884420290605, 884420291480, 884420291497, 884420291503 +56 more
- Also known as
- HP Compaq dc7900 Ultra-slim Desktop PC (ENERGY STAR) Intel® Core™2 Duo E8400 2 GB DDR2-SDRAM 160 GB Intel® GMA 4500M Windows Vista Business
Specifications
134 specifications in 23 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E8400 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 3 GHz |
| Processor cache | 6 MB |
| Processor cache type | L2 |
| Processor front side bus | 1333 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core 2 Duo E8000 Series |
| Processor codename | Wolfdale |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 72.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 410 M |
| Processing Die size | 107 mm² |
| CPU multiplier (bus/core ratio) | 9 |
| Stepping | E0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 800 MHz |
| Memory upgrade | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD Super Multi |
| HDD capacity | 160 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Maximum HDD capacity | 250 GB |
| Minimum storage drive space | 80 GB |
| Floppy drive installed | No |
| Storage drive controller | SATA 3.0 Gb/s |
| Storage drive type | 160 GB 7200 rpm SATA 3.0 Gb/s NCQ, Smart IV |
| HDD controller type | SATA (7200 rpm) |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 4500M |
| On-board graphics card model | Not available |
| Graphics card family | Intel |
| Video card features | Integrated Intel Graphics Media Accelerator 4500 |
| Video adapter, bus | PCI Express x16 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |

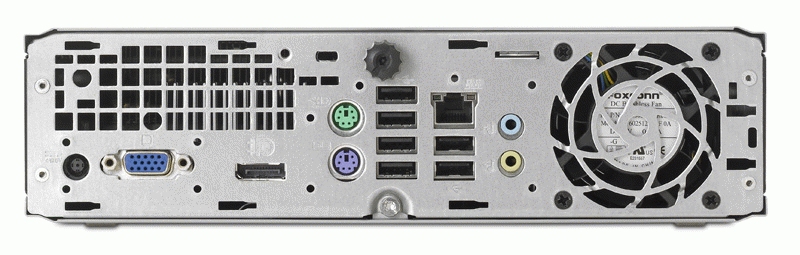

| I/O ports | 8 USB 2.0; 1 microphone in; 1 audio in; 1 audio out; 1 DisplayPort; 1 RJ-45; 2 PS/2; 1 VGA |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x mini PCI |
Power
| Specification | Value |
|---|---|
| Power supply type | 135W External 87% High Efficiency Active PFC |
| Power requirements | 135W 87% efficient external power supply – active PFC |
| Power supply | 135 W |
| Power consumption (typical) | 135 W |
Design
| Specification | Value |
|---|---|
| Ergonomics | Tower stand |
| Internal drive bays | 1 x 2.5" |
| Country of origin | China |
| Upgrade type | Windows Vista capable |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Applications supported | Windows Vista Premium ready |
| Bundled software | On some models only (not included with FreeDOS): HP ProtectTools Security Software Suite Version 4.0, HP Power Manager, HP Firefox Virtual Browser, HP Backup and Recovery Manager, HP Insight Diagnostics Software (available via HP Backup and Recovery Manager), Computer Setup Utility, McAfee AntiVirus |
| Driver LAN | Microsoft Windows Vista, Microsoft Windows XP |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 45 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 33910 |
| Processor code | SLB9J |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD ADI1884 |
| Audio included | Integrated HD audio with ADI1884 codec, internal PC speaker |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | 9144 |
| Operating temperature (T-T) | 50 - 95 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 251.5 mm |
| Depth | 254 mm |
| Height | 66 mm |
| Weight | 3.1 kg |
| Size (imperial) | 25.1 cm (9.9") |
| Weight (imperial) | 7.0 lb |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Certificates
| Specification | Value |
|---|---|
| Certification | ENERGY STAR qualified; EPEAT Gold; 87% efficient power supply |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | PS/2 2-button optical scroll mouse |
| Keyboard type | PS/2 standard keyboard |
Multimedia
| Specification | Value |
|---|---|
| Multimedia | Integrated High Definition audio with ADI1884 codec (all ports are stereo) |
Features
| Specification | Value |
|---|---|
| Security management description | HP ProtectTools Security Software Suite; Embedded TPM 1.2 compliant security module (TPM module disabled where use is restricted by law); TPM Pre-Boot Authentication (via BIOS); Smartcard Pre-boot Authentication (via BIOS); Stringent Security (via BIOS - must be enabled); SATA port disablement (via |
Other features
| Specification | Value |
|---|---|
| Security features | Kensington Lock, HP 2008 (SFF) Wall Mount/Security Sleeve |
| TV tuner integrated | No |
| Drive bays | 1 - slimline 1 – 2.5-in |
