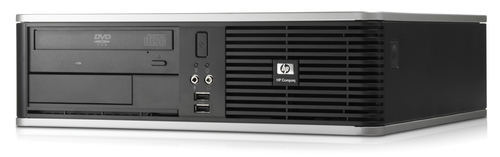

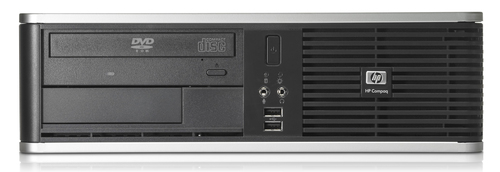

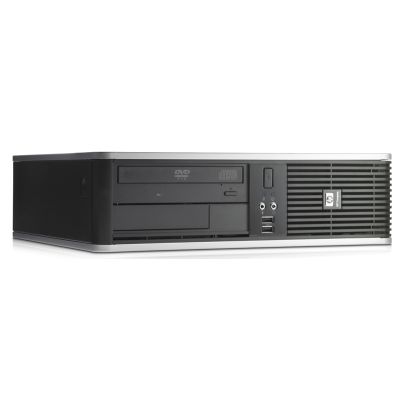

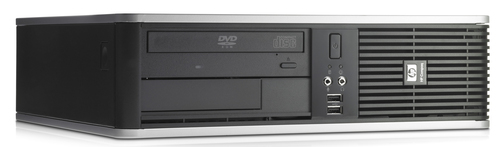

Compaq dc7800p Intel Core™2 Duo Processor E6750 2G/160G DVD+/-RW WVST Bus Small Form Factor PC

Model Compaq dc7800p Intel Core™2 Duo Processor E6750 2G/160G DVD+/-RW WVST Bus Small Form Factor PCPart no. GQ650AWEAN 883585345236

109 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Compaq dc7800p Intel Core™2 Duo Processor E6750 2G/160G DVD+/-RW WVST Bus Small Form Factor PC
Part number: GQ650AW
EAN / UPC: 883585345236, 883585326730, 883585344932, 883585344949 +16 more
Also known as: HP Compaq dc7800p Intel Core™2 Duo Processor E6750 2G/160G DVD+/-RW WVST Bus Small Form Factor PC Intel® Core™2 Duo 2 GB DDR2-SDRAM Windows Vista Business

109 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E6750
Processor cores	2
Processor threads	2
Processor frequency	2.66 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E6000 Series
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	72 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	8
Stepping	G0
ECC supported by processor	No
Processor technology	Intel vPro

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM

Specification	Value
Maximum graphics card memory	0.256 GB
Video card features	3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; integrated 400 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color
Video adapter, bus	PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536

Specification	Value
Product type	PC

Specification	Value
Modem type	No
Networking features	Integrated Intel 82566DM Gigabit Network Connection

Specification	Value

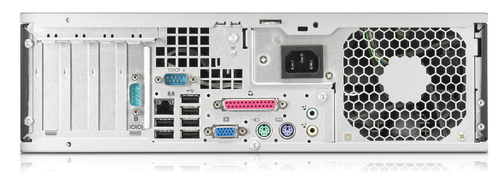

I/O ports	Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0, audio ports
Rear ports note	6 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 RJ-45; 1 external VGA monitor; 1 audio in; 1 audio out

Specification	Value
Expansion slots	1 low-profile PCI, 2 full-height PCI (optional), 1 low-profile PCI Express x16, 2 low-profile PCI Express x1

Specification	Value
Power supply type	240W 80 Plus Active PFC
Power requirements	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC (80% High Efficiency) Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; Rated Input Current 80 Plu
Power consumption (typical)	240 W
Power management	Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current: 4.0 A; Rated Input Current 80 Plus: 3.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation: Typical 198 btu/hr (50

Specification	Value
Country of origin	China
Upgrade type	Windows Vista capable

Specification	Value
Operating system installed	Windows Vista Business
Applications supported	Windows Vista Premium ready
Compatible operating systems	Genuine Windows XP Home 32; Genuine Windows Vista Enterprise 32; Genuine Windows Vista Enterprise 64
Bundled software	On some models only (not included with FreeDOS): HP ProtectTools Security Solutions, HP OpenView Configuration Management Solutions Agent, HP Backup and Recovery Manager, HP Insight Diagnostics (available via HP Backup and Recovery Manager), HP Client Foundation Suite (HP Client Manager, HP Systems
Driver LAN	Microsoft Windows Vista, Microsoft Windows XP, Microsoft Windows 2000

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	30784
Processor code	SLA9V
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker
Audio included	Integrated High Definition audio with ADI1884 codec, 3D audio compliant with AC'97 Rev. 2.3, internal PC speaker

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	5 - 90%

Specification	Value
Certification	ENERGY STAR qualified; EPEAT Gold; 80% efficient power supply

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse
Keyboard type	HP PS/2

Specification	Value
Multimedia	Integrated High Definition audio with ADI1884 codec (all ports are stereo)

Specification	Value
Manageability features	Intel vPro technology enabled, helps to lower IT costs and simplify manageability
Security management description	Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader
