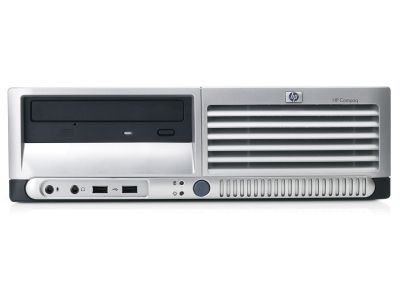

Compaq dc7700 PD 915 2x256M/80G DVD-ROM WXP Pro Small Form Factor PC

Model Compaq dc7700 PD 915 2x256M/80G DVD-ROM WXP Pro Small Form Factor PCPart no. RJ818AW#ABH

129 specifications

ProcessorIntel® Pentium® D
Memory0.5 GB
Storage80 GB
TypePC
OSWindows XP Professional
Weight8.85 kg

See all specifications

Overview

Processor: Intel® Pentium® D
Memory: 0.5 GB
Storage: 80 GB
Type: PC
OS: Windows XP Professional
Weight: 8.85 kg

Brand: HP
Category: PCs/Workstations
Model: Compaq dc7700 PD 915 2x256M/80G DVD-ROM WXP Pro Small Form Factor PC
Part number: RJ818AW#ABH
Also known as: HP Compaq dc7700 PD 915 2x256M/80G DVD-ROM WXP Pro Small Form Factor PC Intel® Pentium® D 0.5 GB DDR2-SDRAM 80 GB Windows XP Professional SFF

Specifications

129 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® D
Processor model	915
Processor cores	2
Processor threads	2
Processor frequency	2.8 GHz
Processor cache	4 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Pentium D 900 Series
Processor codename	Presler
Thermal Design Power (TDP)	95 W
Tcase	63.4 °C
Number of processors installed	1
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	376 M
Processing Die size	162 mm²
CPU multiplier (bus/core ratio)	14
ECC supported by processor	No

Memory

Specification	Value
Internal memory	0.5 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB
Memory slots	4x DIMM
Memory clock speed	667 MHz
Memory upgrade	4 GB
Standard memory capacity	512 MB

Storage

Specification	Value
Total storage capacity	80 GB
Optical drive type	DVD-ROM
HDD interface	SATA
HDD speed	7200 RPM
Storage drive controller	Serial ATA (1.5/3.0 Gb/s)
Disk subsystem controller	Serial ATA 3.0 Gb/s
Diskette drive	Optional N

Graphics

Specification	Value
Graphics card RAMDAC	400 MHz
Video card features	3D/2D Controller (Microsoft DirectX 9), VGA integrated controller, RAMDAC integrated (400 MHz) Intel Graphics Media Accelerator 3000 Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536 3D/2D Controller (Microsoft DirectX 9), VG
Video adapter, bus	PCI Express x16, PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Modem type	No
Networking features	Intel 82566DM Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	1
I/O ports	Rear: 6 USB 2.0, 1 optional serial port, 1 optional parallel port, 1 optional DVI graphics port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, Front: 2 USB 2.0, headphone and microphone
Rear ports	6 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 audio in; 1 audio out; 1 RJ-45; 1 external VGA monitor

Expansion slots

Specification	Value
Expansion slots	2x low-profile PCI 1x low-profile PCI Express x1 1x low-profile PCI Express x16

Power

Specification	Value
Power supply type	240W power supply - active PFC
Power requirements	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC
Power supply	240 W
Power supply input voltage	100-240 V
Power supply input frequency	50 - 60 Hz
Power consumption (typical)	240 W

Design

Specification	Value
Chassis type	SFF
Cable lock slot	Yes
Cable lock slot type	Kensington
External drive bays	1x 5.25"; 1x 3.5"
Internal drive bays	1x 3.5"
Country of origin	China
Upgrade type	Windows Vista capable

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	HP Protect Tools Security Software Suite HP Client Manager Software HP Open View Configuration Management Altiris Deployment Solution Symantec Antivirus 10.0 (trial) HP Insight Diagnostics Software
Driver LAN	Microsoft 2000, Microsoft XP

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	27515
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio +Realtek ALC262 HDA Codec
Audio included	Integrated High Definition audio with Realtek ALC262 High Definition audio codec

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 95 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	35 - 80%
Storage relative humidity (H-H)	5 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	5 - 90%
Maximum operating temperature range (T-T)	10 - 90 °C

Weight & dimensions

Specification	Value
Width	337.8 mm
Depth	378.5 mm
Height	100.3 mm
Weight	8.85 kg
Size (imperial)	33.8 cm (13.3")
Weight (imperial)	17.18 lb

Keyboard

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse PS/2 2-Button scroll mouse, USB optical scroll mouse or PS/2 optical scroll mouse
Keyboard type	2004 standard PS/2

Multimedia

Specification	Value
Multimedia	Integrated High Definition audio with Realtek 2 channel ALC262 codec (all ports are stereo)

Features

Specification	Value
Security management description	Embedded TPM1.2 (except for Russia) with optional HP ProtectTools, Embedded Security software

Other features

Specification	Value
Security features	Hood Cover Security Loop HP Desktop Security Lock 1.2 TPM Chip
Drive bays	1 internal 3.5 inch 1 external 5.25 inch, 1 external 3.5 inch
UNSPSC-code	43211507
