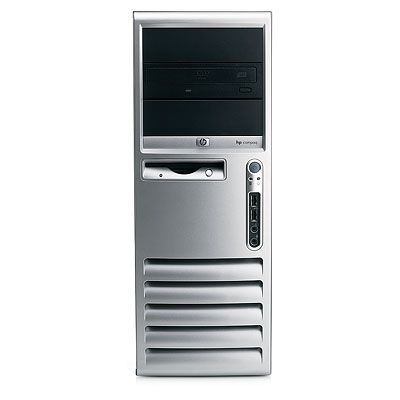

Compaq dc7700 Intel Core™2 Duo Processor E6300 2x512M/80G DVD/CD-RW WXP Pro Convertible Minitower PC
Model Compaq dc7700 Intel Core™2 Duo Processor E6300 2x512M/80G DVD/CD-RW WXP Pro Convertible Minitower PCPart no. RG991AW#ABH
131 specifications
- ProcessorIntel® Core™2 Duo
- Memory1 GB
- Storage160 GB
- TypePC
- OSWindows XP Professional
- Weight14.7 kg
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 1 GB
- Storage
- 160 GB
- Type
- PC
- OS
- Windows XP Professional
- Weight
- 14.7 kg
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc7700 Intel Core™2 Duo Processor E6300 2x512M/80G DVD/CD-RW WXP Pro Convertible Minitower PC
- Part number
- RG991AW#ABH
- Also known as
- HP Compaq dc7700 Intel Core™2 Duo Processor E6300 2x512M/80G DVD/CD-RW WXP Pro Convertible Minitower PC Intel® Core™2 Duo 1 GB DDR2-SDRAM 160 GB Windows XP Prof
Specifications
131 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E6300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.86 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 61.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 167 M |
| Processing Die size | 111 mm² |
| CPU multiplier (bus/core ratio) | 7 |
| Stepping | R0 |
| ECC supported by processor | No |
| Cache external | 2048 KB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 0.5 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 667 MHz |
| Memory upgrade | 4 GB |
| Standard memory capacity | 1 MB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD-ROM |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Storage drive controller | Serial ATA I/II |
| Disk subsystem controller | Serial ATA 3.0 Gb/s |
| Diskette drive | Optional N |
Graphics
| Specification | Value |
|---|---|
| Graphics card RAMDAC | 400 MHz |
| Maximum graphics card memory | 0.128 GB |
| Video card features | 3D/2D Controller (Microsoft DirectX 9), VGA integrated controller, RAMDAC integrated (400 MHz) Intel Graphics Media Accelerator 3000 Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536 3D/2D Controller (Microsoft DirectX 9), VG |
| Video adapter, bus | PCI Express x16, PCI Express x16 |
| Video card resolution | Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 85Hz at 2048x1536 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Modem type | No |
| Networking features | Intel 82566DM Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
| I/O ports | Rear: 6 USB 2.0, 1 standard serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out, Front: 2 USB 2.0, headphone and microphone Rear: 6 USB 2.0, 1 standard serial port, 1 optional serial port, 1 parallel port, 2 PS/2, 1 |
| Rear ports | 6 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 audio in; 1 audio out; 1 microphone in; 1 RJ-45; 1 external VGA monitor |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2x Full-height PCI 1x Full-height PCI Express x1 1x Full-height PCI Express x16 |
Power
| Specification | Value |
|---|---|
| Power supply type | 365W power supply - active PFC |
| Power requirements | Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC |
| Power supply | 365 W |
| Power supply input voltage | 100-240 V |
| Power supply input frequency | 50 - 60 Hz |
| Power consumption (typical) | 365 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| External drive bays | 3x 5.25"; 1x 3.5" |
| Internal drive bays | 2x 3.5" |
| Country of origin | China |
| Upgrade type | Windows Vista capable |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows XP Professional |
| Applications supported | Windows Vista Premium ready |
| Bundled software | HP Protect Tools Security Software Suite HP Client Manager Software HP Open View Configuration Management Altiris Deployment Solution Symantec Antivirus 10.0 (trial) HP Insight Diagnostics Software |
| Driver LAN | Microsoft 2000, Microsoft XP |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27248 |
| Processor code | SLGW2 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio + Realtek ALC262 |
| Audio included | Integrated High Definition audio with Realtek ALC262 High Definition audio codec |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 10 - 90% |
| Non-operating altitude | 9144 |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 167.6 mm |
| Depth | 452.1 mm |
| Height | 448.3 mm |
| Weight | 14.7 kg |
| Size (imperial) | 16.8 cm (6.6") |
| Weight (imperial) | 31.18 lb |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | HP PS/2 2-Button Optical Scroll Mouse PS/2 2-Button scroll mouse, USB optical scroll mouse or PS/2 optical scroll mouse |
| Keyboard type | 2004 standard PS/2 |
Multimedia
| Specification | Value |
|---|---|
| Multimedia | Integrated High Definition audio with Realtek 2 channel ALC262 codec (all ports are stereo) |
Features
| Specification | Value |
|---|---|
| Security management description | Embedded TPM1.2 (except for Russia) with optional HP ProtectTools, Embedded Security software |
Other features
| Specification | Value |
|---|---|
| Security features | Hood Cover Security Loop HP Desktop Security Lock Integrated 1.2 TPM |
| Drive bays | 2 internal 3.5 inch 3 external 5.25 inch, 1 external 3.5 inch |
| UNSPSC-code | 43211507 |
