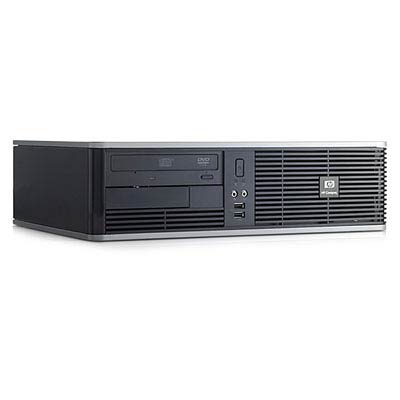

Compaq dc5850 Small Form Factor PC
Model Compaq dc5850 Small Form Factor PCPart no. KV550ET#ABU? L1965EAN 883585843022
74 specifications
- ProcessorAMD Athlon
- Memory2 GB
- Storage160 GB
- GraphicsAMD Radeon HD 3100
- TypePC
- OSWindows Vista Business
Overview
- Processor
- AMD Athlon
- Memory
- 2 GB
- Storage
- 160 GB
- Graphics
- AMD Radeon HD 3100
- Type
- PC
- OS
- Windows Vista Business
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc5850 Small Form Factor PC
- Part numbers
- KV550ET#ABU? L1965, AM500AW#ABH, AL194AW, AL195AW#ABH, AL196AW, KV552ET#MLK +34 more
- EAN / UPC
- 883585843022, 883585839308, 883585839339, 883585839353 +44 more
- Also known as
- HP Compaq dc5850 Small Form Factor PC AMD Athlon 4450B 2 GB DDR2-SDRAM 160 GB AMD Radeon HD 3100 Windows Vista Business
Specifications
74 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Athlon |
| Processor model | 4450B |
| Processor frequency | 2.3 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 1 GB |
| Memory clock speed | 800 MHz |
| Minimum RAM | 512 MB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD Super Multi |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
| Storage drive controller | SATA 3.0Gb/s NCQ SMART IV |
| Diskette drive | Optional |
| Storage drive type | 160 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | AMD Radeon HD 3100 |
| Maximum graphics card memory | 0.256 GB |
| Video card features | 3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX10, DirectXVA, VMR9, GDI/GDI+; OpenGL 2.0 1.4.; Integrated VGA Controller; integrated 350 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum C |
| Video adapter, bus | PCI Express x16 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD 780V |
| Acoustic power emissions | IDLE (Fixed disk drive spinning): LWAd = 3.8 Bels; FIXED DISK (Random write): LWAd = 3.9 Bels; OPTICAL DRIVE (Sequential Reads): LWAd = 5.2 Bels |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |

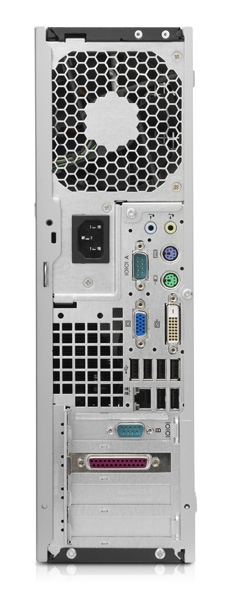

| I/O ports | Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 optional parallel port, 2 PS/2, 1 RJ-45, 1 VGA, 1 DVI-D, audio in/out; Front: 2 USB 2.0, audio ports |
| Rear ports note | 6 USB 2.0; 2 PS/2; 1 serial; 1 serial (optional 2nd); 1 parallel (optional); 1 audio out; 1 audio in; 1 RJ-45; 1 DVI-D |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| Expansion slots | 1 x PCI |
Power
| Specification | Value |
|---|---|
| Power supply type | 240W 80% efficient power supply - active PFC |
| Power requirements | 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz |
| Power consumption (typical) | 240 W |
Design
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| External drive bays | 1 x 5.25", 1 x 3.5" |
| Internal drive bays | 1 x 3.5" |
| Country of origin | China |
| Upgrade type | Windows Vista capable |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Applications supported | Windows Vista Premium ready |
| Compatible operating systems | FreeDOS |
| Bundled software | On some models only (not included with FreeDOS): HP ProtectTools Security Solutions, HP Backup and Recovery Manager, HP Insight Diagnostics (available via HP Backup and Recovery Manager), HP Software Agent, HP Total Care Advisor, HP Client Configuration Manager, HP Client Manager for Altiris, HP Sof |
| Driver LAN | Microsoft Windows XP, Microsoft Windows Vista, FreeDos, Linux |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
| Audio included | Integrated High Definition audio with ADI1884 codec, microphone and headphone front ports, line-out and line-in rear ports, multistreaming capable, internal PC speaker |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating altitude | 9144 |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 337 mm |
| Depth | 378 mm |
| Height | 100 mm |
| Weight | 7.6 kg |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | HP PS/2 2-Button Optical Scroll Mouse |
| Keyboard type | HP PS/2 Standard Keyboard |
Features
| Specification | Value |
|---|---|
| Security management description | Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader |
Other features
| Specification | Value |
|---|---|
| Security features | Kensington Lock |
| Drive bays | 1 external 5.25 inch, 1 external 3.5 inch 1 internal 3.5 inch |
