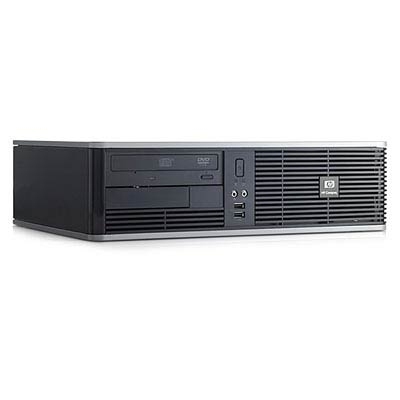

Compaq dc5800 SFF + L1950g
Model Compaq dc5800 SFF + L1950gPart no. NN494ET_KR145AT
102 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- ProcessorIntel® Pentium®
- Memory2 GB
- Storage250 GB
- GraphicsIntel® GMA 3100
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Processor
- Intel® Pentium®
- Memory
- 2 GB
- Storage
- 250 GB
- Graphics
- Intel® GMA 3100
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc5800 SFF + L1950g
- Part number
- NN494ET_KR145AT
- Also known as
- HP Compaq dc5800 SFF + L1950g Intel® Pentium® E5300 2 GB DDR2-SDRAM 250 GB Intel® GMA 3100 Windows Vista Business PC
Specifications
102 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | E5300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 2.6 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium E5000 Series for Desktop |
| Processor codename | Wolfdale |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 74.1 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 228 M |
| Processing Die size | 82 mm² |
| CPU multiplier (bus/core ratio) | 13 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 2 x 1 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | DVD Super Multi |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Storage drive controller | SATA 3.0Gb/s NCQ SMART IV |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Intel® GMA 3100 |
| Graphics card family | Intel |
| Video adapter, bus | PCI Express x16 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Optical drive
| Specification | Value |
|---|---|
| LightScribe | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
| Expansion slots | 1 x PCI |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| External drive bays | 1 x 5.25", 1 x 3.5" |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Contrast ratio (typical) | 800:1 |
| Display brightness | 300 cd/m² |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display | Active Matrix TFT, TN |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | 2 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 35300 |
| Processor code | SLB9U |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 337 mm |
| Depth | 378 mm |
| Height | 100 mm |
| Weight | 8.1 kg |
