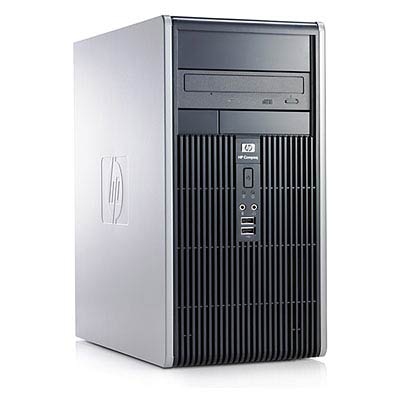

Compaq dc5800 Intel Core™2 Duo Processor E8400 2G/250G DVD+/-RW WVST Bus Microtower PC

Model Compaq dc5800 Intel Core™2 Duo Processor E8400 2G/250G DVD+/-RW WVST Bus Microtower PCPart no. KK377ET#ABH

123 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: Compaq dc5800 Intel Core™2 Duo Processor E8400 2G/250G DVD+/-RW WVST Bus Microtower PC
Part number: KK377ET#ABH
Also known as: HP Compaq dc5800 Intel Core™2 Duo Processor E8400 2G/250G DVD+/-RW WVST Bus Microtower PC Intel® Core™2 Duo 2 GB DDR2-SDRAM 250 GB Intel® GMA 3100 Windows Vista

123 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E8400
Processor cores	2
Processor threads	2
Processor frequency	3 GHz
Processor cache	6 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E8000 Series
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	72.4 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	9
Stepping	E0
ECC supported by processor	No

Specification	Value
Discrete graphics card model	Intel® GMA 3100
On-board graphics card model	Not available
Video card features	3D/2D Controller: support is fully compliant with Microsoft standard API such as Microsoft DirectX9, DirectXVA, VMR9, GDI/GDI+; OpenGL 1.4.; Integrated VGA Controller; integrated 350 MHz RAMDAC; 400 MHz Controller Clock Speed; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color
Video adapter, bus	PCI Express x16
Video card resolution	Maximum Vertical Refresh Rate: 85 Hz at up to 1920x1440, 75 Hz at 2048x1536

Specification	Value
Product type	PC
Acoustic power emissions	IDLE (Fixed disk drive spinning): LWAd = 3.8 Bels; FIXED DISK (Random write): LWAd = 3.9 Bels

Specification	Value
LightScribe	Yes

Specification	Value
Networking features	Gigabit Ethernet

Specification	Value
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	2
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	0
I/O ports	Rear: 6 USB 2.0, 1 serial port, 1 optional serial port, 1 optional parallel port, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0, audio ports

Specification	Value
Expansion slots	1 full-height PCI, 1 full-height PCI Express x16, 2 full-height PCI Express x1

Specification	Value
Power requirements	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC optional (External 80% High Efficiency) Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current 80 Plus: 2.5 A;
Power supply	300 W
Power consumption (typical)	300 W
Power management	Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current 80 Plus: 2.5 A; Current Leakage (NFPA 99): < 275 µA; System Heat Dissipation 80 Plus: Typical 315 btu/hr (79 kg-cal/hr), Maximum

Specification	Value
Operating system installed	Windows Vista Business
Applications supported	Windows Vista Premium ready
Compatible operating systems	FreeDOS
Bundled software	HP ProtectTools Security Solutions, HP Backup & Recovery Manager, HP Insight diagnose, HP Software Agent, HP Total Care Advisor, HP Client Configuration Manager, HP Client Manager - Altiris, HP SoftPaq Download Manager, HP Client Catalog - Microsoft SMS, HP Systems Software Manager, Altiris Out-of-B
Driver LAN	Microsoft Windows XP, Microsoft Windows Vista, FreeDos, Linux

Specification	Value
Display included	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	33910
Processor code	SLB9J
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Audio system	High Definition Audio
Audio included	Integrated High Definition audio with ADI1884 codec, microphone and headphone front ports, line-out and line-in rear ports, multistreaming capable, internal PC speaker

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Relative humidity	10 - 90%
Non-operating altitude	9144
Non-operating relative humidity (non-condensing)	5 - 90%

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse
Keyboard type	HP PS/2 Standard Keyboard

Specification	Value
Security management description	Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP Business PC Security Lock, HP USB Biometric Fingerprint Reader
