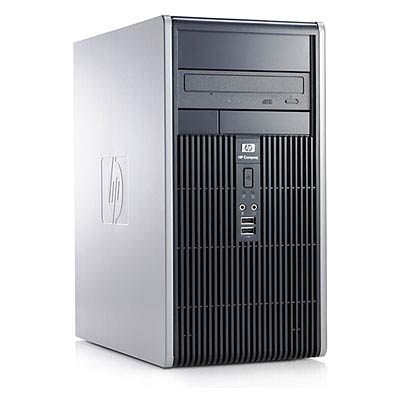

Compaq dc5800 Base Model Microtower PC

Model Compaq dc5800 Base Model Microtower PCPart no. AJ408AV

103 specifications

ProcessorIntel® Core™2 Duo
Memory1 GB
Storage250 GB
GraphicsIntel® GMA 3100
TypePC
OSWindows Vista Business

See all specifications

Overview

Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 250 GB
Graphics: Intel® GMA 3100
Type: PC
OS: Windows Vista Business

Brand: HP
Category: PCs/Workstations
Model: Compaq dc5800 Base Model Microtower PC
Part numbers: AJ408AV, AJ408AV#ABD#*SP1, AJ408AV#ABD#*KIT1, AJ408AV#ABD#*KIT2, AJ408AV#562
Also known as: HP Compaq dc5800 Base Model Microtower PC Intel® Core™2 Duo E4600 1 GB DDR2-SDRAM 250 GB Intel® GMA 3100 Windows Vista Business

Specifications

103 specifications in 21 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E4600
Processor cores	2
Processor threads	2
Processor frequency	2.4 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E4000 Series
Processor codename	Conroe
Thermal Design Power (TDP)	65 W
Tcase	73.3 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	167 M
Processing Die size	111 mm²
CPU multiplier (bus/core ratio)	12
Stepping	M0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Maximum internal memory	8 GB
Internal memory type	DDR2-SDRAM
Minimum RAM	512 MB

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	DVD-ROM
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card model	Intel® GMA 3100

Performance

Specification	Value
Product type	PC

Network

Specification	Value
Modem type	2006 Agere PCI 56K International SoftModem (full height)
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
PS/2 ports quantity	2
Serial ports quantity	1
Parallel ports quantity	0
I/O ports	2 USB 2.0; 1 microphone in; 1 headphone/line-out
Rear ports	6 USB 2.0; 2 PS/2; 1 serial; 1 serial (optional 2nd); 1 parallel (optional); 1 external VGA monitor; 1 audio out; 1 audio in; 1 RJ-45
Rear ports note	6 USB 2.0; 2 PS/2; 1 serial; 1 serial (optional 2nd); 1 parallel (optional); 1 external VGA monitor; 1 audio out; 1 audio in; 1 RJ-45

Expansion slots

Specification	Value
Expansion slots	1 full-height PCI; 2 full-height PCIe x1; 1 full-height PCIe x16

Power

Specification	Value
Power requirements	300W power supply - passive PFC; 300W 80 PLUS power supply - active PFC
Power supply	300 W
Power consumption (typical)	300 W

Design

Specification	Value
Chassis type	Micro Tower
Country of origin	China

Software

Specification	Value
Operating system installed	Windows Vista Business
Bundled software	HP ProtectTools Security Solutions, HP Backup & Recovery Manager, HP Insight Diagnostics, HP Software Agent, HP Total Care Advisor, HP Client Configuration Manager, HP Client Manager - Altiris, HP SoftPaq Download Manager, HP Client Catalog - Microsoft SMS, HP Systems Software Manager, Computer Setu
Certified operating system	Red Hat Enterprise Linux; SUSE Linux Enterprise Desktop 10

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	32242
Processor code	SLA94
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	High Definition Audio

Operational conditions

Specification	Value
Non-operating altitude	9144

Weight & dimensions

Specification	Value
Width	176.5 mm
Depth	427.9 mm
Height	377.1 mm
Weight	8.9 kg
Weight (imperial)	19.75 lb

Certificates

Specification	Value
Certification	ENERGY STAR qualified; EPEAT Gold; and 80% efficient power supply configurations available.

Keyboard

Specification	Value
Pointing device	PS/2 2-button optical scroll mouse; USB 2-button optical scroll mouse; USB 2-button laser mouse
Keyboard type	PS/2 standard keyboard; USB standard keyboard

Multimedia

Specification	Value
Multimedia	Integrated High Definition audio with Realtek 2 channel ALC260 codec (all ports are stereo)

Features

Specification	Value
Security management description	1.2 TPM Embedded Security Chip (TPM module disabled where use is restricted by law); HP Desktop Security lock kit (lock and cable); Security cable with Kensington lock; Optional HP ProtectTools security software suite; Optional UsB Port Disable at factory (user configurable via BIOS)
