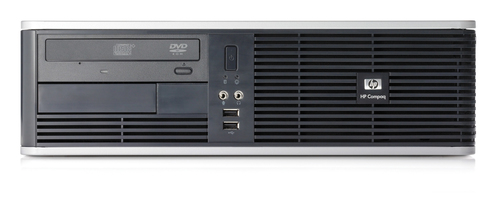

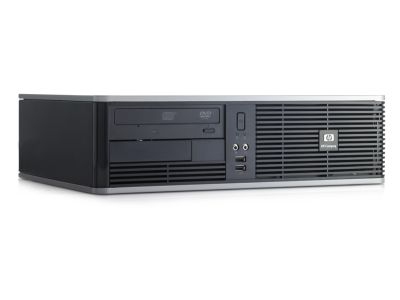

Compaq dc5700 Pentium E2160 1G/160G DVD+/-RW WVST Bus Small Form Factor PC
Model Compaq dc5700 Pentium E2160 1G/160G DVD+/-RW WVST Bus Small Form Factor PCPart no. GH382EAEAN 883585437139
118 specifications
- ProcessorIntel® Itanium®
- Memory1 GB
- Storage160 GB
- GraphicsIntel® GMA 3000
- TypePC
- OSWindows Vista Business
Overview
- Processor
- Intel® Itanium®
- Memory
- 1 GB
- Storage
- 160 GB
- Graphics
- Intel® GMA 3000
- Type
- PC
- OS
- Windows Vista Business
- Brand
- HP
- Category
- PCs/Workstations
- Model
- Compaq dc5700 Pentium E2160 1G/160G DVD+/-RW WVST Bus Small Form Factor PC
- Part number
- GH382EA
- EAN / UPC
- 883585437139, 883585437115, 883585437122, 883585437146 +1 more
- Also known as
- HP Compaq dc5700 Pentium E2160 1G/160G DVD+/-RW WVST Bus Small Form Factor PC Intel® Itanium® 1 GB DDR2-SDRAM 160 GB Intel® GMA 3000 Windows Vista Business SFF
Specifications
118 specifications in 20 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Itanium® |
| Processor model | E2160 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.8 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor front side bus | 800 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium E2000 Series for Desktop |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 73.3 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 105 M |
| Processing Die size | 77 mm² |
| CPU multiplier (bus/core ratio) | 9 |
| Stepping | M0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Maximum internal memory | 4 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 1 GB |
| Memory upgrade | 4 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 160 GB |
| Optical drive type | DVD±RW |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Storage drive controller | SATA 3.0 Gb/s |
| Disk subsystem controller | SMART III Serial ATA 3.0 GB/s |
| Diskette drive | Optional |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Intel® GMA 3000 |
| Maximum graphics card memory | 0.256 GB |
| Video card features | RAMDAC: Integrated 400-MHz DAC; Controller Clock Speed: 667 MHz; Overlay Planes: One 16 bit video overlay plane; Max Color Depth: 32-bits/pixel; Maximum Vertical Refresh Rate 85 Hz; Multi-display Support: Support for one VGA and one DVI-D, in conjunction with an ADD2 card, clone and extended desktop |
| Video adapter, bus | No |
| Video card resolution | Maximum Vertical Refresh Rate: 85 Hz |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel 963Q Express |
Network
| Specification | Value |
|---|---|
| Modem type | No |
| Networking features | Broadcom NetXtreme Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
| I/O ports | Rear: 6 USB 2.0, 1 standard serial port, 1 optional serial port, 1 parallel, 2 PS/2, 1 RJ-45, 1 VGA, audio in/out; Front: 2 USB 2.0, headphone and microphone, Dual Color Diagnostic LEDs |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 PCI, 1 PCI Express x1, 1 SDVO/ ADD2 |
Power
| Specification | Value |
|---|---|
| Power requirements | Input voltage 90 – 264 VAC, ATX Power Supply – passive PFC (115v/230v line) |
| Power consumption (typical) | 240 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Country of origin | China |
| Upgrade type | Windows Vista capable |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Business |
| Applications supported | Windows Vista Premium ready |
| Bundled software | Computer Setup Utility, Diagnostics for Windows, Microsoft Internet Explorer, Symantec AntiVirus with 60 day Live Update Subscription, PDF Complete; Optional preloaded software, only for certain configurations: Microsoft Office 2007 Small Business Edition, Microsoft Office 2007 Basic, Microsoft Offi |
| Driver LAN | Microsoft 2000, Microsoft XP |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 29739 |
| Processor code | SLA8Z |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | Integrated High Definition audio with Realtek 2 channel ALC260 codec |
| Audio included | Integrated High Definition audio with Realtek 2 channel ALC260 codec |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Relative humidity | 5 - 90% |
| Non-operating relative humidity (non-condensing) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 393.7 mm |
| Depth | 392.9 mm |
| Height | 114.3 mm |
| Weight | 8.35 kg |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | HP PS/2 2-Button Optical Scroll Mouse PS/2 2-Button scroll mouse or PS/2 2-Button optical scroll mouse or 2-button USB scroll mouse |
| Keyboard type | 2004 standard PS/2 HP PS/2, USB Standard Keyboard, USB BG1650 2004 standard keyboard or HP USB Smartcard Keyboard |
Features
| Specification | Value |
|---|---|
| Security management description | Embedded TPM1.2 (except for Russia) with optional HP ProtectTools, Embedded Security software with BIOS Configuration (Serial, Parallel, USB Enable/Disable), Credential Manager, Smart Card Manager |
Other features
| Specification | Value |
|---|---|
| Security features | Kensington Cable Lock, Hood Cover Security Loop supported, Optional Keyed Security Lock, Integrated 1.2 TPM chip (except for Russia) (ProtectTools software optional) |
| Drive bays | 1 internal 3.5 inch 1 external 5.25 inch and 1 external 3.5 inch |
| UNSPSC-code | 43211507 |
