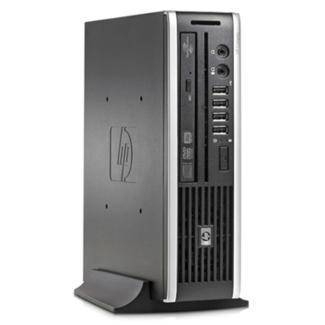

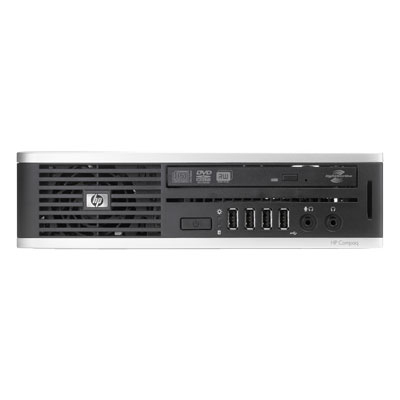

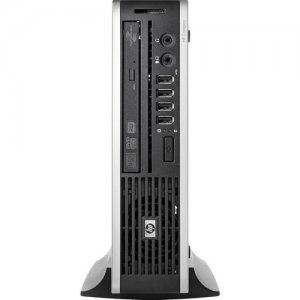

Compaq 8000 Elite Ultra-slim PC (ENERGY STAR)

Model Compaq 8000 Elite Ultra-slim PC (ENERGY STAR)Part no. AZ891AWEAN 884962758120

133 specifications

ProcessorIntel® Core™2 Duo
Memory2 GB
Storage250 GB
GraphicsIntel® GMA 4500M
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 250 GB
Graphics: Intel® GMA 4500M
Type: PC
OS: Windows 7 Professional

Brand: HP
Category: PCs/Workstations
Model: Compaq 8000 Elite Ultra-slim PC (ENERGY STAR)
Part number: AZ891AW
EAN / UPC: 884962758120, 884962737743, 884962755273, 884962755280 +16 more
Also known as: HP Compaq Elite Compaq 8000 Elite Ultra-slim PC (ENERGY STAR) Intel® Core™2 Duo E8400 2 GB DDR3-SDRAM 250 GB Intel® GMA 4500M Windows 7 Professional Black

Specifications

133 specifications in 23 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	E8400
Processor cores	2
Processor threads	2
Processor frequency	3 GHz
Processor cache	6 MB
Processor cache type	L2
Processor front side bus	1333 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo E8000 Series
Processor codename	Wolfdale
Thermal Design Power (TDP)	65 W
Tcase	72.4 °C
Processor socket	LGA 775 (Socket T)
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	9
Stepping	E0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	2x SO-DIMM
Memory clock speed	1333 MHz
Memory upgrade	16 GB

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	DVD Super Multi
Total HDDs capacity	250 GB
HDD capacity	250 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
Maximum HDD capacity	250 GB
Minimum storage drive space	160 GB
Floppy drive installed	No
Storage drive controller	SATA 3.0Gb/s
Storage drive type	250 GB 7200 rpm SATA 3.0 Gb/s 160 or 250 GB SATA 3.0GB/s with NCQ and Smart IV
HDD controller type	SATA (7200 rpm)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Intel® GMA 4500M
On-board graphics card model	Not available
Graphics card family	Intel
Video card features	3D/2D Controller: Microsoft DirectX 10 based with support for Pixel Shader 3.0; OpenGL 1.5 (OpenGL 2.0 available in a driver update).; Integrated VGA Controller; Integrated 350 MHz RAMDAC; Overlay Planes: Single overlay support with 5x3 filtering; Maximum Color Depth: 32 bits/pixel; Multi-display Su
Video adapter, bus	PCI Express x16

Performance

Specification	Value
Product type	PC

Optical drive

Specification	Value
LightScribe	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Networking features	Integrated Intel 82567LM Gigabit Network Connection

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	10
DisplayPorts quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	2
I/O ports	Rear: 6 USB 2.0, 2 PS/2, 1 RJ-45, 1 VGA, 1 DisplayPort, audio in/out; Front: 4 USB 2.0, audio ports

Expansion slots

Specification	Value
Expansion slots	1 mini PCIe

Power

Specification	Value
Power supply type	135 W external 87% efficient power supply - active PFC
Power requirements	Input voltage 90 – 264 / 100 – 240 VAC, 50/60 Hz, 47 – 63 Hz, active PFC (87% High Efficiency) Operating Voltage Range: 90 – 264 VAC; Rated Voltage Range: 100 – 240 VAC; Rated Line Frequency: 50/60 Hz; Operating Line Frequency Range: 47 – 63 Hz; Rated Input Current 87 Plus: 2.4 A; Current Leakage (N
Power supply	135 W

Design

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Professional
Compatible operating systems	Genuine Windows 7 Home Basic 32-bit, FreeDOS
Bundled software	On some models only (not included with FreeDOS): HP ProtectTools Security Suite, HP Software Management Agent, PDF Complete, HP Power Manager, HP Firefox Virtual Browser, HP Total Care Advisor, Computer Setup Utility, McAfee Anti-virus Trial version, Roxio Creator Business, Corel WinDVD Optional pre
Driver LAN	Microsoft Windows 7, Microsoft Windows Vista

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	33910
Processor code	SLB9J
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	Integrated HD audio with Realtek ALC261 codec, internal PC speaker
Audio included	Integrated HD audio with Realtek ALC261 codec, internal PC speaker

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Non-operating altitude	9144
Operating temperature (T-T)	50 - 95 °F

Weight & dimensions

Specification	Value
Width	251 mm
Depth	254 mm
Height	66 mm
Weight	3.07 kg
Size (imperial)	25.1 cm (9.9")
Weight (imperial)	6.75 lb

Packaging content

Specification	Value
Remote control included	No

Certificates

Specification	Value
Certification	ENERGY STAR qualified, EPEAT Gold and 87% efficient power supply

Keyboard

Specification	Value
Pointing device	HP PS/2 2-Button Optical Scroll Mouse
Keyboard type	HP PS/2 Standard Keyboard

Multimedia

Specification	Value
Multimedia	Integrated High Definition audio with Realtek 2 channel ALC261 codec

Features

Specification	Value
Manageability features	Integrated dual display standard; Long, stable lifecycle; Ultra-small, energy efficient design
Security management description	Integrated 1.2 TPM Embedded Security Chip (except for Russia), HP USB Smartcard Keyboard; Kensington Lock, Solenoid Hood Lock / Sensor, HP Business PC Security Lock

Other features

Specification	Value
Security features	Kensington Lock, Solenoid Hood Lock / Sensor, HP Business PC Security Lock
TV tuner integrated	No
Drive bays	1 Slimline Drive Bay, optional SD Card Reader 1 internal 6,4 cm (2.5")
