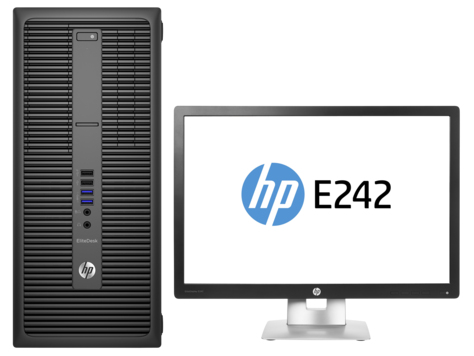

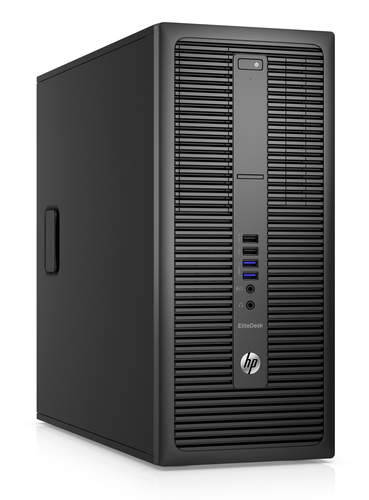

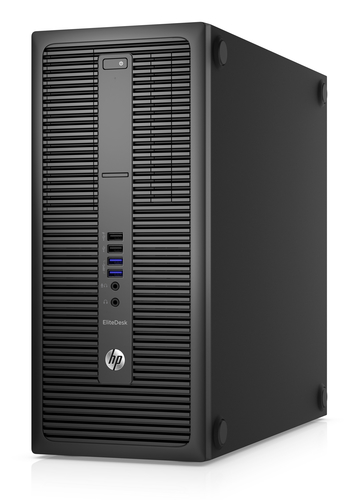

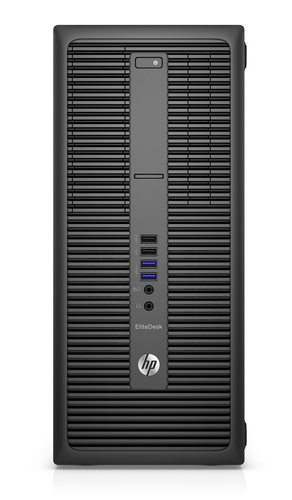

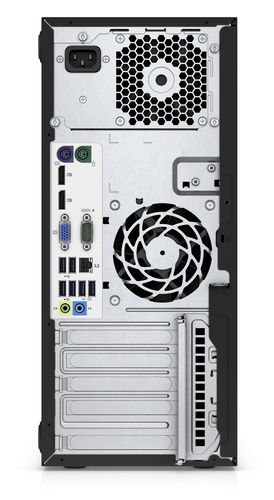

800 G2 MT + EliteDisplay E242
Model 800 G2 MT + EliteDisplay E242Part no. BP1G95EA
168 specifications
- Display61 cm (24")
- Resolution1920 x 1200 pixels
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage1.25 TB
- GraphicsNVIDIA® GeForce® GT 730
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1200 pixels
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 1.25 TB
- Graphics
- NVIDIA® GeForce® GT 730
- Brand
- HP
- Category
- PCs/Workstations
- Model
- 800 G2 MT + EliteDisplay E242
- Part number
- BP1G95EA
- Also known as
- HP EliteDesk 800 G2 MT + EliteDisplay E242 Intel® Core™ i7 i7-6700 8 GB DDR4-SDRAM 1.25 TB HDD+SSD NVIDIA® GeForce® GT 730 Windows 7 Professional Micro Tower PC
Specifications
168 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 6th gen Intel® Core™ i7 |
| Processor model | i7-6700 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI3 |
| FSB Parity | No |
| System bus rate | 8 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-6700 Desktop series |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 71 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 2x8, 1x8+2x4, 1x16 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Stepping | R0 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2133 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.25 TB |
| Optical drive type | DVD Super Multi |
| Storage media | HDD+SSD |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | SATA |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GT 730 |
| Discrete graphics card memory | 2 GB |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 530 |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 1912 |
| On-board graphics card OpenGL version | 4.4 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® Q170 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
| BD interface type | SATA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 2 |
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 280 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Number of 2.5" bays | 1 |
| Liquid cooling system | No |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 10 Pro |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 61 cm (24") |
| Full HD | Yes |
| Display resolution | 1920 x 1200 pixels |
| Native aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 88196 |
| Processor code | SR2BT |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, AVX 2.0, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2015C |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | DTS Studio Sound |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 425 mm |
| Height | 389 mm |
| Weight | 9.43 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Intel segment tagging | Enterprise |
