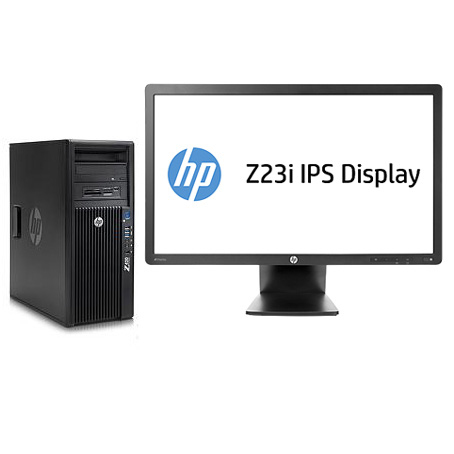

420 + Z23i + NVIDIA Quadro K600
Model 420 + Z23i + NVIDIA Quadro K600Part no. WM640ET#*KIT*
128 specifications
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Xeon® E5 Family
- Memory4 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Xeon® E5 Family
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- HP
- Category
- PCs/Workstations
- Model
- 420 + Z23i + NVIDIA Quadro K600
- Part numbers
- WM640ET#*KIT*, WM640ET+D7Q13AT+C2J92AT/933215
- Also known as
- HP 420 + Z23i + NVIDIA Quadro K600 Intel® Xeon® E5 Family E5-1603 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Mini Tower Workstation Black
Specifications
128 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E5 Family |
| Processor model | E5-1603 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor frequency | 2.8 GHz |
| Processor cache | 10 MB |
| Processor cache type | L3 |
| Bus type | QPI |
| FSB Parity | No |
| System bus rate | 0 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor codename | Sandy Bridge EP |
| Thermal Design Power (TDP) | 130 W |
| Tcase | 64 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011 (Socket R) |
| CPU multiplier (bus/core ratio) | 28 |
| Stepping | M1 |
| Maximum internal memory supported by processor | 375 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory bandwidth supported by processor (max) | 31.4 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 1600 MHz |
| ECC | Yes |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C602 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
| BD interface type | SATA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 3 |
| PCI Express x8 (Gen 2.x) slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Number of 5.25" bays | 3 |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 8.1 Pro |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | Yes |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 64600 |
| Processor code | SR0L9 |
| Processor package size | 52.5 x 45.0 mm |
| Supported instruction sets | AVX |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 177.8 mm |
| Depth | 445.2 mm |
| Height | 447.6 mm |
| Weight | 12.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | Yes |
