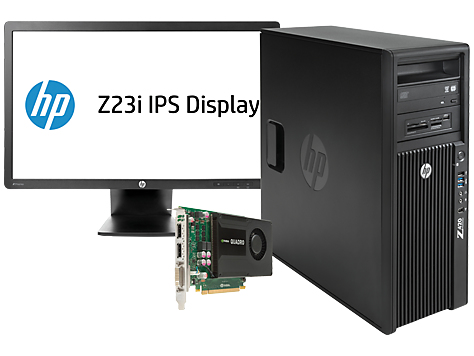

420 + Z23i + NVIDIA Quadro K2000

Model 420 + Z23i + NVIDIA Quadro K2000Part no. BWM639ET3-SE

129 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: 420 + Z23i + NVIDIA Quadro K2000
Part number: BWM639ET3-SE
Also known as: HP 420 + Z23i + NVIDIA Quadro K2000 Intel® Xeon® E5 Family E5-1620V2 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional Mini Tower Workstation Black

129 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-1620V2
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.7 GHz
Processor cache	10 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E5-1600 v2
Processor codename	Ivy Bridge EP
Thermal Design Power (TDP)	130 W
Tcase	70 °C
Maximum number of PCI Express lanes	40
PCI Express configurations	x4, x8, x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011 (Socket R)
Maximum internal memory supported by processor	256 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066,1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	59.7 GB/s
ECC supported by processor	Yes

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C602

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	2

Specification	Value
Number of 3.5" bays	3

Specification	Value
Power supply	600 W

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8.1 Pro

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75779
Processor package size	52.5 x 45.0 mm
Scalability	1S
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
