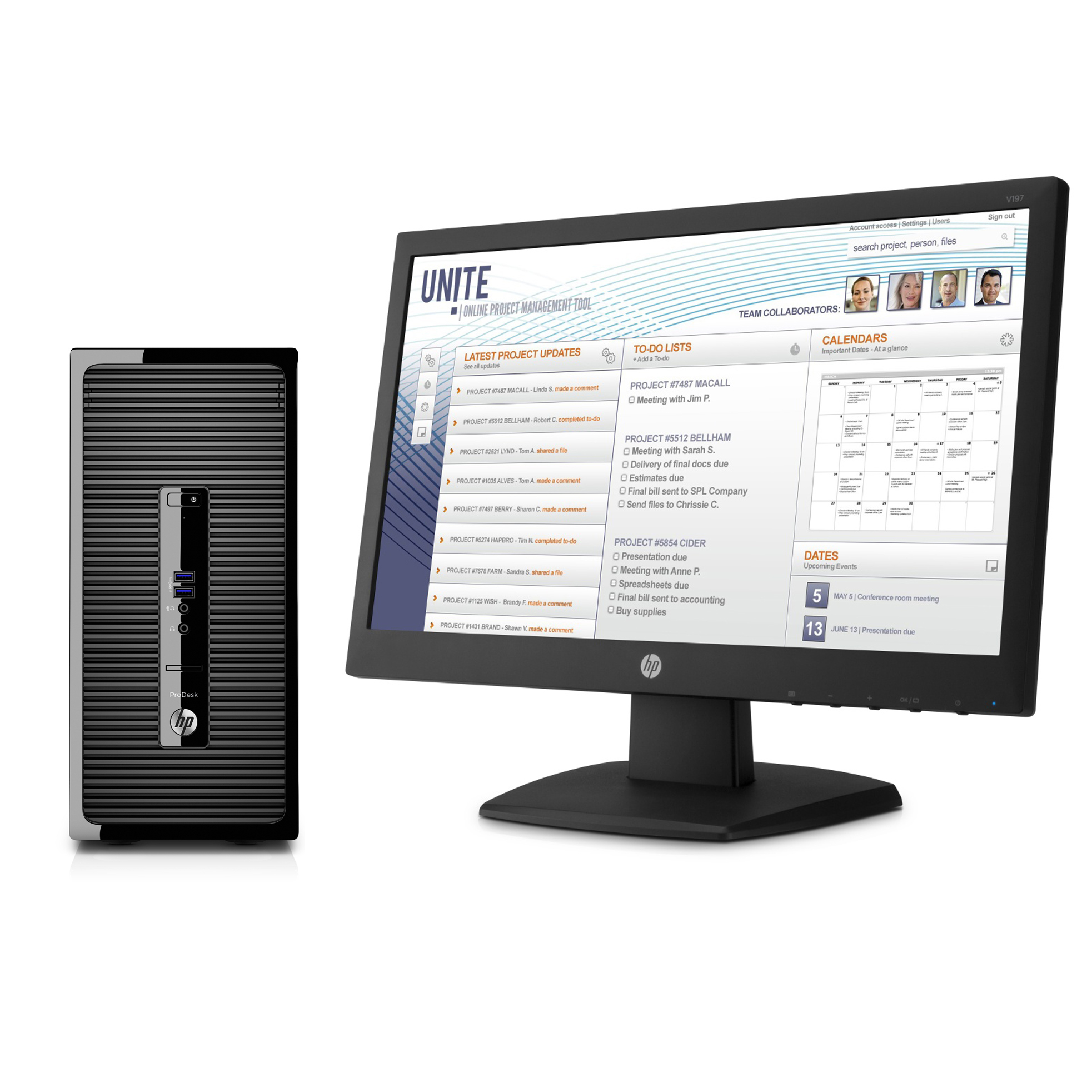

400 G3 MT + V197 + 3 years NBD onsite DT Only HW support
Model 400 G3 MT + V197 + 3 years NBD onsite DT Only HW supportPart no. P5K00EA#KIT1
153 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ProcessorIntel® Core™ i7
- Memory4 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel® Core™ i7
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- HP
- Category
- PCs/Workstations
- Model
- 400 G3 MT + V197 + 3 years NBD onsite DT Only HW support
- Part number
- P5K00EA#KIT1
- Also known as
- HP ProDesk 400 G3 MT + V197 + 3 years NBD onsite DT Only HW support Intel® Core™ i7 i7-6500U 4 GB DDR4-SDRAM 500 GB HDD Windows 7 Professional Micro Tower PC Bl
Specifications
153 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 6th gen Intel® Core™ i7 |
| Processor model | i7-6500U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.1 GHz |
| Processor frequency | 2.5 GHz |
| Processor cache | 4 MB |
| Processor cache type | Smart Cache |
| Bus type | OPI |
| System bus rate | 4 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-6500 Mobile series |
| Processor codename | Skylake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up | 25 W |
| Configurable TDP-up frequency | 2.6 GHz |
| Configurable TDP-down | 7.5 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 12 |
| PCI Express configurations | 1x4, 4x1 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 1356 (Socket B2) |
| Stepping | D1 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3L-SDRAM, LPDDR3-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1866,2133,1600 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 2x DIMM |
| Memory clock speed | 2133 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi |
| Storage media | HDD |
| Total HDDs capacity | 500 GB |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 520 |
| Maximum on-board graphics card memory | 1.74 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1050 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 1916 |
| On-board graphics card OpenGL version | 4.4 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® H110 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
| BD interface type | SATA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 (Gen 2.x) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Number of 2.5" bays | 1 |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 10 Pro |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 600:1 |
| Display brightness | 200 cd/m² |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 65° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 14 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel Smart Response Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Processor ARK ID | 88194 |
| Processor code | SR2EZ |
| Processor package size | 42 X 24 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 358.8 mm |
| Height | 355 mm |
| Weight | 7.05 kg |
Packaging content
| Specification | Value |
|---|---|
| Keyboard included | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Intel segment tagging | Enterprise, Small Business |
