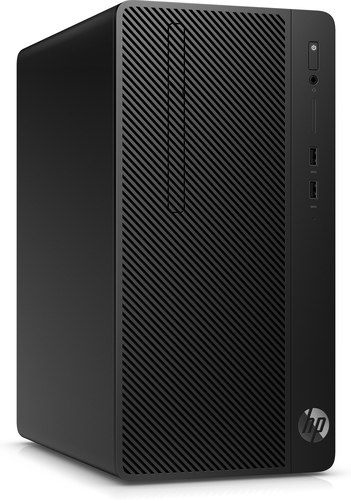

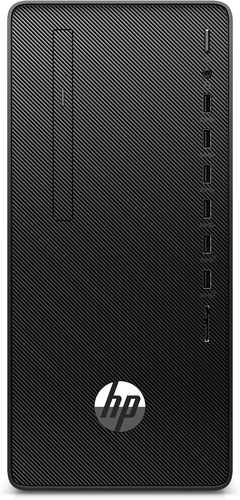

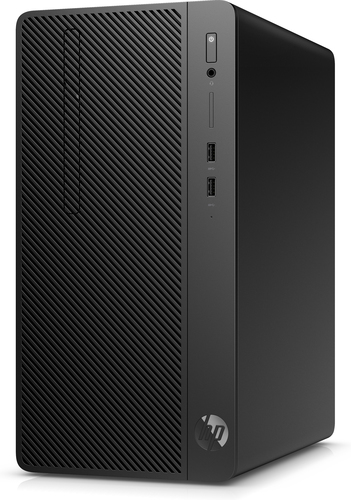

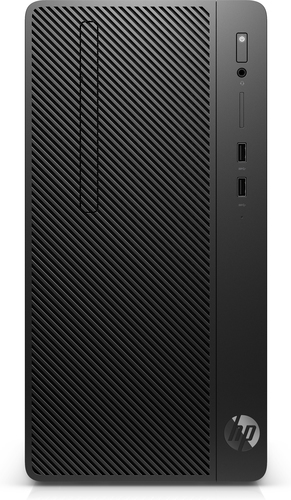

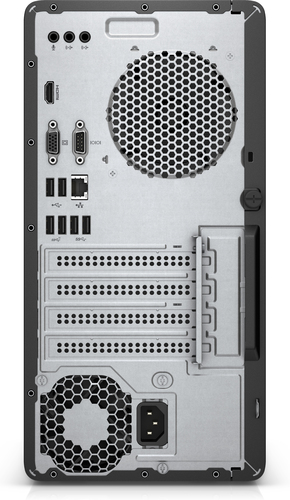

HP 290 G3 MT i3 9100/8Gb/1Tb/DVDRW/W10Pro64/kb/m/

Model 290 G3 MT i3 9100/8Gb/1Tb/DVDRW/W10Pro64/kb/m/Part no. 9UF83ESEAN 194850066139

109 specifications

Overview

Brand: HP
Category: PCs/Workstations
Model: 290 G3 MT i3 9100/8Gb/1Tb/DVDRW/W10Pro64/kb/m/
Part number: 9UF83ES
EAN / UPC: 194850066139
Also known as: HP 290 G3 MT i3 9100/8Gb/1Tb/DVDRW/W10Pro64/kb/m/ Intel® Core™ i3 i3-9100 DDR4-SDRAM HDD Windows 10 Pro Micro Tower PC Black

109 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	9th gen Intel® Core™ i3
Processor model	i3-9100
Processor cores	4
Processor threads	4
Processor boost frequency	4.2 GHz
Processor frequency	3.6 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8+2x4, 1x16, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Memory bandwidth supported by processor (max)	37.5 GB/s

Specification	Value
On-board graphics card	Yes
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics 630
On-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E91
On-board graphics card OpenGL version	4.5

Specification	Value
Product type	PC
Market positioning	Everyday

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	No
VGA (D-Sub) ports quantity	1
DVI port	No

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	134870
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
