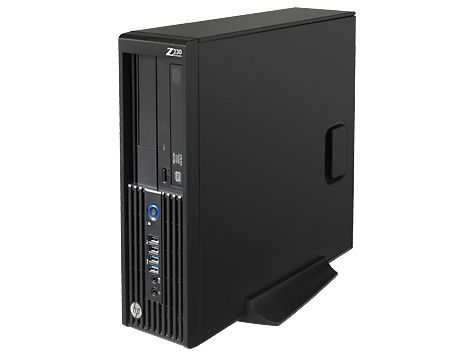

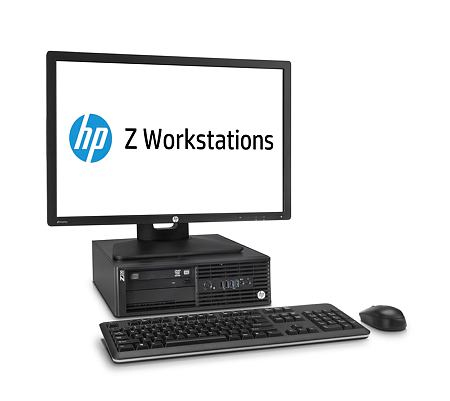

230 SFF + ZR2740w
Model 230 SFF + ZR2740wPart no. WM575ET#AK6#*KIT1*
140 specifications
- Display68.6 cm (27")
- Resolution2560 x 1440 pixels
- ProcessorIntel® Xeon® E3 V3 Family
- Memory4 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 68.6 cm (27")
- Resolution
- 2560 x 1440 pixels
- Processor
- Intel® Xeon® E3 V3 Family
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- HP
- Category
- PCs/Workstations
- Model
- 230 SFF + ZR2740w
- Part numbers
- WM575ET#AK6#*KIT1*, BWM575ET1
- Also known as
- HP 230 SFF + ZR2740w Intel® Xeon® E3 V3 Family E3-1225V3 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Workstation Black
Specifications
140 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 V3 Family |
| Processor model | E3-1225V3 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Bus type | QPI |
| FSB Parity | No |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E3-1200 v3 |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 84 W |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
| Number of QPI links | 1 |
| Number of processors installed | 1 |
| Processor socket | LGA 1150 (Socket H3) |
| Stepping | C0 |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1600 MHz |
| ECC | Yes |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi |
| Storage media | HDD |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics P4600 |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel® C226 |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 240 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Professional |
| Operating system architecture | 64-bit |
| Recovery operating system | Windows 8 Pro |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 68.6 cm (27") |
| Display resolution | 2560 x 1440 pixels |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 380 cd/m² |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Secure Key Technology version | 1.00 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | No |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 75461 |
| Processor code | SR14U |
| Processor package size | 37.5 x 37.5 mm |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Thermal solution specification | PCG 2013D |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Conflict-Free processor | No |
Audio
| Specification | Value |
|---|---|
| Audio system | HD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 337 mm |
| Depth | 384 mm |
| Height | 100 mm |
| Weight | 7.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
