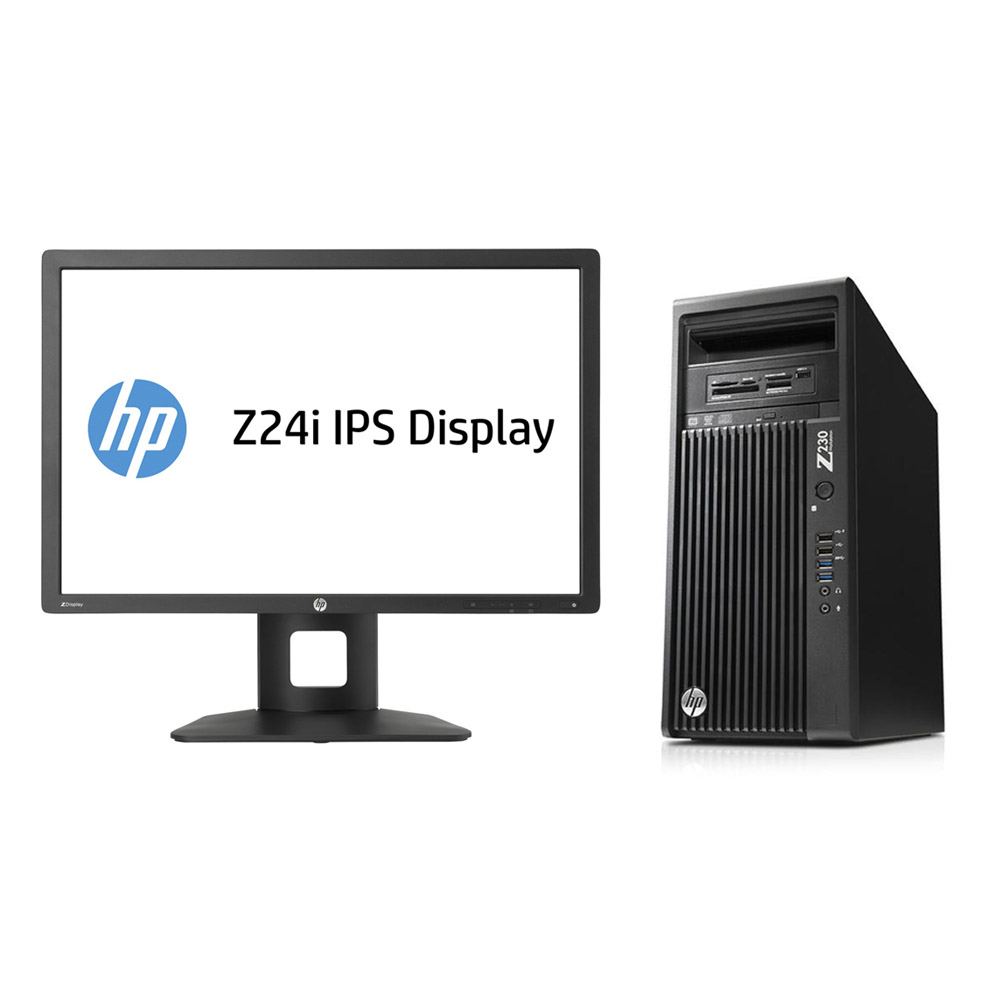

230 MT + NVIDIA Quadro K2000 + Z24i

Model 230 MT + NVIDIA Quadro K2000 + Z24iPart no. BWM636ET2-DKEAN 4056572635801

142 specifications

Display61 cm (24")
Resolution1920 x 1200 pixels
ProcessorIntel® Xeon® E3 V3 Family
Memory8 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 61 cm (24")
Resolution: 1920 x 1200 pixels
Processor: Intel® Xeon® E3 V3 Family
Memory: 8 GB
Storage: 1 TB
Graphics: Not available

Brand: HP
Category: PCs/Workstations
Model: 230 MT + NVIDIA Quadro K2000 + Z24i
Part numbers: BWM636ET2-DK, BWM636ET2-NO, BG1X36ET6-ABY
EAN / UPC: 4056572635801
Also known as: HP 230 MT + NVIDIA Quadro K2000 + Z24i Intel® Xeon® E3 V3 Family E3-1245V3 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Home Premium Mini Tower Workstation Black

Specifications

142 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 V3 Family
Processor model	E3-1245V3
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Xeon E3-1200 v3
Processor codename	Haswell
Thermal Design Power (TDP)	84 W
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	1
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory slots	4x DIMM
Memory clock speed	1600 MHz
ECC	Yes
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics P4600
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz

Performance

Specification	Value
Product type	Workstation
Motherboard chipset	Intel® C226

Optical drive

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	2

Expansion slots

Specification	Value
PCI Express x1 (Gen 2.x) slots	2
PCI Express x4 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI slots	1

Power

Specification	Value
Power supply	400 W

Design

Specification	Value
Chassis type	Mini Tower
Product colour	Black
Country of origin	China

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Recovery operating system	Windows 8.1 Pro

Display

Specification	Value
Display included	Yes
Display diagonal	61 cm (24")
Display resolution	1920 x 1200 pixels
Native aspect ratio	16:10
Contrast ratio (typical)	1000:1
Display brightness	300 cd/m²
Viewing angle, horizontal	178°
Viewing angle, vertical	178°

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	75462
Processor code	SR14T
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	No
