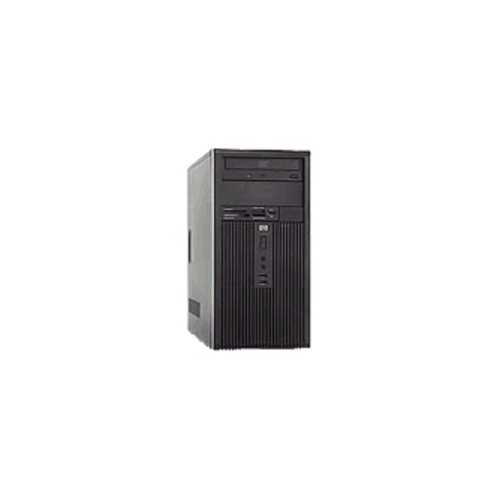

Compaq DX 2200 Intel® Pentium® 4 524
0.5 GB DDR2-SDRAM 80 GB Micro Tower PC Black
Model 2200Part no. EU372ETEAN 882780743755
112 specifications
- ProcessorIntel® Pentium® 4
- Memory0.5 GB
- Storage80 GB
- TypePC
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel® Pentium® 4
- Memory
- 0.5 GB
- Storage
- 80 GB
- Type
- PC
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- HP
- Category
- PCs/Workstations
- Model
- 2200
- Part number
- EU372ET
- EAN / UPC
- 882780743755
- Also known as
- HP Compaq DX 2200 Intel® Pentium® 4 524 0.5 GB DDR2-SDRAM 80 GB Micro Tower PC Black
Specifications
112 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® 4 |
| Processor model | 524 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 3.06 GHz |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 90 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Pentium 4 500 Series supporting Hyper-Threading Technology |
| Processor codename | Prescott |
| Thermal Design Power (TDP) | 84 W |
| Tcase | 67.7 °C |
| Number of processors installed | 1 |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 125 M |
| Processing Die size | 112 mm² |
| CPU multiplier (bus/core ratio) | 23 |
| Maximum number of SMP processors | 1 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0.5 GB |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory layout (slots x size) | 1 x 0.5 GB |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 80 GB |
| Optical drive type | DVD Super Multi DL |
| Number of HDDs installed | 1 |
| HDD capacity | 80 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card memory | 0.256 GB |
| Graphics card family | ATI |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Wi-Fi | No |
| Networking features | Fast Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| DC-in jack | Yes |
| Serial ports quantity | 1 |
| Parallel ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 3 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 2 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power supply | 250 W |
| Power supply input voltage | 180 - 264 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Micro Tower |
| Number of 5.25" bays | 2 |
| Product colour | Black |
| External drive bays | 3 |
| Internal drive bays | 2 |
| Country of origin | China |
Software
| Specification | Value |
|---|---|
| Drivers included | Yes |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27462 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 416 mm |
| Height | 353 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, 802.3u |
