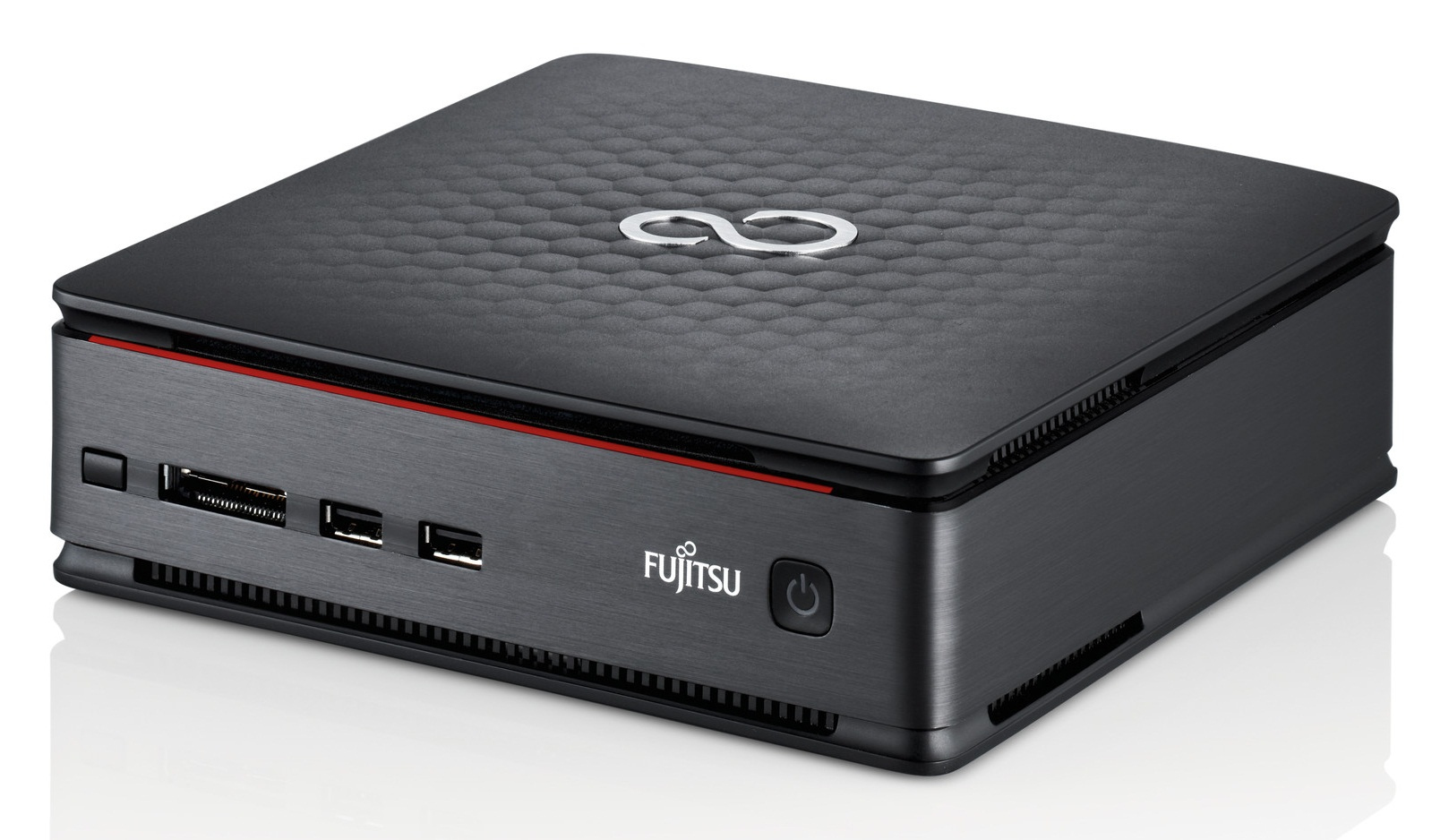

Q510 + Service Pack 3 years On-Site NBD 5x9

Model Q510 + Service Pack 3 years On-Site NBD 5x9Part no. VFY:Q0510P2301IN FSP:GA3S20Z00

127 specifications

Overview

Brand: Fujitsu
Category: PCs/Workstations
Model: Q510 + Service Pack 3 years On-Site NBD 5x9
Part numbers: VFY:Q0510P2301IN FSP:GA3S20Z00, VFY:Q0510P2301IN FSP:GA3S20Z00DEU07
Also known as: Fujitsu ESPRIMO Q510 + Service Pack 3 years On-Site NBD 5x9 Intel® Core™ i3 i3-2120T 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Small Desktop Mini PC Bla

127 specifications in 18 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2120T
Processor cores	2
Processor threads	4
Processor frequency	2.6 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	35 W
Tcase	65 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	26
Stepping	Q0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
On-board graphics card memory	1.759 GB
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102
Graphics card family	Intel

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® H61

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
DVI port	Yes
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
DC-in jack	Yes
Serial ports quantity	0
Parallel ports quantity	0
HDMI	Yes

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Drivers included	Yes
Bundled software	Microsoft Office 2010

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53427
Processor code	SR060
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
