VivoPC VM42-S204Z Intel® Celeron® 2957U
4 GB DDR3L-SDRAM 128 GB SSD Windows 10 Nettop Mini PC Silver
Model VM42-S204ZPart no. 90MS00B1-M02040EAN 4712900334845
129 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage128 GB
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
- OSWindows 10
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 128 GB
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- OS
- Windows 10
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- VM42-S204Z
- Part number
- 90MS00B1-M02040
- EAN / UPC
- 4712900334845
- Also known as
- ASUS VivoPC VM42-S204Z Intel® Celeron® 2957U 4 GB DDR3L-SDRAM 128 GB SSD Windows 10 Nettop Mini PC Silver
Specifications
129 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 2957U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.4 GHz |
| Processor cache | 2 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI2 |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Celeron Processor 2000 Series for Mobile |
| Processor codename | Haswell |
| Thermal Design Power (TDP) | 15 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 10 |
| PCI Express configurations | 4x1, 1x4 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1168 |
| Stepping | D0 |
| Maximum internal memory supported by processor | 16 GB |
| Memory types supported by processor | DDR3L-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3L-SDRAM |
| Memory clock speed | 1600 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Optical drive type | No |
| Storage media | SSD |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card dynamic frequency (max) | 1000 MHz |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |

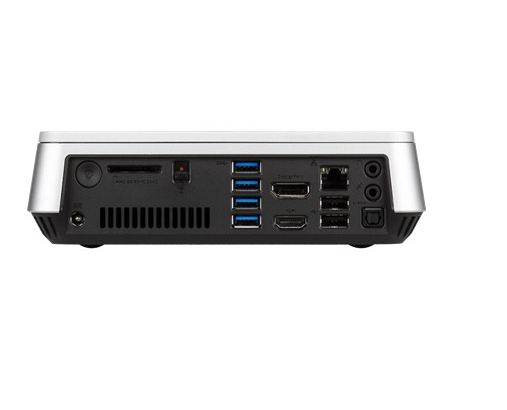

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
| Total number of SATA connectors | 2 |
| Number of SATA III connectors | 2 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Nettop |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel ME Firmware Version | 9.5 |
| Intel Rapid Storage Technology | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Smart Connect Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® OS Guard | No |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 78942 |
| Processor code | SR1DV |
| Processor package size | 40 x 24 x 1.5 mm |
| Supported instruction sets | SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 190 mm |
| Height | 56.2 mm |
| Weight | 1.2 kg |
