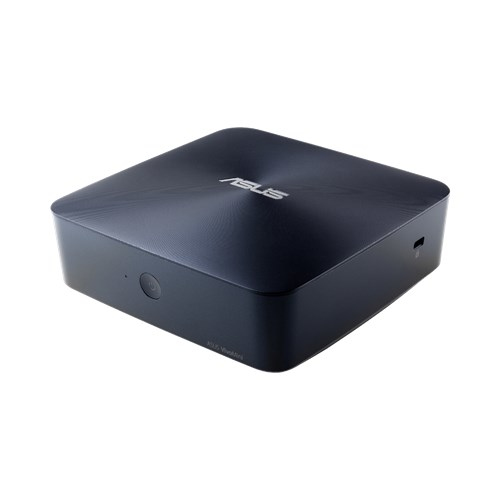

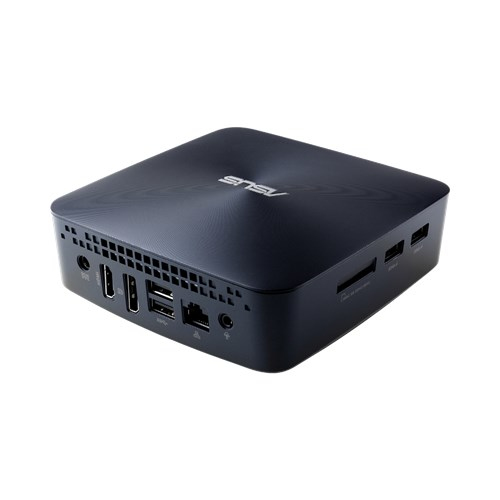

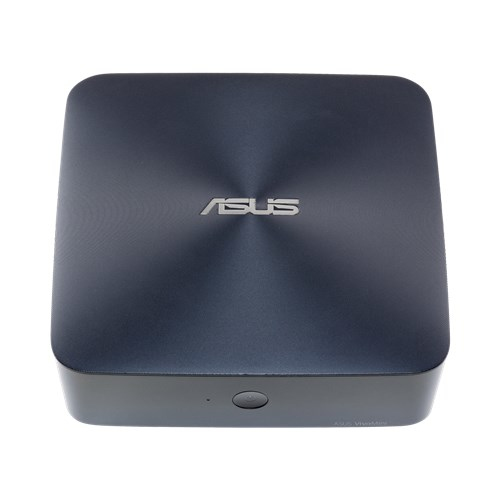

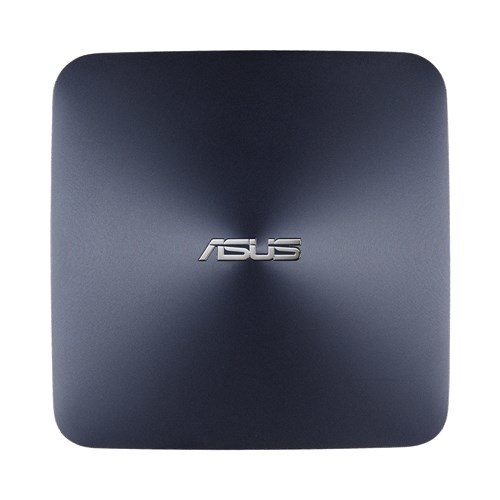

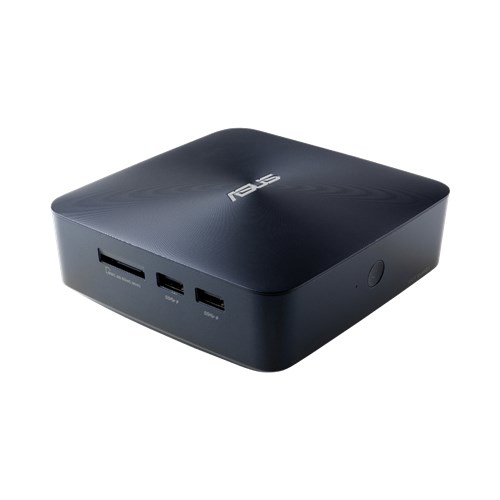

VivoMini UN65H-65U4ATA PC/workstation Intel® Core™ i7 i7-6500U

8 GB DDR3L-SDRAM 1 TB HDD Windows 10 Home Mini PC Blue

Model UN65H-65U4ATA

137 specifications

ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypeMini PC

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC

Brand: ASUS
Category: PCs/Workstations
Model: UN65H-65U4ATA
Part number: UN65H-65U4ATA
Also known as: ASUS VivoMini UN65H-65U4ATA PC/workstation Intel® Core™ i7 i7-6500U 8 GB DDR3L-SDRAM 1 TB HDD Windows 10 Home Mini PC Blue

Specifications

137 specifications in 15 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6500U
Processor cores	2
Processor threads	4
Processor boost frequency	3.1 GHz
Processor frequency	2.5 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	OPI
System bus rate	4 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6500 Mobile series
Processor codename	Skylake
Thermal Design Power (TDP)	15 W
Configurable TDP-up	25 W
Configurable TDP-up frequency	2.6 GHz
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x4, 4x1
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1356 (Socket B2)
Stepping	D1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1866,2133,1600 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR3L-SDRAM
Memory slots	2x SO-DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB

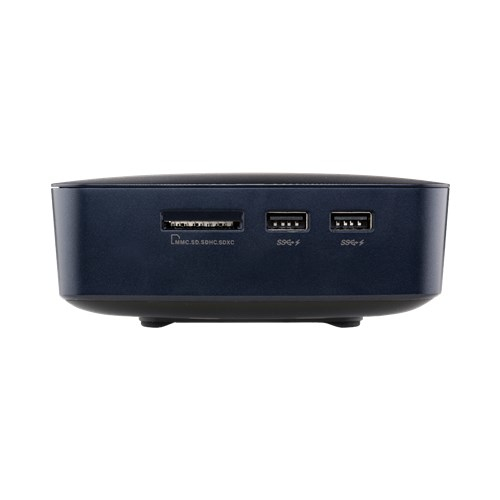

Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 520
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1916
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	Mini PC

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.0

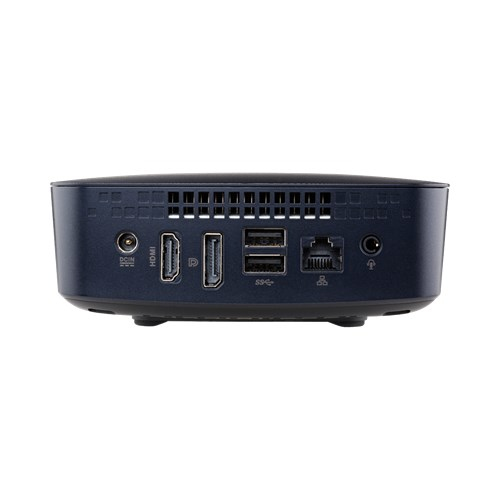

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	0
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	No
DC-in jack	Yes

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	Mini PC
Volume	1 L
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Blue

Software

Specification	Value
Operating system installed	Windows 10 Home

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88194
Processor code	SR2EZ
Processor package size	42 X 24 mm
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
