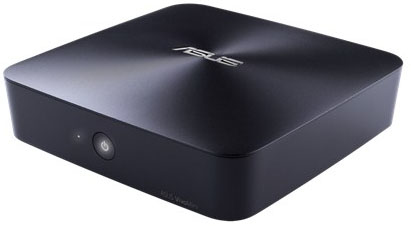

VivoPC UN62-M-M042M Intel® Core™ i5 i5-4210U

4 GB DDR3-SDRAM 32 GB SSD FreeDOS Mini PC Black

Model UN62-M-M042MPart no. 90MS00A1-M00420EAN 4716659946267

142 specifications

ProcessorIntel® Core™ i5
Memory4 GB
Storage32 GB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypeMini PC

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 32 GB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC

Brand: ASUS
Category: PCs/Workstations
Model: UN62-M-M042M
Part number: 90MS00A1-M00420
EAN / UPC: 4716659946267
Also known as: ASUS VivoPC UN62-M-M042M Intel® Core™ i5 i5-4210U 4 GB DDR3-SDRAM 32 GB SSD FreeDOS Mini PC Black

Specifications

142 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4210U
Processor cores	2
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	1.7 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI2
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4200 Mobile series
Processor codename	Haswell
Thermal Design Power (TDP)	15 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	4x1, 2x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1168
Stepping	D0
Maximum internal memory supported by processor	16 GB
Memory types supported by processor	DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x SO-DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	32 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	32 GB
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4400
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1000 MHz
On-board graphics card DirectX version	12
On-board graphics card ID	0xA16

Performance

Specification	Value
Product type	Mini PC

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.0
Wake-on-LAN ready	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
DC-in jack	Yes
Total number of SATA connectors	4
Number of SATA III connectors	4

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	FreeDOS

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel ME Firmware Version	9.5
Intel Rapid Storage Technology	Yes
Intel Secure Key Technology version	1.00
Intel Smart Connect Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	81016
Processor code	SR1EF
Processor package size	40 x 24 x 1.5 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
UART	Yes
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
