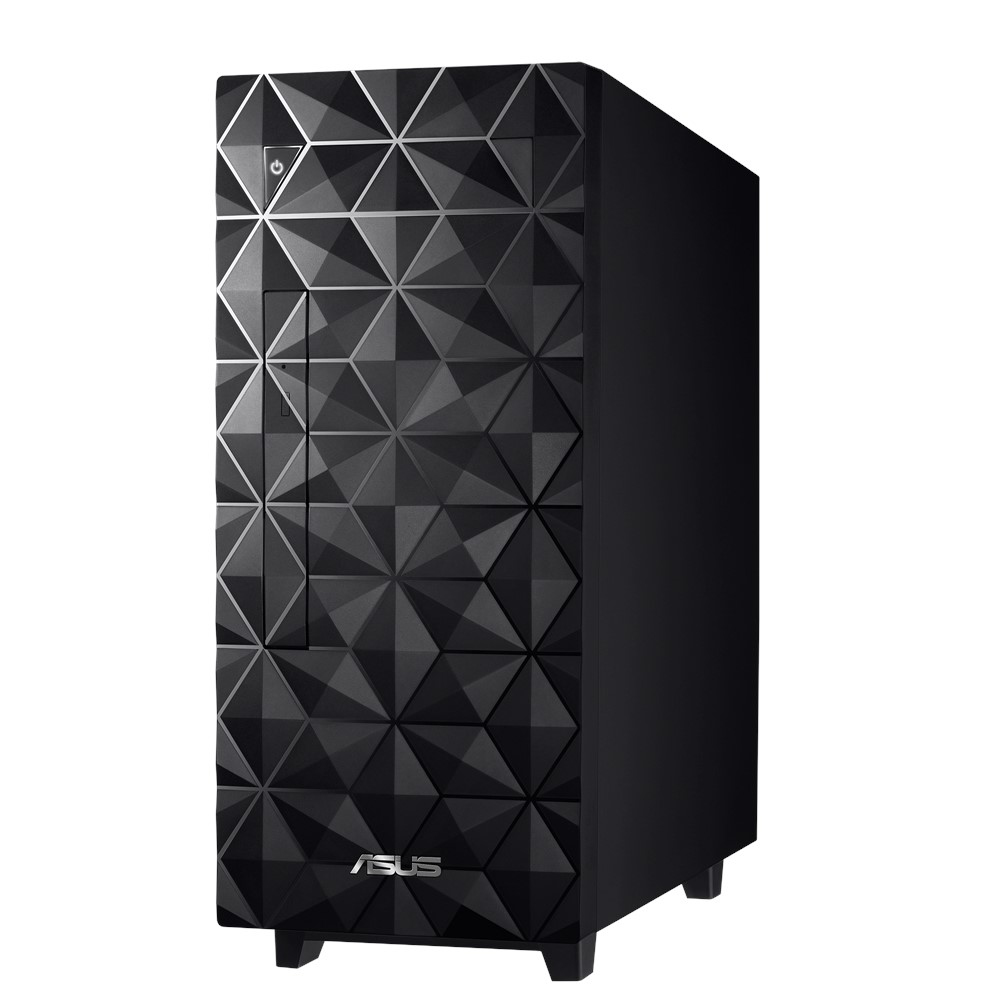

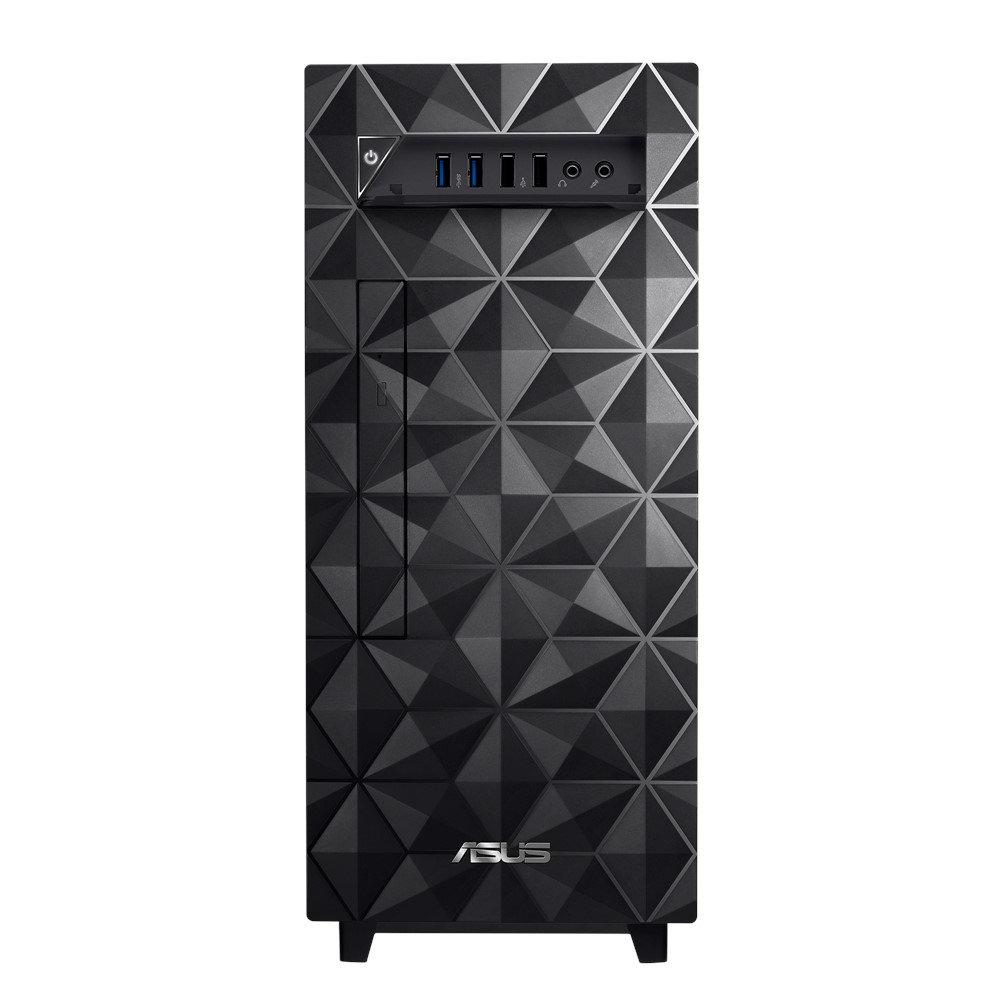

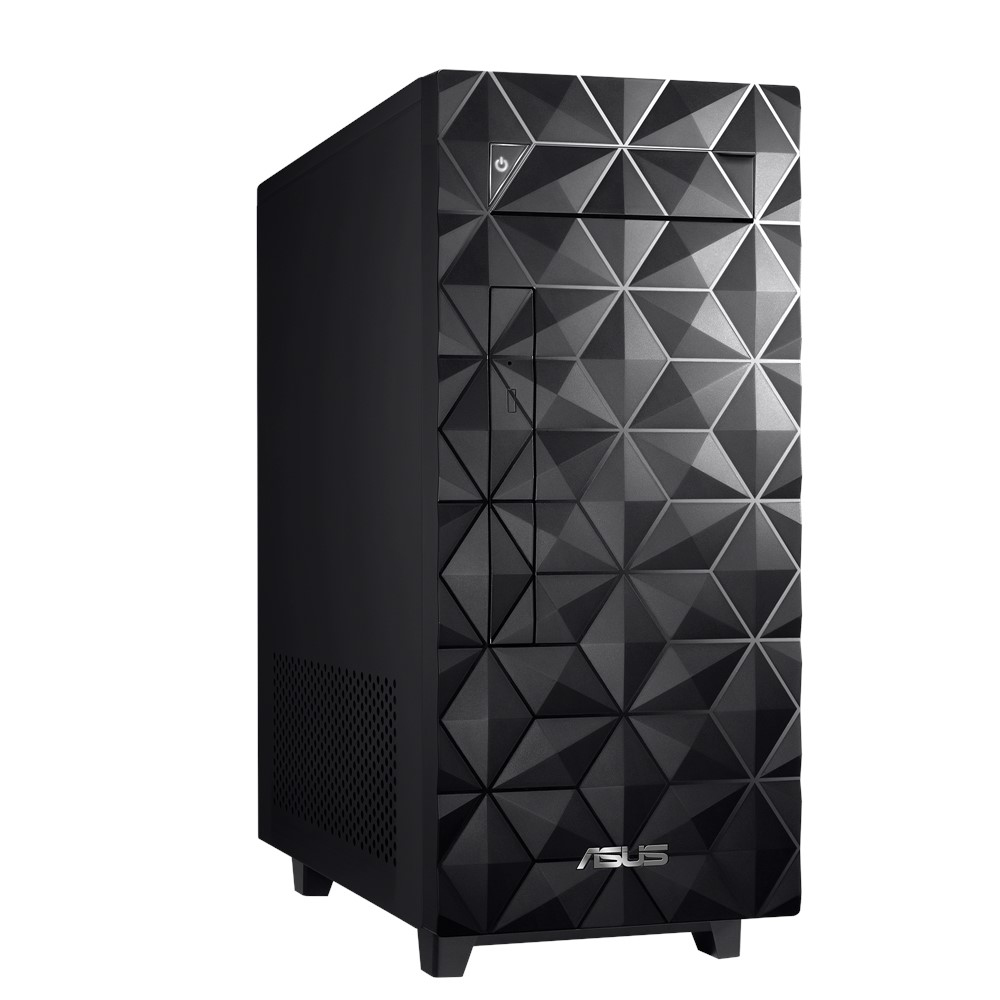

U500MA-R4700G008T AMD Ryzen™ 7
4700G 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GT 1030 Windows 10 Home Mini Tower PC Black
Model U500MA-R4700G008TPart no. 90PF02F2-M01360EAN 4711081012467
70 specifications
- ProcessorAMD Ryzen™ 7
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA® GeForce® GT 1030
- TypePC
- OSWindows 10 Home
Overview
- Processor
- AMD Ryzen™ 7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA® GeForce® GT 1030
- Type
- PC
- OS
- Windows 10 Home
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- U500MA-R4700G008T
- Part number
- 90PF02F2-M01360
- EAN / UPC
- 4711081012467
- Also known as
- ASUS U500MA-R4700G008T AMD Ryzen™ 7 4700G 16 GB DDR4-SDRAM 512 GB SSD NVIDIA® GeForce® GT 1030 Windows 10 Home Mini Tower PC Black
Specifications
70 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 4000 Series |
| Processor model | 4700G |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.4 GHz |
| Processor frequency | 2.6 GHz |
| Processor cache | 8 MB |
| Processor cache type | L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GT 1030 |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD B550 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Realtek RTL8111H |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| PS/2 ports quantity | 1 |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Placement supported | Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC887 |
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 294.4 mm |
| Height | 373.5 mm |
| Weight | 5.59 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CB, CE, FCC, UL, CCC, CECP |
