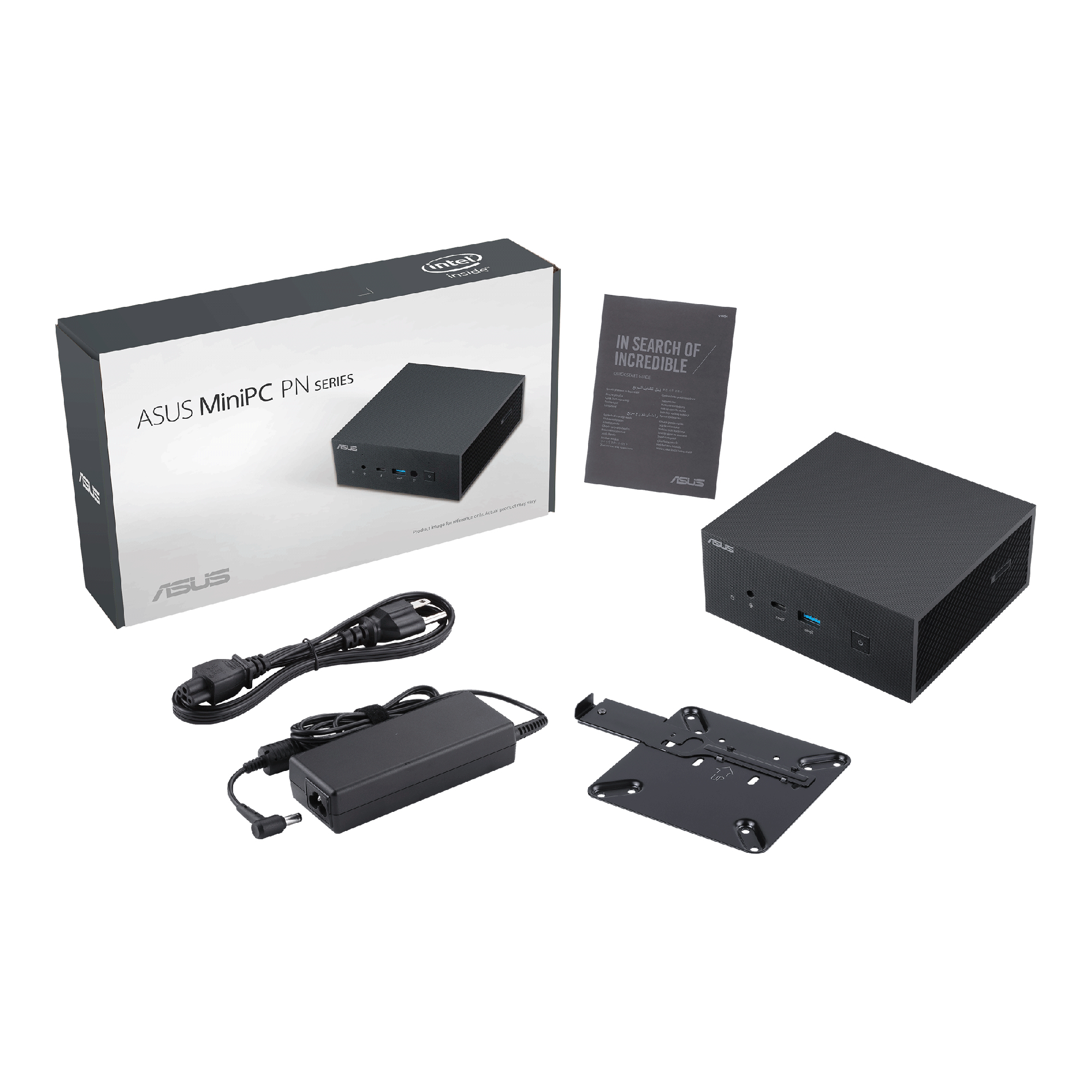

PN PN63-S1-S3188AD Intel® Core™ i3 i3-1115G4
8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
Model PN63-S1-S3188ADPart no. 90MS02D1-M005W0EAN 4711081913801
73 specifications
- ProcessorIntel® Core™ i3
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i3
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- PN63-S1-S3188AD
- Part number
- 90MS02D1-M005W0
- EAN / UPC
- 4711081913801
- Also known as
- ASUS PN PN63-S1-S3188AD Intel® Core™ i3 i3-1115G4 8 GB DDR4-SDRAM 256 GB SSD Windows 11 Pro Mini PC Black
Specifications
73 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 11th gen Intel® Core™ i3 |
| Processor model | i3-1115G4 |
| Processor cores | 2 |
| Processor boost frequency | 4.1 GHz |
| Processor cache | 6 MB |
| Configurable TDP-up | 28 W |
| Configurable TDP-up frequency | 3 GHz |
| Configurable TDP-down | 12 W |
| Configurable TDP-down frequency | 1.7 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| NVMe | Yes |
| SSD interface | PCI Express 3.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Repairability index | 0 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel WGI225V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Mini DisplayPorts quantity | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Idle States | Yes |
| Intel Software Guard Extensions (Intel SGX) | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120 mm |
| Depth | 130 mm |
| Height | 58 mm |
| Weight | 900 g |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
