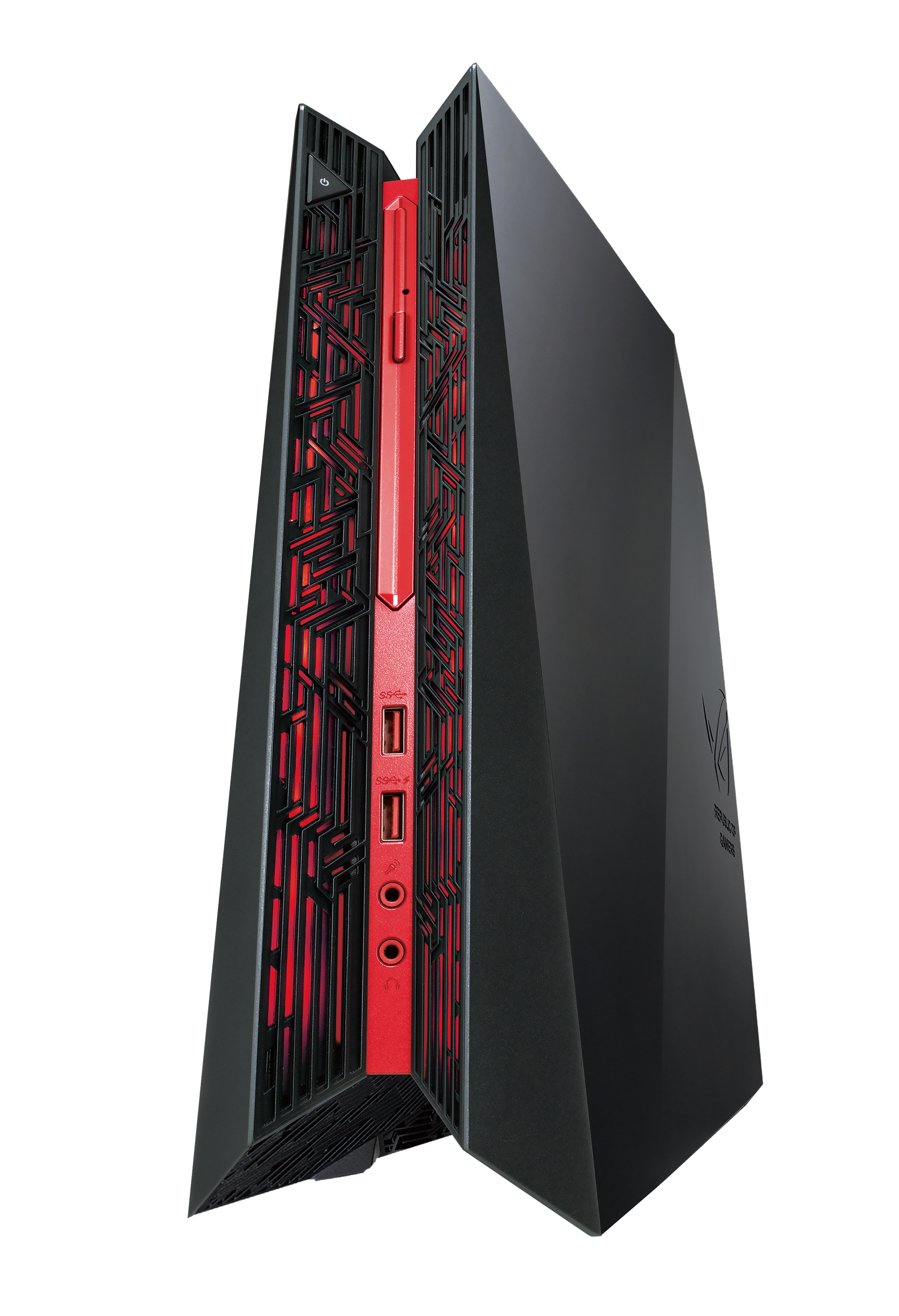

ROG G20BM-FR012T PC AMD FX™ FX-770K
8 GB 1.12 TB HDD+SSD AMD Radeon R9 255 Windows 10 Home Tower Grey
Model G20BM-FR012T
74 specifications
- ProcessorAMD FX™
- Memory8 GB
- Storage1.12 TB
- GraphicsAMD Radeon R9 255
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- AMD FX™
- Memory
- 8 GB
- Storage
- 1.12 TB
- Graphics
- AMD Radeon R9 255
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- G20BM-FR012T
- Part number
- G20BM-FR012T
- Also known as
- ASUS ROG G20BM-FR012T PC AMD FX™ FX-770K 8 GB 1.12 TB HDD+SSD AMD Radeon R9 255 Windows 10 Home Tower Grey
Specifications
74 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD FX™ |
| Processor model | FX-770K |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.5 GHz |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 16 GB |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.12 TB |
| Optical drive type | DVD Super Multi |
| Storage media | HDD+SSD |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
| Discrete graphics card model | AMD Radeon R9 255 |
| Discrete graphics card memory | 2 GB |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | AMD A58 |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| Mini HDMI ports quantity | 0 |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Grey |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | SonicMaster |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 104 mm |
| Depth | 340 mm |
| Height | 358 mm |
| Weight | 6.38 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 190 mm |
| Package depth | 400 mm |
| Package height | 592 mm |
