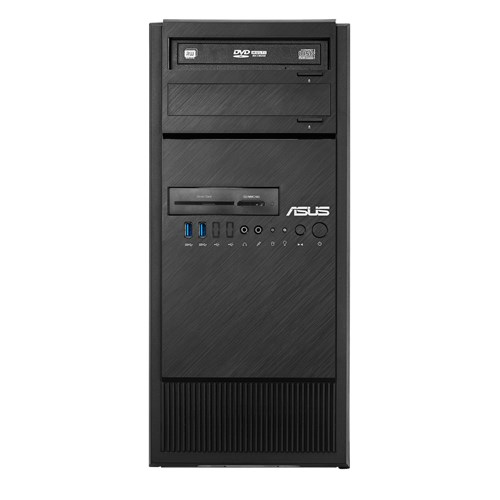

ESC300 G4
Model ESC300 G4Part no. 90SF0031-M00920EAN 4712900860306
65 specifications
- Memory0 GB
- Storage0 GB
- TypeWorkstation
- OSNo
- Weight12.7 kg
- ColourBlack
Overview
- Memory
- 0 GB
- Storage
- 0 GB
- Type
- Workstation
- OS
- No
- Weight
- 12.7 kg
- Colour
- Black
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- ESC300 G4
- Part numbers
- 90SF0031-M00920, 90SF0031-M00860
- EAN / UPC
- 4712900860306, 4712900862942
- Also known as
- ASUS ESC300 G4 0 GB DDR4-SDRAM HDD+SSD Tower Workstation Black
Specifications
65 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Number of processors installed | 0 |
| Processor socket | LGA 1151 (Socket H4) |
Memory
| Specification | Value |
|---|---|
| Internal memory | 0 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 2400 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Number of storage drives installed | 0 |
| Number of storage drives supported | 7 |
| Number of HDDs installed | 0 |
| HDD interface | SATA III |
| HDD size | 2.5/3.5" |
| Number of SSDs installed | 0 |
| SSD interface | M.2 |
| Card reader integrated | No |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | No |
| On-board graphics card model | Not available |
| NVIDIA GameWorks VR | Yes |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Market positioning | Beginner |
| Virtual Reality (VR) ready | Yes |
| Motherboard chipset | Intel® C232 |
| Motherboard form factor | ATX |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Optical drive
| Specification | Value |
|---|---|
| BD interface type | SATA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 3 |
| PCI Express x1 slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| Power supply input frequency | 50 - 60 Hz |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 1 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 423 mm |
| Height | 435 mm |
| Weight | 12.7 kg |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CCC, CE, FCC(Class B), Energy Star |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84715000 |
