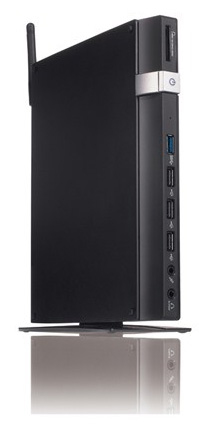

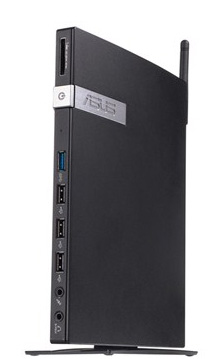

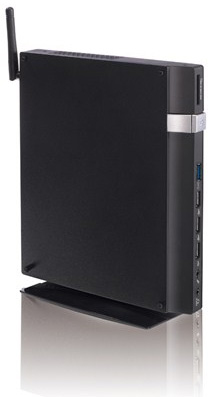

EeeBox PC EB1036-B0704 Intel® Celeron® J1900

2 GB DDR3L-SDRAM 500 GB HDD Windows 8.1 Mini PC Black

Model EB1036-B0704Part no. 90PX0041-M02090EAN 4716659878124

131 specifications

ProcessorIntel® Celeron®
Memory2 GB
Storage500 GB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypeMini PC

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 2 GB
Storage: 500 GB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC

Brand: ASUS
Category: PCs/Workstations
Model: EB1036-B0704
Part number: 90PX0041-M02090
EAN / UPC: 4716659878124
Also known as: ASUS EeeBox PC EB1036-B0704 Intel® Celeron® J1900 2 GB DDR3L-SDRAM 500 GB HDD Windows 8.1 Mini PC Black

Specifications

131 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J1900
Processor cores	4
Processor threads	4
Processor boost frequency	2.42 GHz
Processor frequency	2 GHz
Processor cache	2 MB
Processor cache type	L2
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor J1000 series for Desktop
Processor codename	Bay Trail
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1170
Stepping	B3
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	No
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	688 MHz
On-board graphics card dynamic frequency (max)	854 MHz

Performance

Specification	Value
Product type	Mini PC

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wake-on-LAN ready	Yes

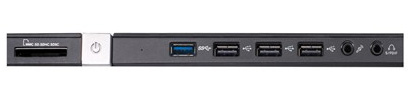

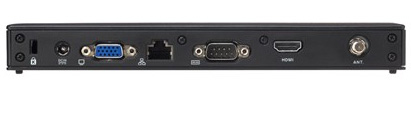

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
DC-in jack	Yes
Serial ports quantity	1

Power

Specification	Value
Power supply	45 W
Power consumption (typical)	6.695 W

Design

Specification	Value
Chassis type	Mini PC
Volume	1 L
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 8.1

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	78867
Processor code	SR1SC
Processor package size	25 X 27 mm
Thermal Monitoring Technologies	No
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
