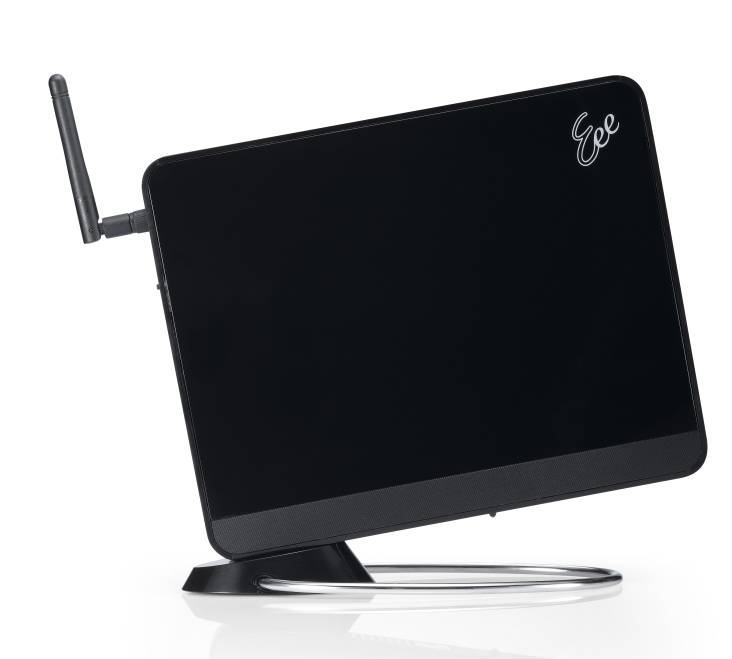

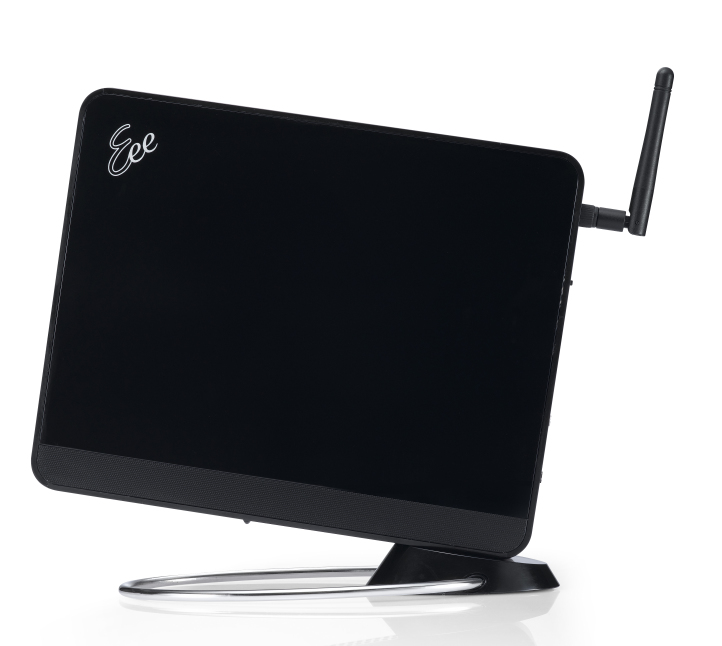

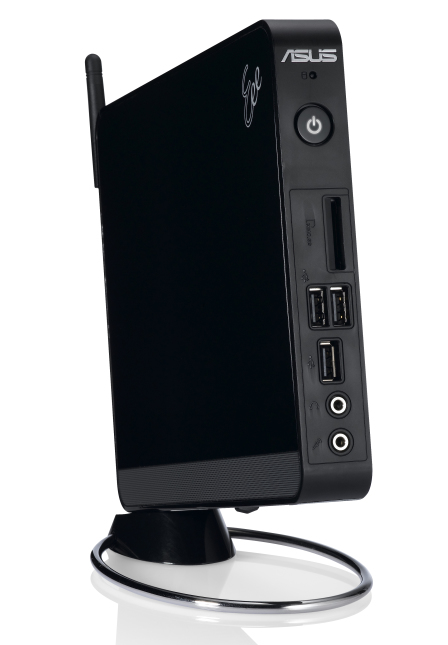

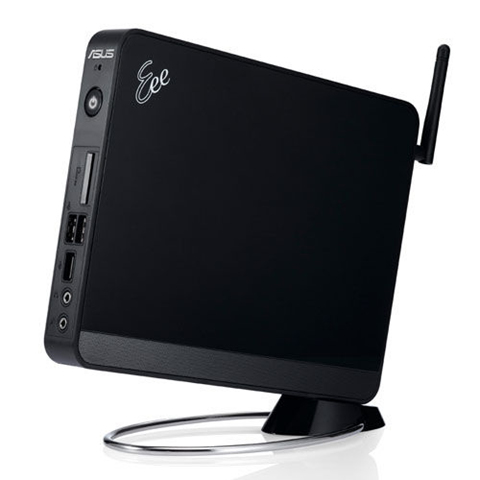

EeeBox PC EB1007-B1020 PC Intel Atom® D410
2 GB DDR2-SDRAM 320 GB HDD Linux Black
Model EB1007-B1020
103 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage320 GB
- SpeedWi-Fi 4 (802.11n)
- TypePC
- OSLinux
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 320 GB
- Speed
- Wi-Fi 4 (802.11n)
- Type
- PC
- OS
- Linux
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- EB1007-B1020
- Part number
- EB1007-B1020
- Also known as
- ASUS EeeBox PC EB1007-B1020 PC Intel Atom® D410 2 GB DDR2-SDRAM 320 GB HDD Linux Black
Specifications
103 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D410 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.66 GHz |
| Processor cache | 0.512 MB |
| Processor cache type | L2 |
| Bus type | DMI |
| FSB Parity | No |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Atom D400 Series |
| Processor codename | Pineview |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 100 °C |
| Number of processors installed | 1 |
| Processor socket | BGA 559 |
| Number of Processing Die Transistors | 123 M |
| Processing Die size | 66 mm² |
| Stepping | A0 |
| Maximum internal memory supported by processor | 4 GB |
| Memory types supported by processor | DDR2 667/800 |
| Memory bandwidth supported by processor (max) | 6.4 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 800 MHz |
| Memory channels | Single-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| Optical drive type | No |
| Storage media | HDD |
| HDD interface | SATA II |
| HDD speed | 5400 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC, SDXC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Integrated |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel NM10 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| PS/2 ports quantity | 0 |
| eSATA ports quantity | 1 |
| S/PDIF out port | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 40 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Linux |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 32 bit |
| Processor ARK ID | 43517 |
| Processor code | SLBMH |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 223 mm |
| Depth | 27 mm |
| Height | 178 mm |
| Weight | 1.17 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
