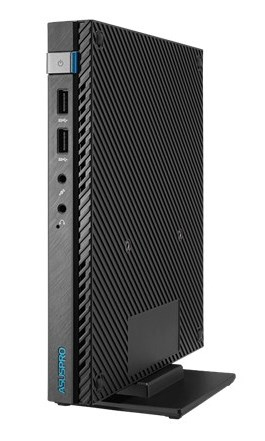

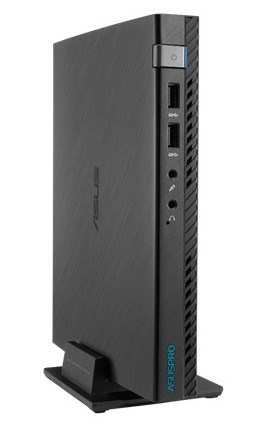

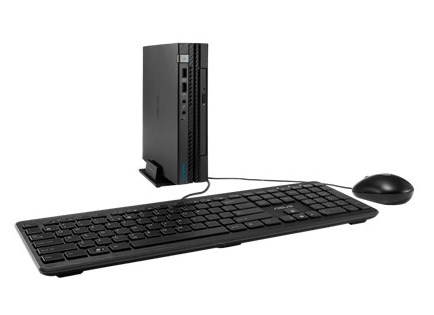

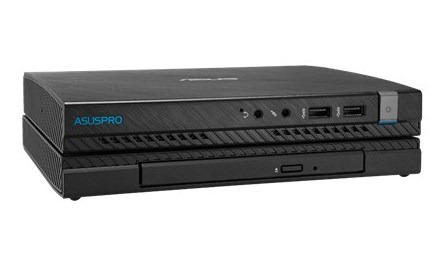

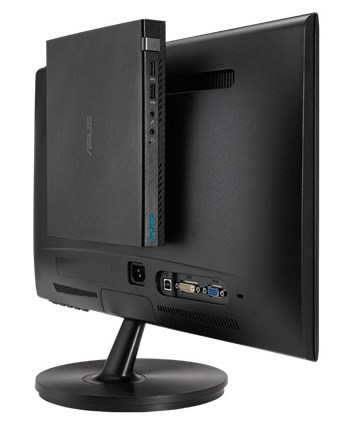

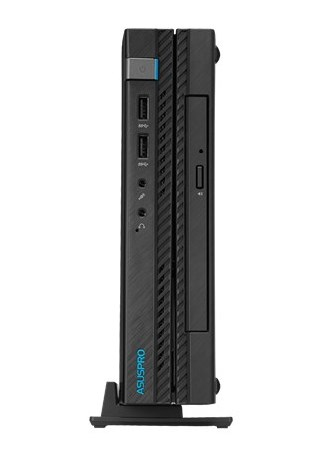

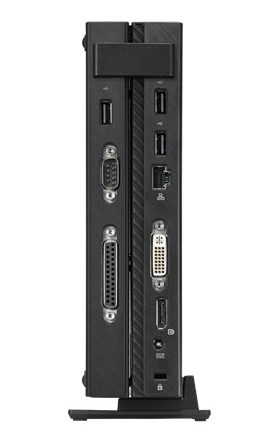

Essentio E510-B0964 Intel Pentium G G3250T

4 GB DDR3L-SDRAM 500 GB HDD Windows 10 Pro Mini PC Black

Model E510-B0964Part no. 90PX0081-M02640EAN 4712900150636

133 specifications

ProcessorIntel Pentium G
Memory4 GB
Storage500 GB
TypeMini PC
OSWindows 10 Pro
Weight800 g

See all specifications

Overview

Processor: Intel Pentium G
Memory: 4 GB
Storage: 500 GB
Type: Mini PC
OS: Windows 10 Pro
Weight: 800 g

Brand: ASUS
Category: PCs/Workstations
Model: E510-B0964
Part number: 90PX0081-M02640
EAN / UPC: 4712900150636
Also known as: ASUS Essentio E510-B0964 Intel Pentium G G3250T 4 GB DDR3L-SDRAM 500 GB HDD Windows 10 Pro Mini PC Black

Specifications

133 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G3250T
Processor cores	2
Processor threads	2
Processor frequency	2.8 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G3000 series for Desktop
Processor codename	Haswell
Thermal Design Power (TDP)	35 W
Tcase	66.4 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3L-SDRAM
Memory slots	2x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	No
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
HDD size	2.5"
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	11.1

Performance

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Placement supported	Horizontal/Vertical
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Recovery operating system	Windows 7 Professional

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	83539
Processor code	SR1KV
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013A
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
