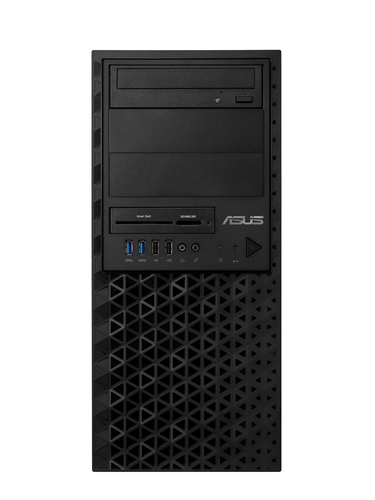

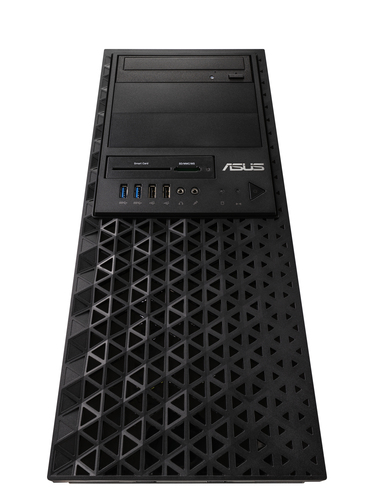

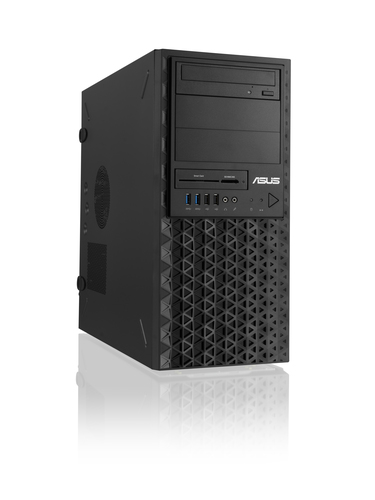

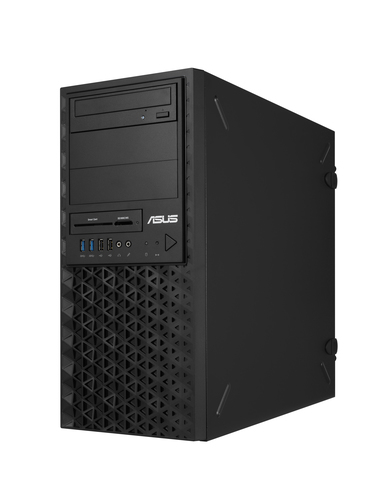

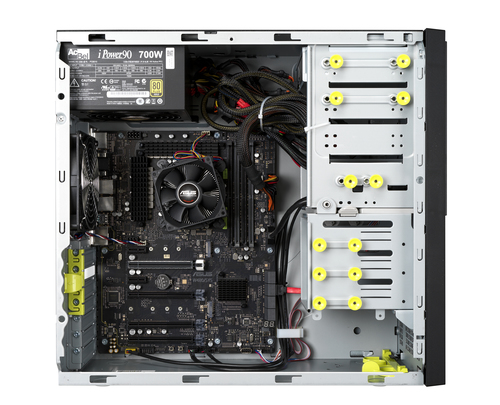

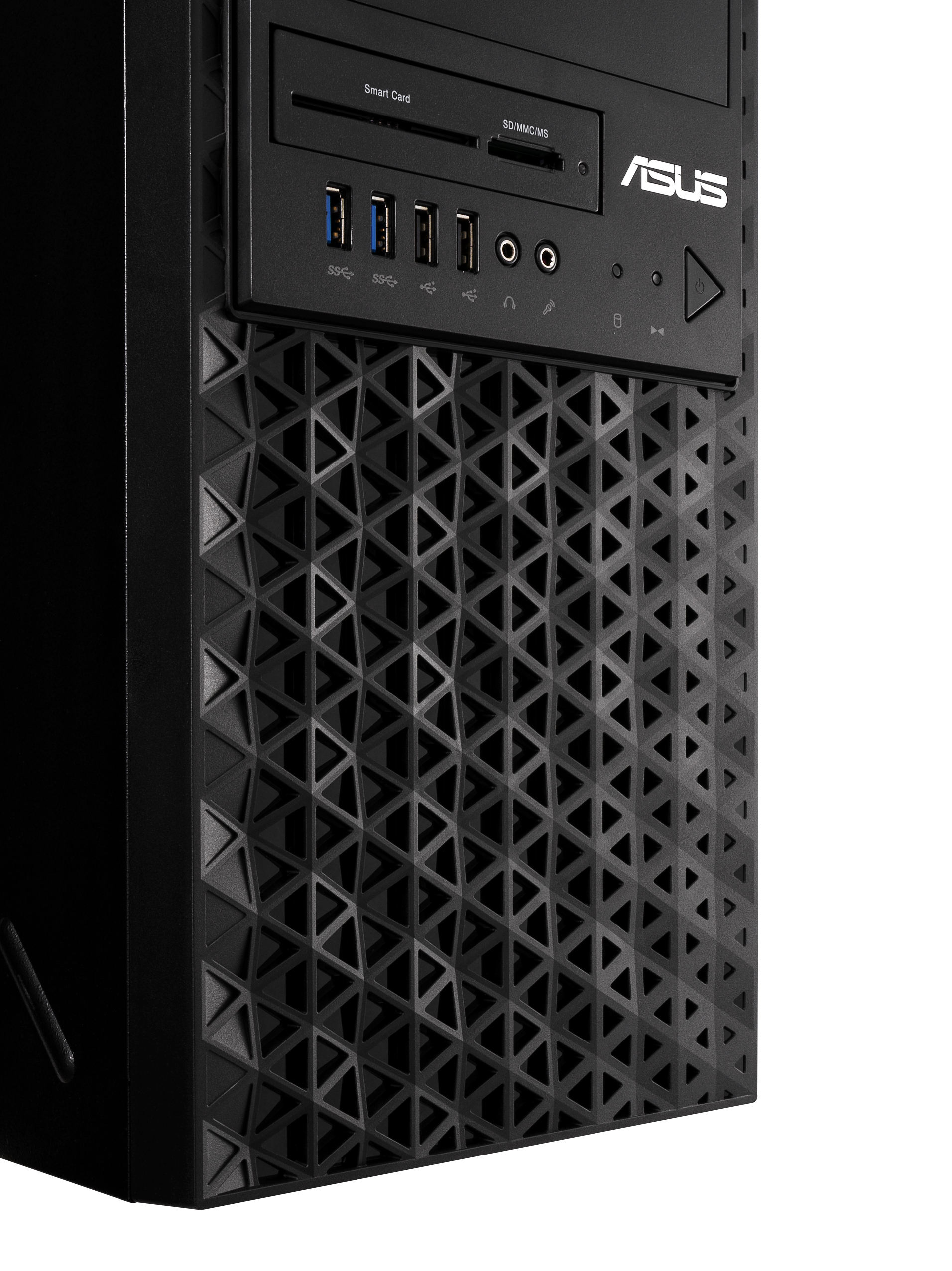

E500G6-W102Q workstation Intel® Core™ i9 i9-10900KF
128 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA GeForce RTX 3080 FreeDOS Tower Black
Model E500G6-W102Q
91 specifications
- ProcessorIntel® Core™ i9
- Memory128 GB
- Storage1.51 TB
- GraphicsNVIDIA GeForce RTX 3080
- TypeWorkstation
- OSFreeDOS
Overview
- Processor
- Intel® Core™ i9
- Memory
- 128 GB
- Storage
- 1.51 TB
- Graphics
- NVIDIA GeForce RTX 3080
- Type
- Workstation
- OS
- FreeDOS
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- E500G6-W102Q
- Part number
- E500G6-W102Q
- Also known as
- ASUS E500G6-W102Q workstation Intel® Core™ i9 i9-10900KF 128 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA GeForce RTX 3080 FreeDOS Tower Black
Specifications
91 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 10th gen Intel® Core™ i9 |
| Processor model | i9-10900KF |
| Processor cores | 10 |
| Processor boost frequency | 5.3 GHz |
| Processor frequency | 3.7 GHz |
| Processor cache | 20 MB |
| Configurable TDP-down | 95 W |
| Configurable TDP-down frequency | 3.3 GHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 128 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 32 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.51 TB |
| Optical drive type | No |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Total HDDs capacity | 1 TB |
| Number of HDDs installed | 1 |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 3080 |
| Discrete graphics card memory | 10 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel W480 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| LAN controller | Intel® I219-LM, Intel I225-LM |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
Power
| Specification | Value |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | FreeDOS |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 423 mm |
| Depth | 190 mm |
| Height | 435 mm |
| Weight | 9.9 kg |
