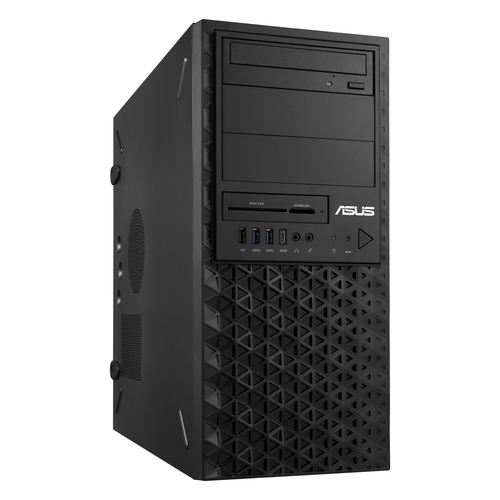

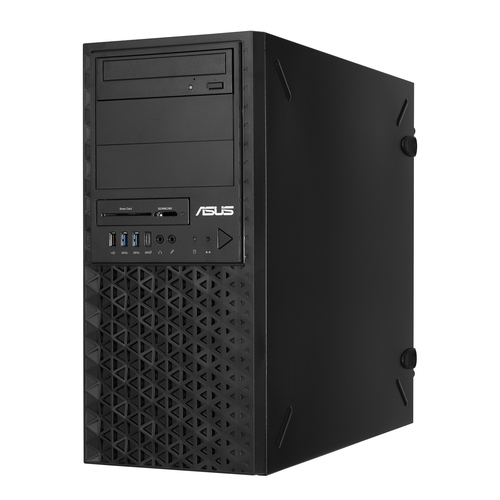

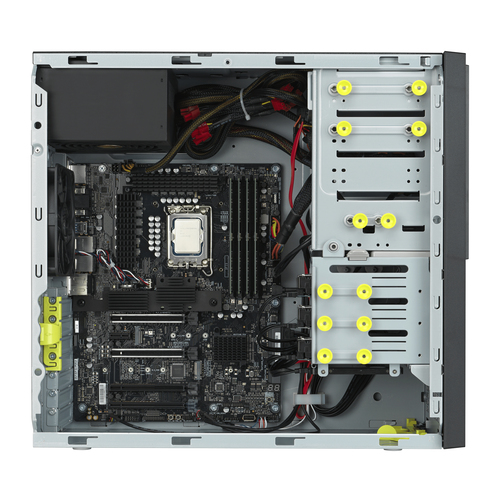

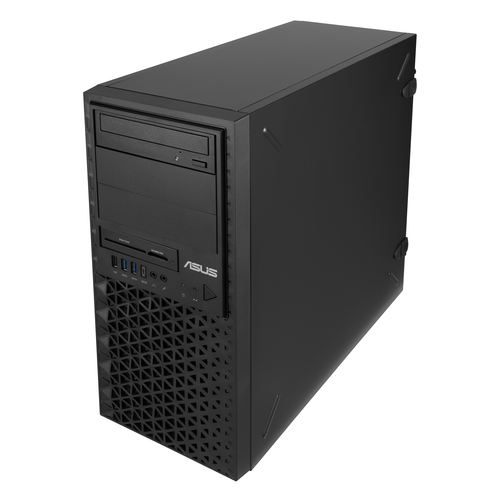

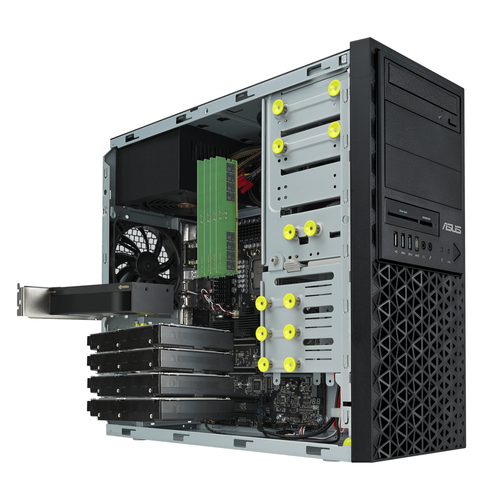

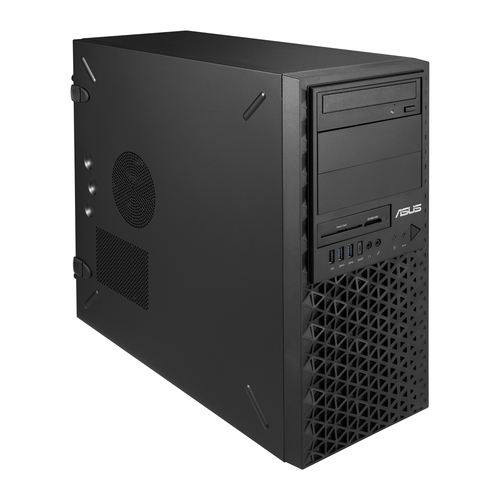

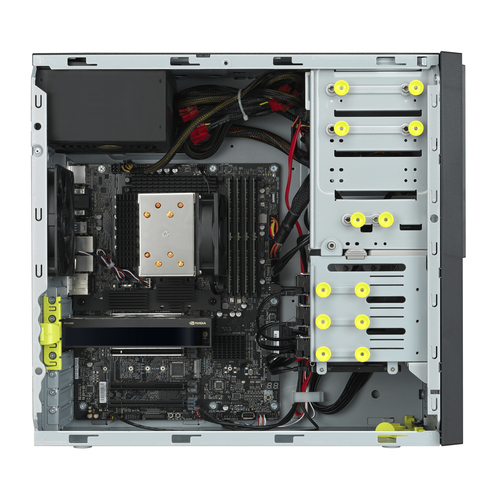

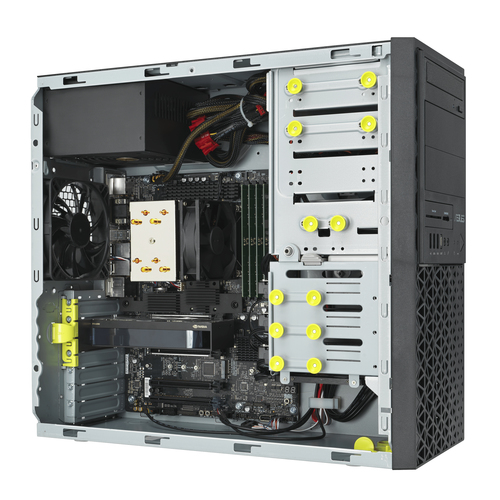

E500 G9-0140-CH
Model E500 G9-0140-CHPart no. 90SF02F1-M00140EAN 4711081880646
89 specifications
- ProcessorIntel® Core™ i9
- Memory16 GB
- Storage1 TB
- GraphicsNVIDIA RTX A2000
- TypeWorkstation
- ColourBlack
Overview
- Processor
- Intel® Core™ i9
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- NVIDIA RTX A2000
- Type
- Workstation
- Colour
- Black
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- E500 G9-0140-CH
- Part number
- 90SF02F1-M00140
- EAN / UPC
- 4711081880646
- Also known as
- ASUS ExpertCenter E500 G9-0140-CH Intel® Core™ i9 i9-12900 16 GB DDR5-SDRAM 1 TB SSD NVIDIA RTX A2000 Tower Workstation Black
Specifications
89 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 |
| Processor generation | 12th gen Intel® Core™ i9 |
| Processor model | i9-12900 |
| Processor cores | 16 |
| Processor threads | 24 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 2.4 GHz |
| Performance cores | 8 |
| Efficient cores | 8 |
| Processor cache | 30 MB |
| Bus type | DMI4 |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
| ECC | Yes |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | NVMe |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete graphics card model | NVIDIA RTX A2000 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel W680 |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Password protection | Yes |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| LAN controller | Intel I225-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 3 |
| PCI slots | 5 |
Power
| Specification | Value |
|---|---|
| Power supply input frequency | 50 - 60 Hz |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 1 |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 423 mm |
| Height | 435 mm |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CE, FCC, Energy Star |
