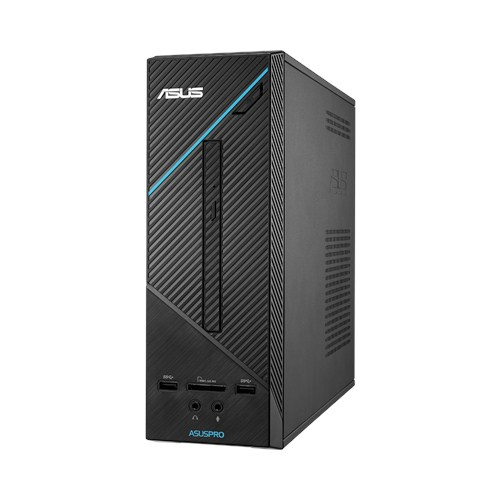

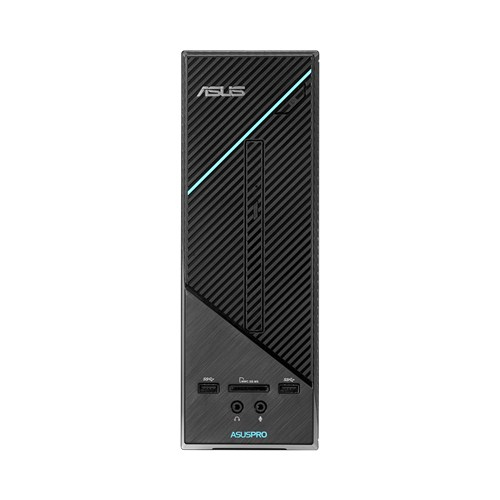

ASUSPRO D320SF-I767000074 Intel® Core™ i7 i7-6700

8 GB DDR4-SDRAM 1 TB HDD Windows 7 Professional SFF PC Black

Model D320SF-I767000074Part no. 90PF0101-M00750EAN 4712900346640

146 specifications

ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
GraphicsNot available
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Graphics: Not available
Type: PC
OS: Windows 7 Professional

Brand: ASUS
Category: PCs/Workstations
Model: D320SF-I767000074
Part number: 90PF0101-M00750
EAN / UPC: 4712900346640
Also known as: ASUSPRO D320SF-I767000074 Intel® Core™ i7 i7-6700 8 GB DDR4-SDRAM 1 TB HDD Windows 7 Professional SFF PC Black

Specifications

146 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6700
Processor cores	4
Processor threads	8
Processor boost frequency	4 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI3
FSB Parity	No
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-6700 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	65 W
Tcase	71 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	2x8, 1x8+2x4, 1x16
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD±RW
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SDHC, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1912
On-board graphics card OpenGL version	4.4
Graphics card Open GL support	Yes
Graphics card DVI ports quantity	1
Graphics card HDMI ports quantity	1
Graphics card VGA (D-Sub) ports quantity	1

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H110
Audio output channels	7.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	Yes
DC-in jack	Yes

Expansion slots

Specification	Value
PCI Express x16 slots	1
Mini PCI Express slots	1

Design

Specification	Value
Chassis type	SFF
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Recovery operating system	Windows 10 Pro
Trial software	Anti-Virus, Microsoft Office

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88196
Processor code	SR2BT
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, AVX 2.0, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
