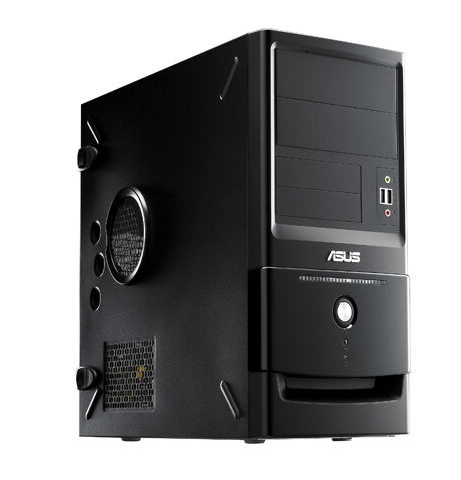

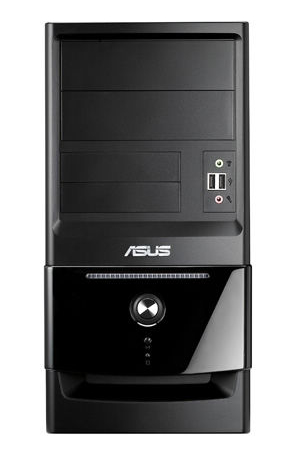

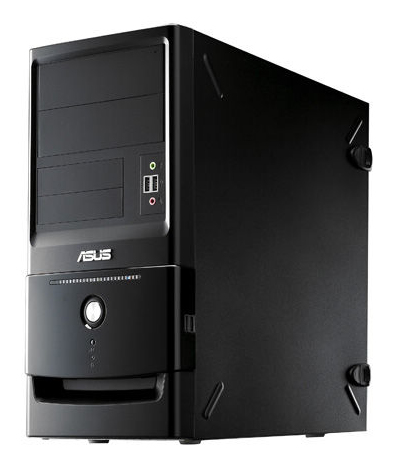

BM 6330-ITVAR02 Intel® Core™ i7 i7-3770

8 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional Desktop PC Black

Model 6330-ITVAR02Part no. 90PF1CAAP46CBSLX9C0T

144 specifications

ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
TypePC
OSWindows 7 Professional
Weight13.5 kg

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Type: PC
OS: Windows 7 Professional
Weight: 13.5 kg

Brand: ASUS
Category: PCs/Workstations
Model: 6330-ITVAR02
Part number: 90PF1CAAP46CBSLX9C0T
Also known as: ASUS BM 6330-ITVAR02 Intel® Core™ i7 i7-3770 8 GB DDR3-SDRAM 1 TB HDD Windows 7 Professional Desktop PC Black

Specifications

144 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3770
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3700 Desktop series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	77 W
Tcase	67.4 °C
Tjunction	105 °C
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	34
Stepping	E1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card ID	0x162

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Ethernet LAN (RJ-45) ports	1
Headphone outputs	2
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
S/PDIF out port	Yes
DC-in jack	Yes

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 (Gen 1.x) slots	2
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power supply	350 W

Design

Specification	Value
Chassis type	Desktop
Placement supported	Vertical
Number of 5.25" bays	2
Number of 2.5" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	64-bit
Recovery operating system	Windows 8 Pro
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65719
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011D
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
