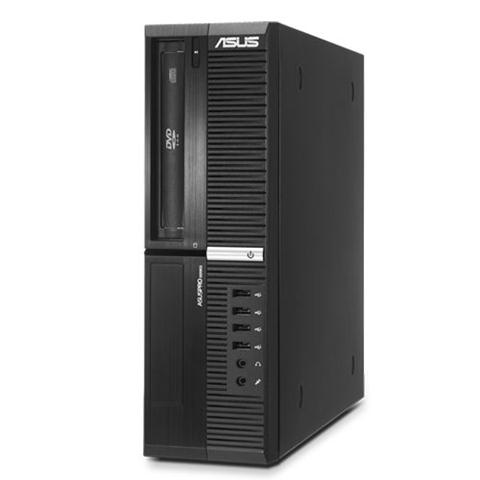

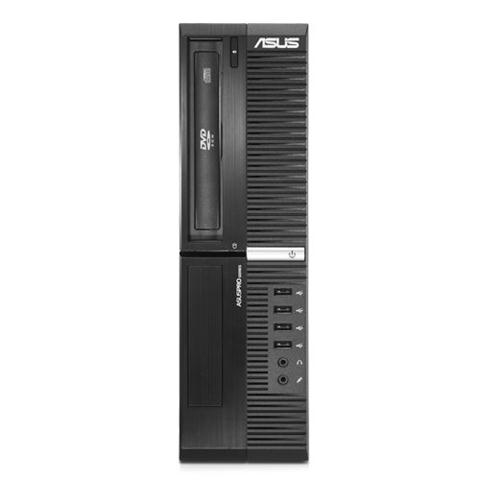

BP 6320-I5334S227B Intel® Core™ i5 i5-3340S

4 GB DDR3-SDRAM 500 GB HDD Windows 8 Pro PC Black

Model 6320-I5334S227BPart no. 90PF1NAAY3316SL0ZC0TEAN 4716659660941

147 specifications

ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNot available
TypePC
OSWindows 8 Pro

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: Not available
Type: PC
OS: Windows 8 Pro

Brand: ASUS
Category: PCs/Workstations
Model: 6320-I5334S227B
Part number: 90PF1NAAY3316SL0ZC0T
EAN / UPC: 4716659660941
Also known as: ASUS BP 6320-I5334S227B Intel® Core™ i5 i5-3340S 4 GB DDR3-SDRAM 500 GB HDD Windows 8 Pro PC Black

Specifications

147 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3340S
Processor cores	4
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	2.8 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3300 Desktop Series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	65 W
Tcase	69.1 °C
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD-RW
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	No
Compatible memory cards	Not supported

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card ID	0x152

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61
Audio output channels	5.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	No
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
S/PDIF out port	No
DC-in jack	No
SmartCard slot	No

Expansion slots

Specification	Value
Number of 3.5" bays	3
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power supply	250 W

Design

Specification	Value
Number of 5.25" bays	1
Liquid cooling system	No
Product colour	Black
Form factor	Tower

Software

Specification	Value
Operating system installed	Windows 8 Pro
Operating system architecture	64-bit
Bundled software	PC-cillin Trial Version Office 2010 Starter or Office trial Nero Essentials

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	76343
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
