3 N005U

Model 3 N005UPart no. CHROMEBOX3-N005UEAN 4712900986266

117 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: 3 N005U
Part number: CHROMEBOX3-N005U
EAN / UPC: 4712900986266
Also known as: ASUS Chromebox 3 N005U Intel® Core™ i5 i5-8250U 8 GB 128 GB SSD ChromeOS Mini PC Black

117 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	8th gen Intel® Core™ i5
Processor model	i5-8250U
Processor cores	4
Processor threads	8
Processor boost frequency	3.4 GHz
Processor frequency	1.6 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	OPI
System bus rate	4 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake R
Thermal Design Power (TDP)	15 W
Configurable TDP-up	25 W
Configurable TDP-up frequency	1.8 GHz
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	BGA 1356
Stepping	Y0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	2133,2400 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No

Specification	Value
Internal memory	8 GB
Memory channels	Dual-channel

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 620
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5917
On-board graphics card OpenGL version	4.4

Specification	Value
Product type	Mini PC

Specification	Value

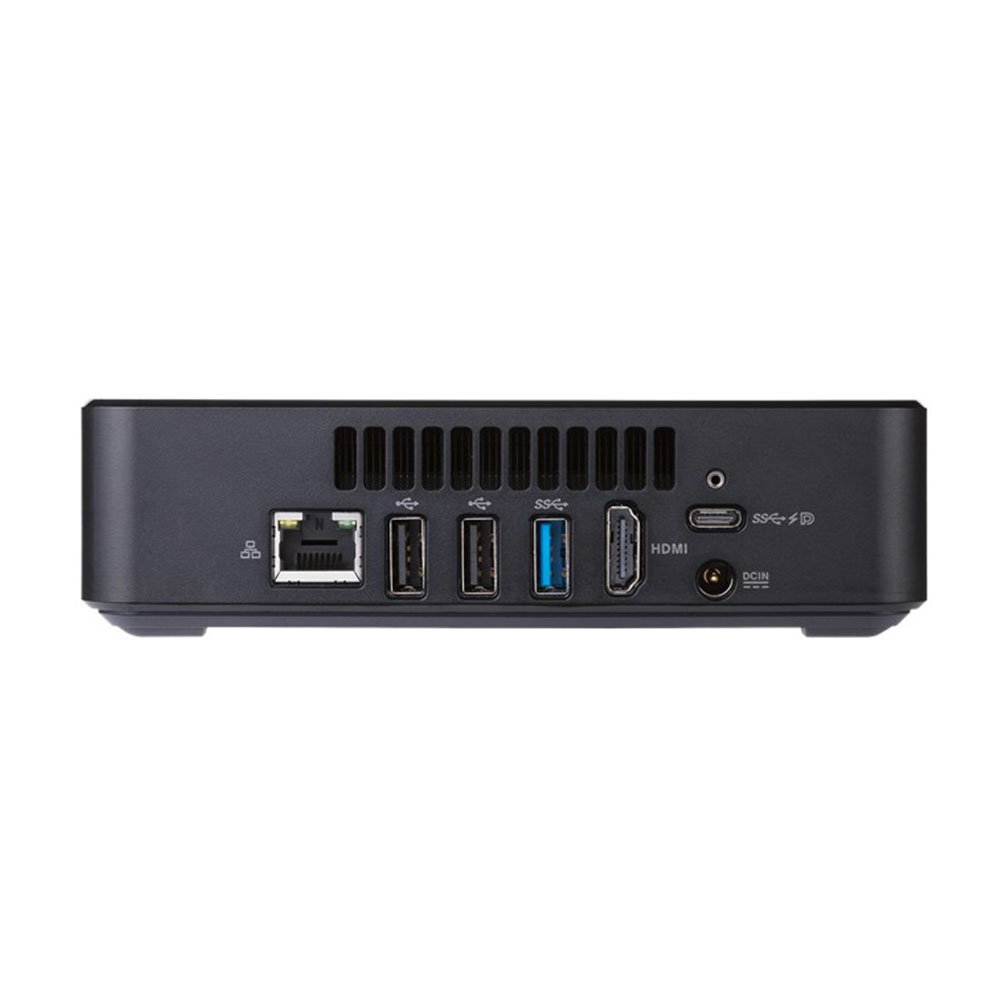

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
DVI port	No
DC-in jack	Yes
On/off button	Yes

Specification	Value
Chassis type	Mini PC
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black
Intel® vPro™ Platform Eligibility	No

Specification	Value
Operating system installed	ChromeOS

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	124967
Processor code	SR3LA
Processor package size	42 x 24 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
