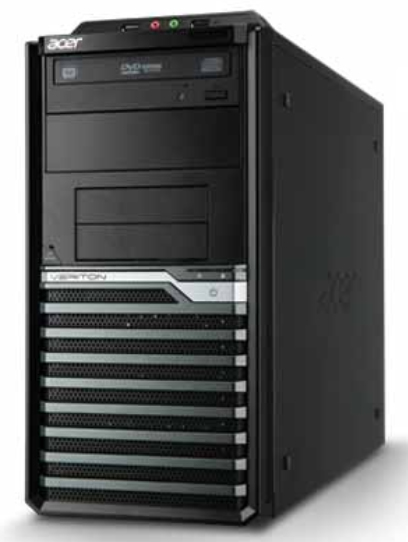

Veriton M VM4630G-SI747X PC/workstation Intel® Core™ i7 i7-4770

8 GB DDR3-SDRAM 1 TB HDD Windows 8 Pro Mini Tower Black

Model VM4630G-SI747X

159 specifications

ProcessorIntel® Core™ i7
Memory8 GB
Storage1 TB
TypePC
OSWindows 8 Pro
ColourBlack

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 1 TB
Type: PC
OS: Windows 8 Pro
Colour: Black

Brand: Acer
Category: PCs/Workstations
Model: VM4630G-SI747X
Part number: VM4630G-SI747X
Also known as: Acer Veriton M VM4630G-SI747X PC/workstation Intel® Core™ i7 i7-4770 8 GB DDR3-SDRAM 1 TB HDD Windows 8 Pro Mini Tower Black

Specifications

159 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4770
Processor cores	4
Processor threads	8
Processor boost frequency	3.9 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI2
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	84 W
Tcase	72.72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	1
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.5 V

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 4 GB
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD speed	7200 RPM
HDD size	3.5"

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	2 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card ID	0x412
On-board graphics card OpenGL version	4.3

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® B85
Password protection	Yes
Password protection type	BIOS
Audio output channels	5.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
Serial ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	4
PCI Express x1 (Gen 2.x) slots	1
PCI Express x16 (Gen 2.x) slots	1
PCI Express x16 (Gen 3.x) slots	1
PCI slots	1

Power

Specification	Value
Power supply	300 W

Design

Specification	Value
Chassis type	Mini Tower
Placement supported	Vertical
Number of 5.25" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 8 Pro
Operating system architecture	64-bit
Recovery operating system	Windows 7 Professional
Drivers included	Yes

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Active Management Technology (Intel® AMT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75122
Processor code	SR149
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
