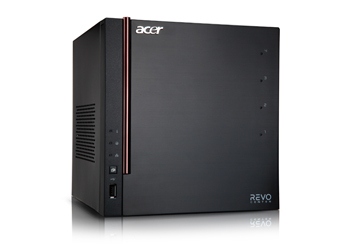

RevoCenter AH341-S1T20N

Model RevoCenter AH341-S1T20NPart no. PG.T1A0W.012EAN 884483979868

76 specifications

Overview

Brand: Acer
Category: PCs/Workstations
Model: RevoCenter AH341-S1T20N
Part number: PG.T1A0W.012
EAN / UPC: 884483979868
Also known as: Acer Revo RevoCenter AH341-S1T20N Intel Atom® D410 2 GB DDR2-SDRAM 1 TB Windows Home Server Mini PC Black

76 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D410
Processor cores	1
Processor threads	2
Processor frequency	1.66 GHz
Processor cache	0.512 MB
Processor cache type	L2
Bus type	DMI
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D400 Series
Processor codename	Pineview
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Processor socket	BGA 559
Number of Processing Die Transistors	123 M
Processing Die size	66 mm²
Stepping	A0
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB

Specification	Value
On-board graphics card	Yes
On-board graphics card model	Integrated

Specification	Value
Product type	Mini PC

Specification	Value
Ethernet LAN (RJ-45) ports	1

Specification	Value
Power requirements	100 - 220 V

Specification	Value
Product colour	Black

Specification	Value
Operating system installed	Windows Home Server

Specification	Value
Display included	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	43517
Processor code	SLBMH
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
