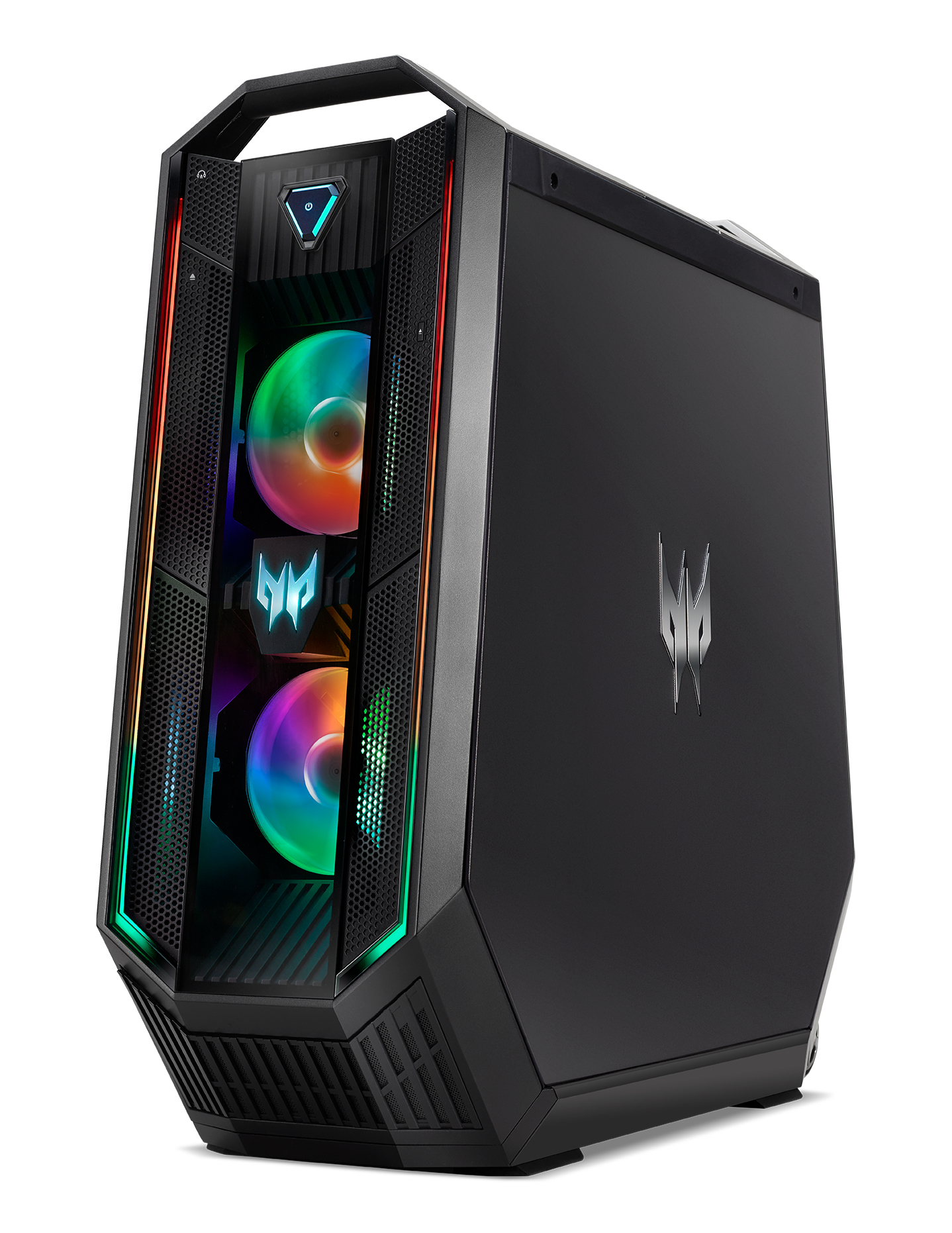

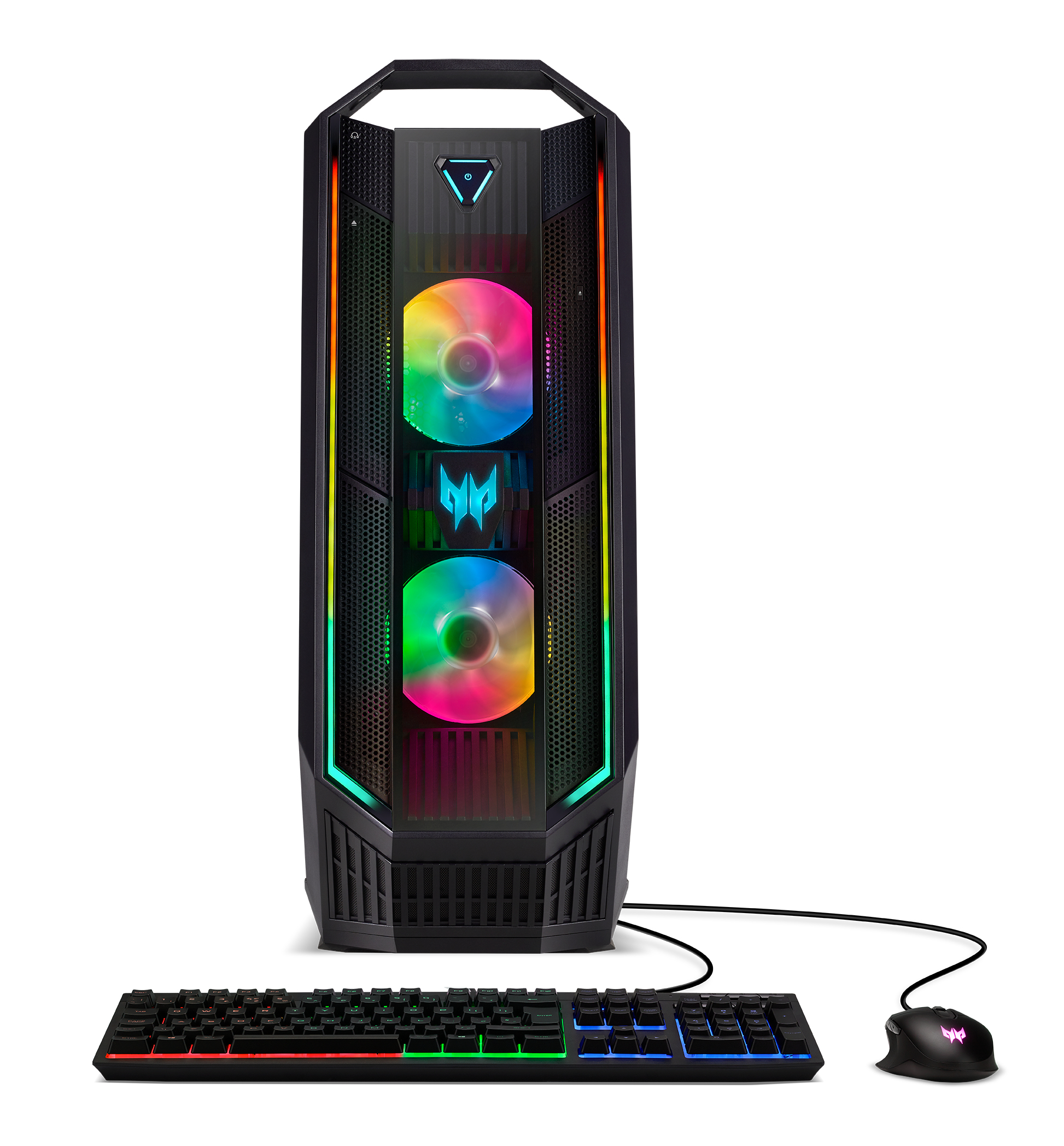

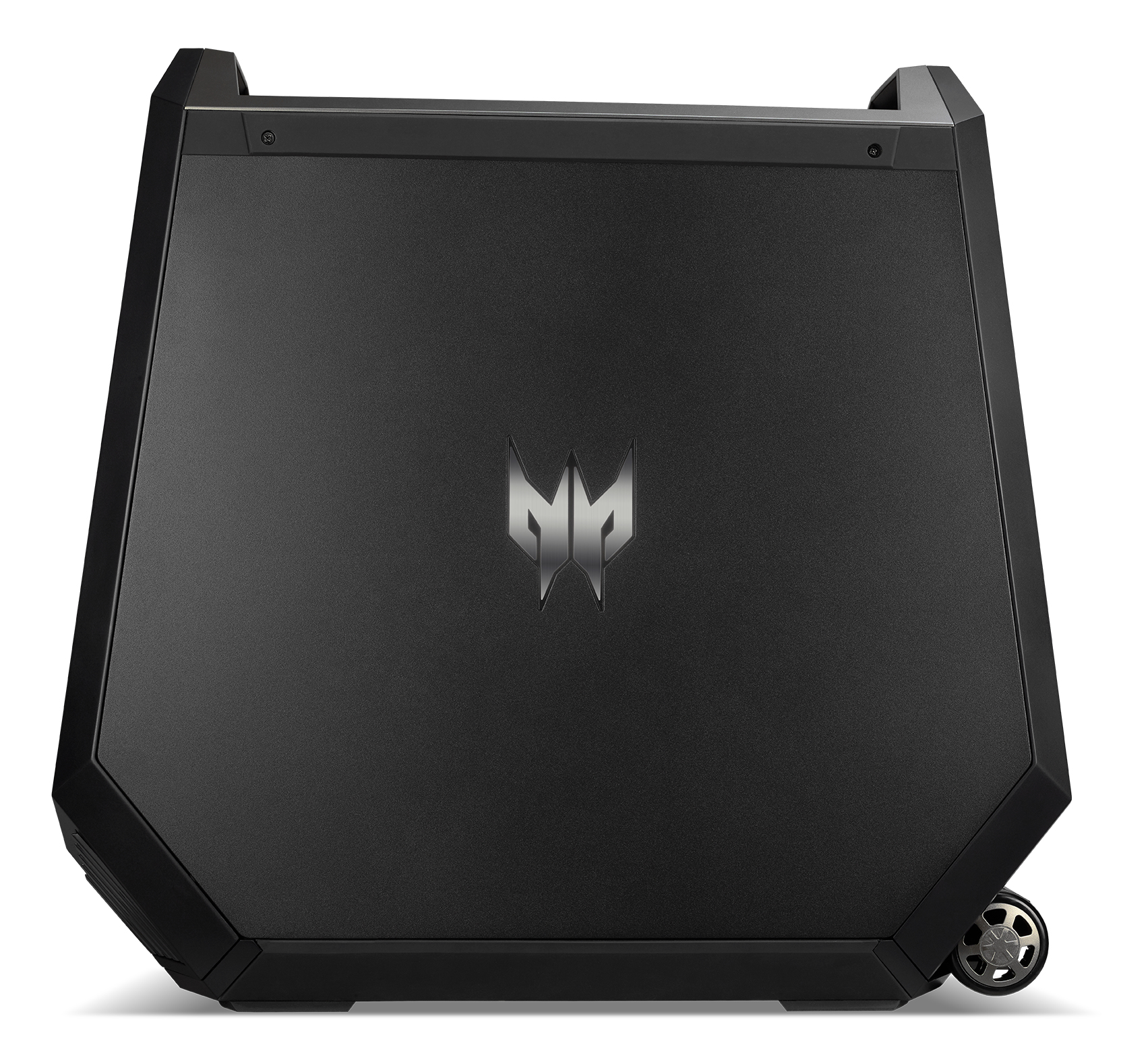

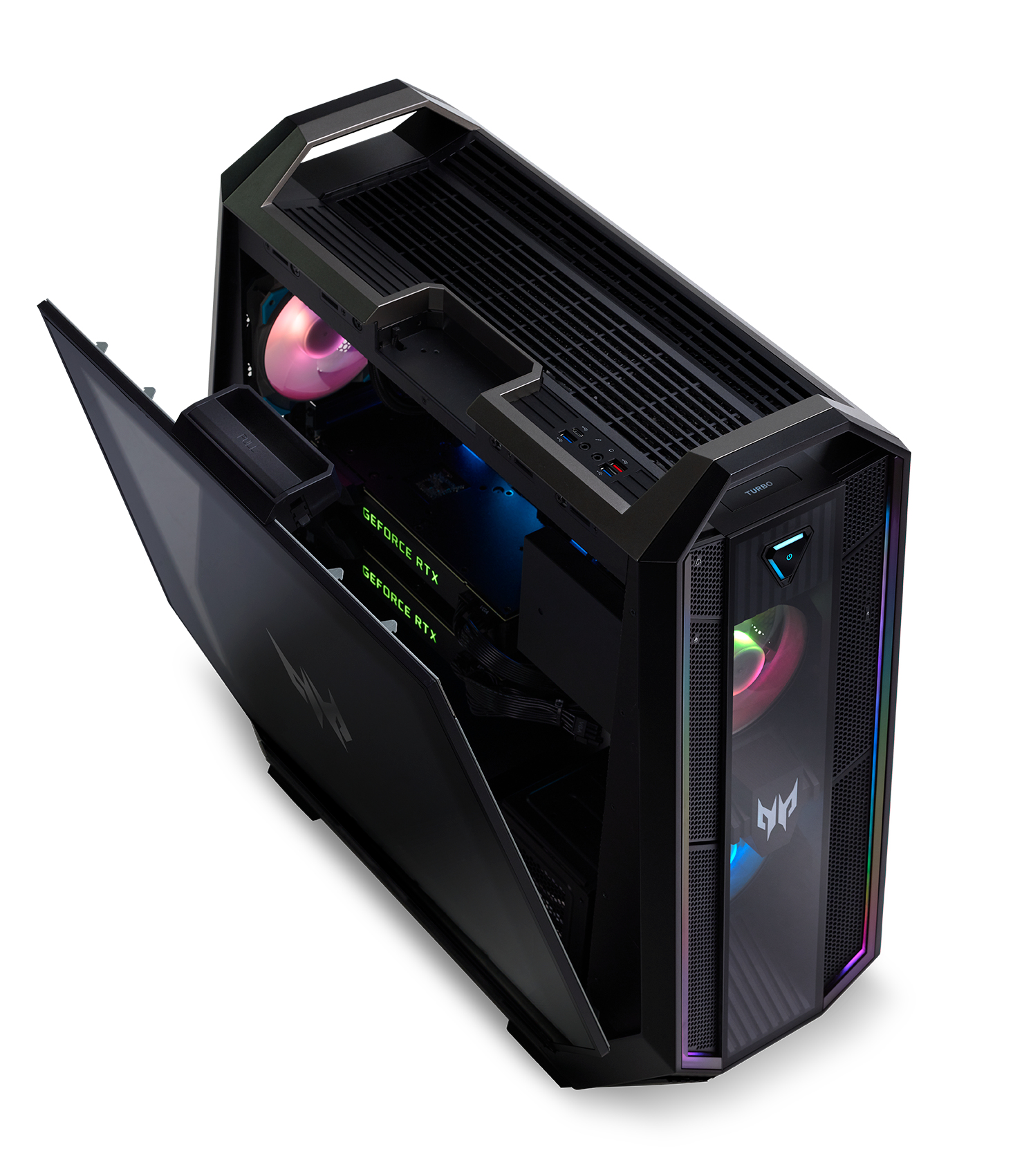

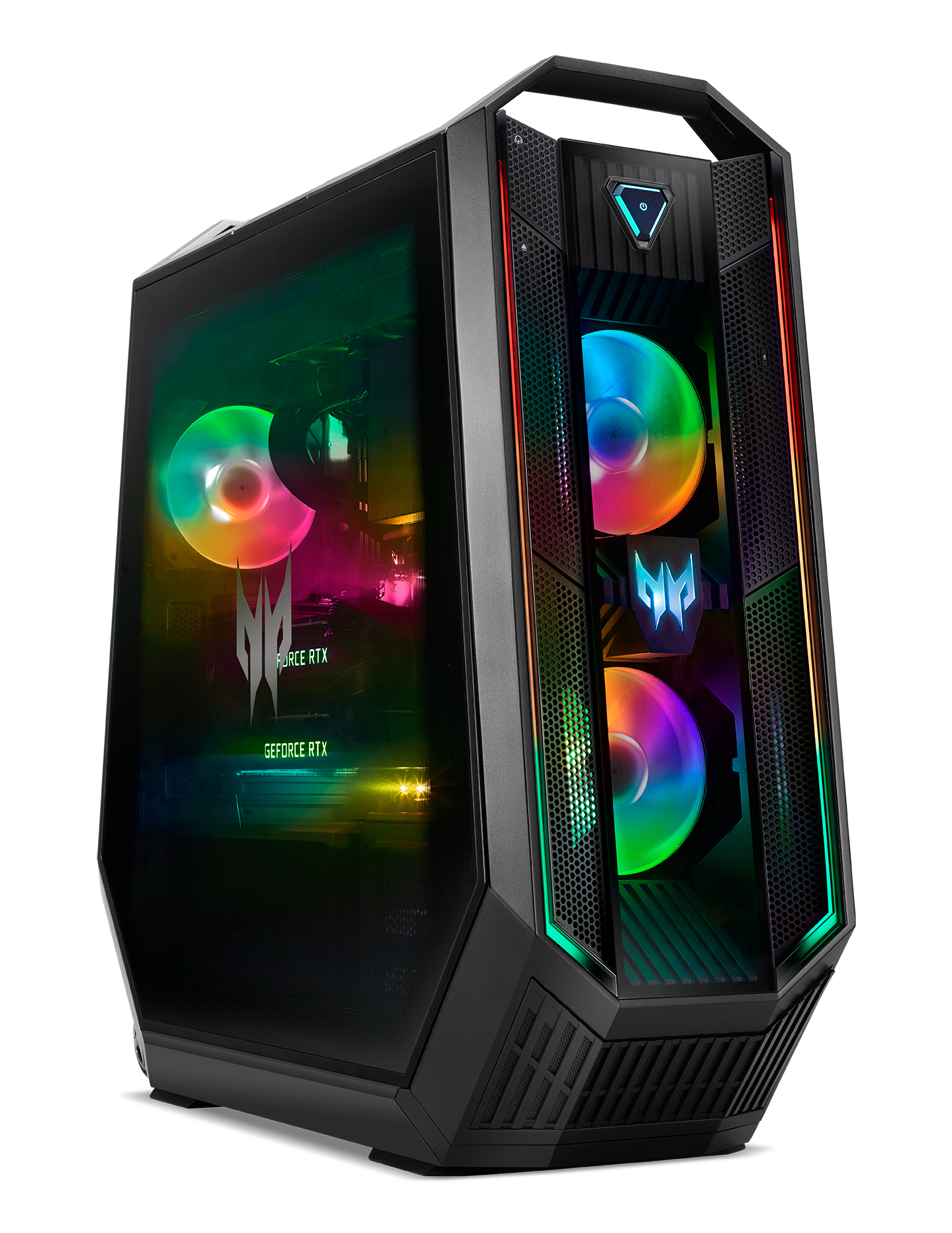

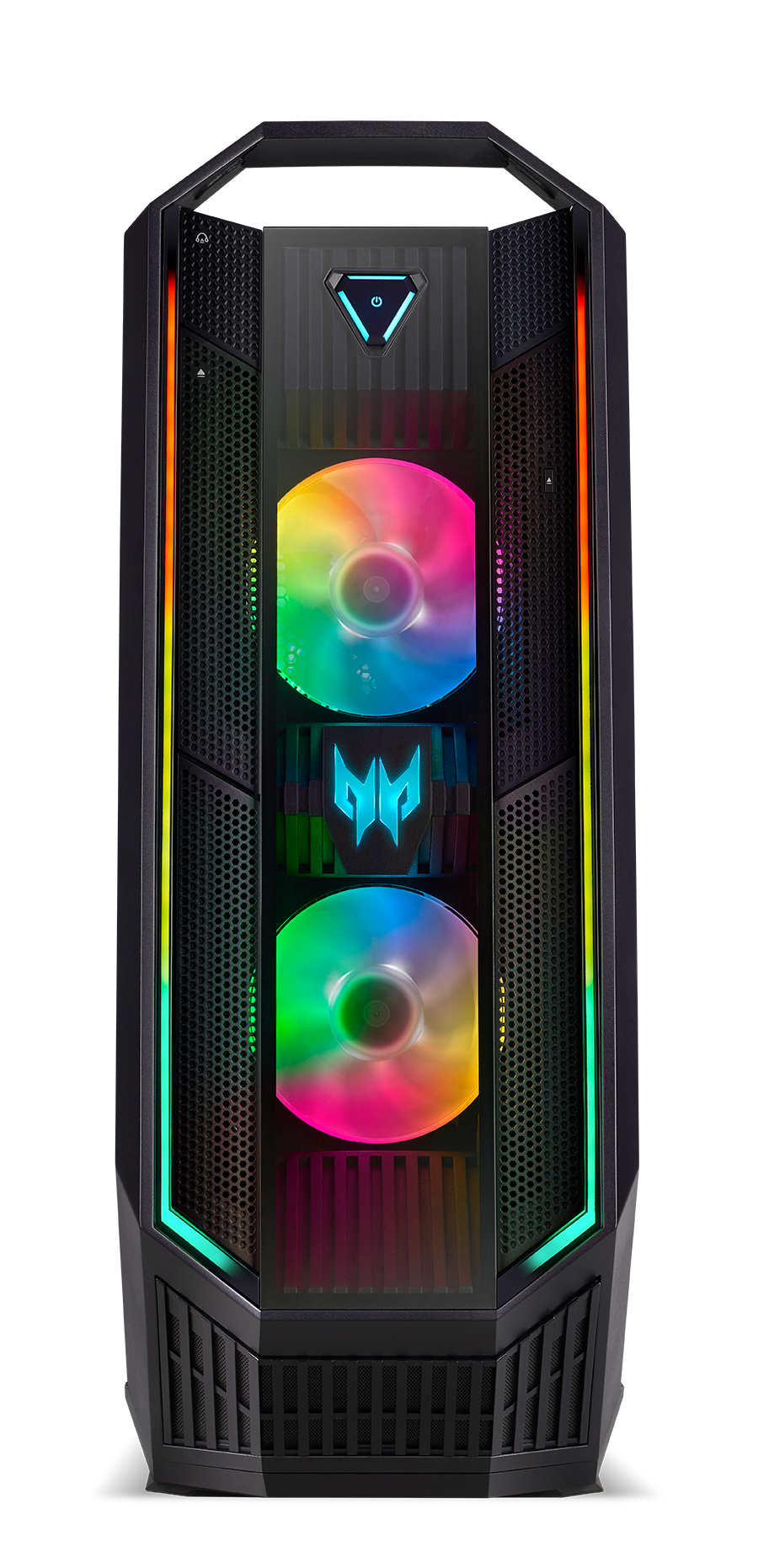

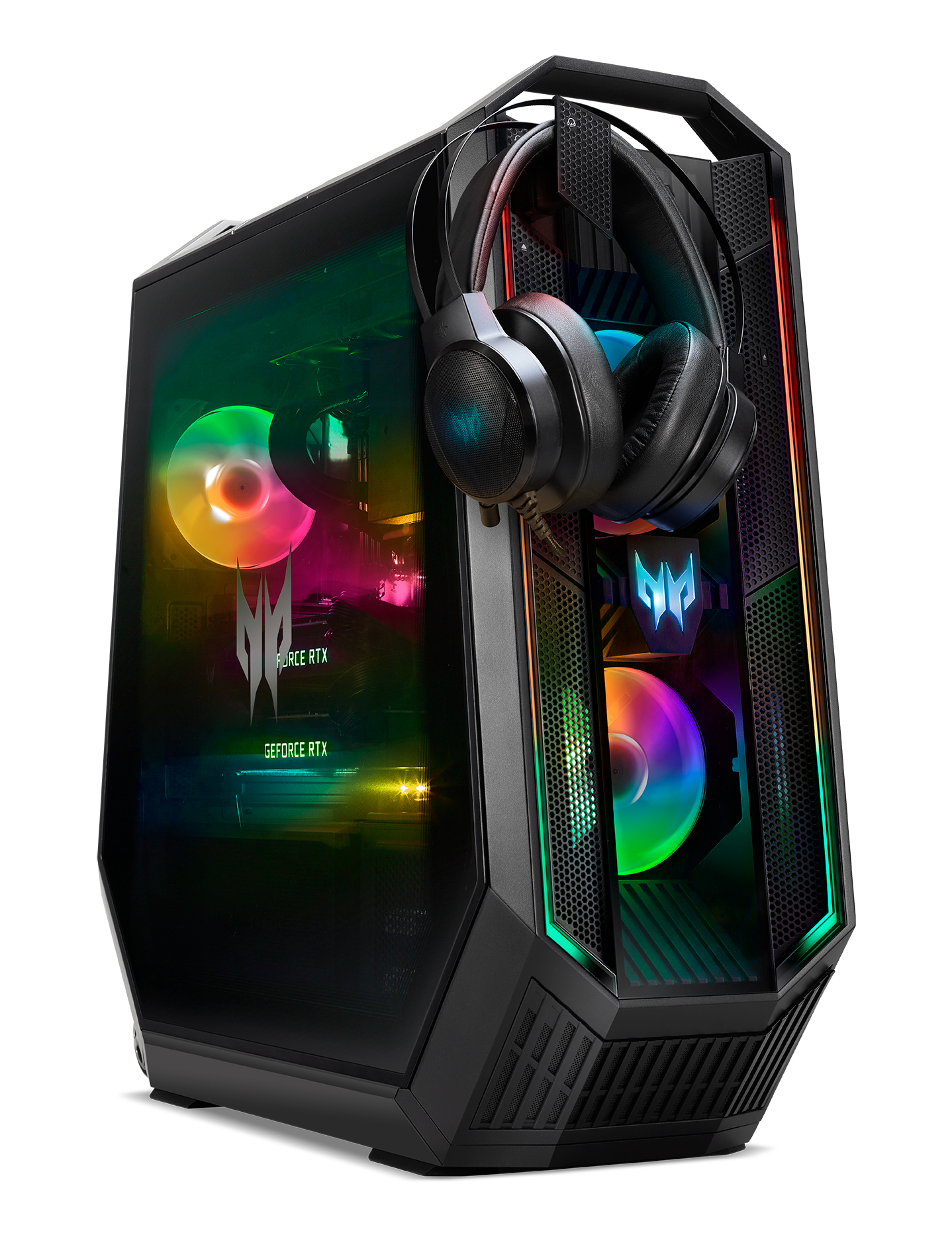

Orion 9000 920 I9X0-39GLR0 NL
Model Orion 9000 920 I9X0-39GLR0 NLPart no. DG.E24EH.003EAN 4710886324850
103 specifications
- ProcessorIntel® Core™ i9 X-series
- Memory64 GB
- Storage2 TB
- GraphicsNVIDIA GeForce RTX 3090
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i9 X-series
- Memory
- 64 GB
- Storage
- 2 TB
- Graphics
- NVIDIA GeForce RTX 3090
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- Orion 9000 920 I9X0-39GLR0 NL
- Part number
- DG.E24EH.003
- EAN / UPC
- 4710886324850
- Also known as
- Acer Predator Orion 9000 920 I9X0-39GLR0 NL Intel® Core™ i9 X-series i9-10900X 64 GB DDR4-SDRAM 2 TB SSD NVIDIA GeForce RTX 3090 Windows 10 Home Tower PC Transp
Specifications
103 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i9 X-series |
| Processor generation | 10th gen Intel® Core™ i9 |
| Processor model | i9-10900X |
| Processor cores | 10 |
| Processor threads | 20 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 3.7 GHz |
| Processor cache | 19.25 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Cascade Lake |
| Thermal Design Power (TDP) | 165 W |
| Tjunction | 94 °C |
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2066 (Socket R4) |
| Maximum internal memory supported by processor | 256 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2933 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 8 x 8 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2933 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |

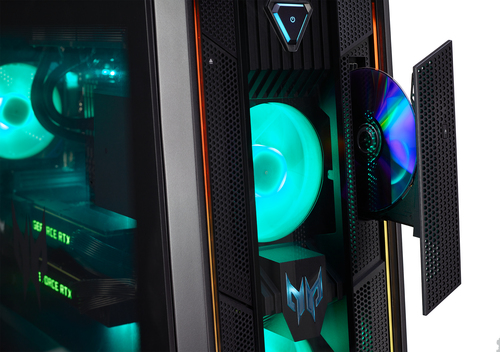

| Optical drive type | DVD-RW |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express |
| Card reader integrated | No |
| RAID support | Yes |
| RAID levels | 0 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card model | NVIDIA GeForce RTX 3090 |
| Discrete graphics card memory | 24 GB |
| Discrete graphics memory type | GDDR6X |
| On-board graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel® X299 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |

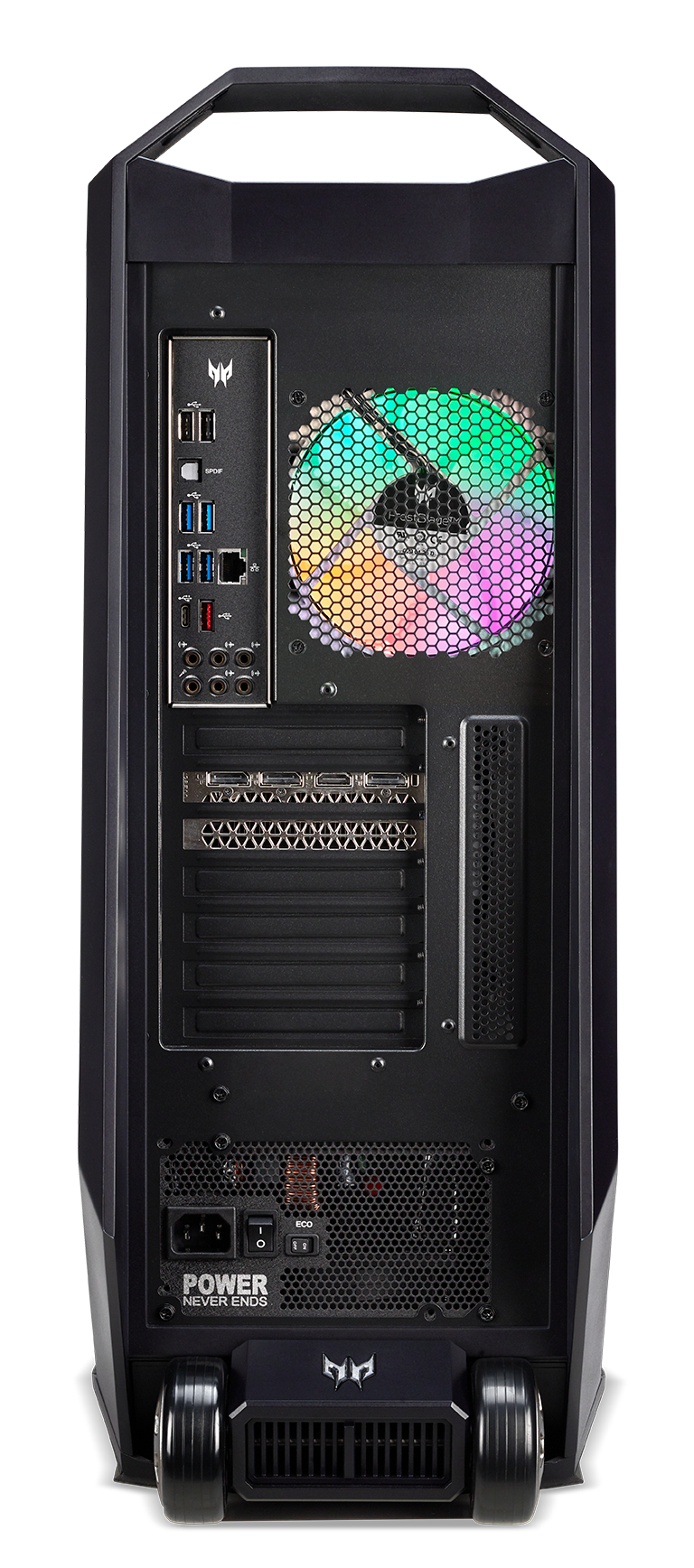

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 1.4a |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| DVI port | No |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 3 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Transparent |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 198019 |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0, AVX-512 |
| Thermal solution specification | PCG 2017X |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 230 mm |
| Depth | 650 mm |
| Height | 618 mm |
| Weight | 20 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Keyboard
| Specification | Value |
|---|---|
| Keyboard layout | QWERTY |
