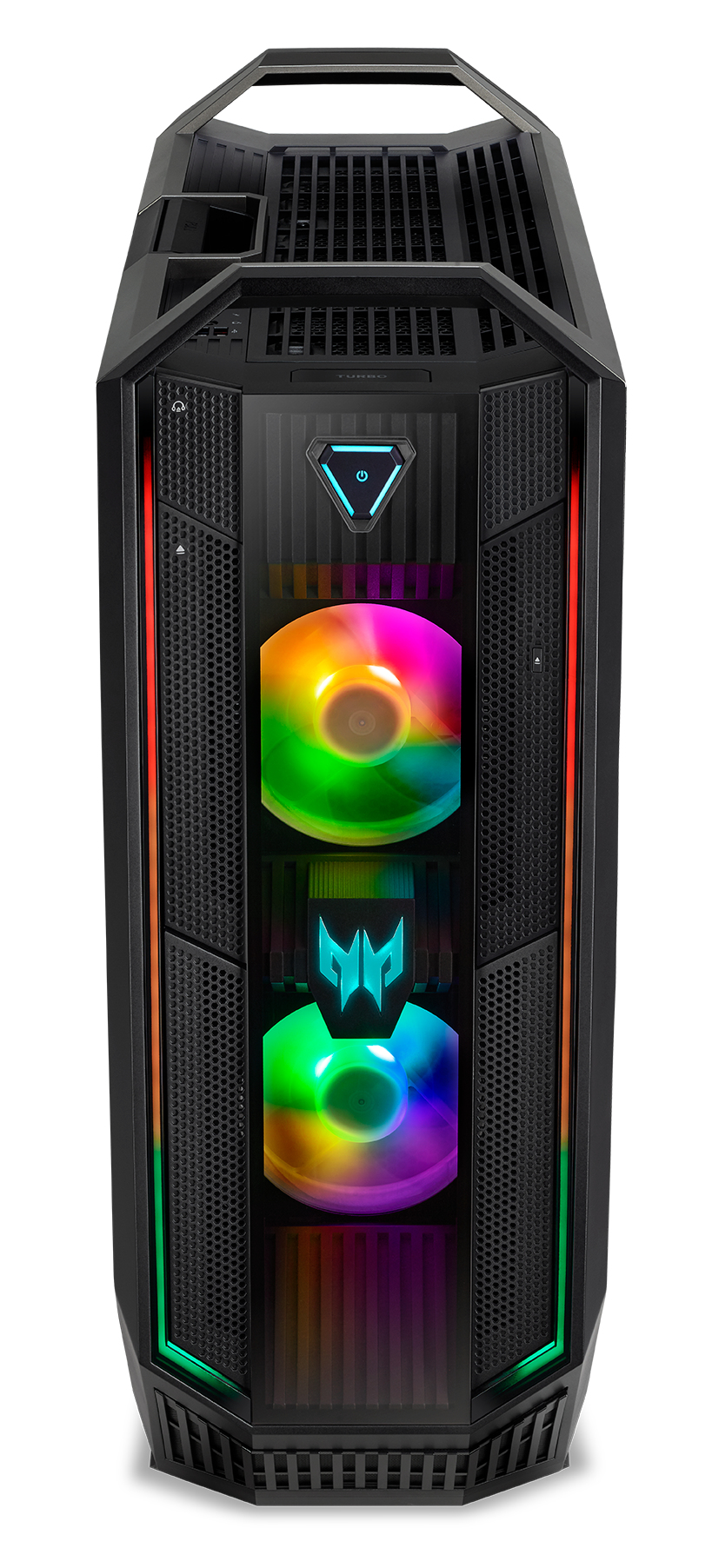

Orion 9000 920 I9X0-38GLR1 BE

Model Orion 9000 920 I9X0-38GLR1 BEPart no. DG.E24EH.002EAN 4710886324744

111 specifications

Overview

Brand: Acer
Category: PCs/Workstations
Model: Orion 9000 920 I9X0-38GLR1 BE
Part number: DG.E24EH.002
EAN / UPC: 4710886324744
Also known as: Acer Predator Orion 9000 920 I9X0-38GLR1 BE Intel® Core™ i9 X-series i9-10900X 32 GB DDR4-SDRAM 5 TB HDD+SSD NVIDIA GeForce RTX 3080 Windows 10 Home Tower PC Tr

111 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9 X-series
Processor generation	10th gen Intel® Core™ i9
Processor model	i9-10900X
Processor cores	10
Processor threads	20
Processor boost frequency	4.5 GHz
Processor frequency	3.7 GHz
Processor cache	19.25 MB
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Cascade Lake
Thermal Design Power (TDP)	165 W
Tjunction	94 °C
Maximum number of PCI Express lanes	48
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2066 (Socket R4)
Maximum internal memory supported by processor	256 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2933 MHz

Specification	Value
Total storage capacity	5 TB
Optical drive type	DVD-RW
Storage media	HDD+SSD
Number of storage drives installed	3
Total HDDs capacity	3 TB
Number of HDDs installed	1
HDD capacity	3 TB
HDD interface	SATA
HDD speed	7200 RPM
HDD size	3.5"
Total SSDs capacity	2 TB
Number of SSDs installed	2
SSD capacity	1 TB
NVMe	Yes
SSD interface	NVMe, PCI Express
Card reader integrated	No
RAID support	Yes
RAID levels	1

Specification	Value
Discrete graphics card	Yes
On-board graphics card	No
Discrete graphics card model	NVIDIA GeForce RTX 3080
Discrete graphics card memory	10 GB
Discrete graphics memory type	GDDR6X
On-board graphics card model	Not available

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX200
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.1

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	3
DisplayPort version	1.4a
HDMI ports quantity	1
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Line-out	Yes
Line-in	Yes
Microphone in	Yes
DVI port	No

Specification	Value
PCI Express x16 slots	3

Specification	Value
Power supply	1000 W
80 PLUS certification	80 PLUS Gold

Specification	Value
Chassis type	Tower
Product colour	Transparent

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Processor ARK ID	198019
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0, AVX-512
Thermal solution specification	PCG 2017X
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
