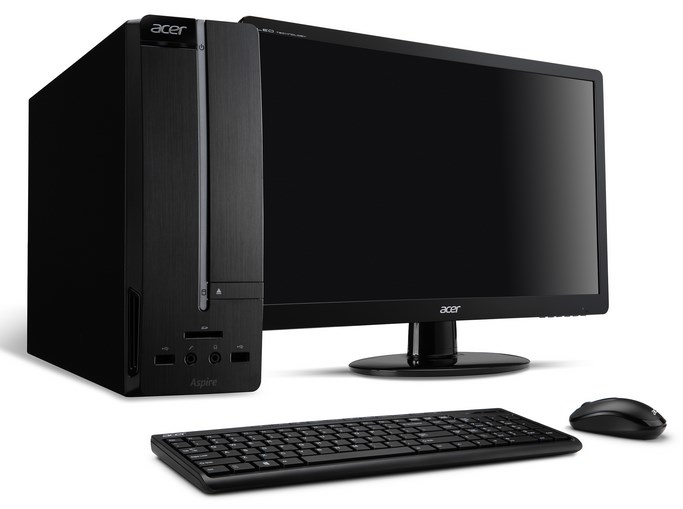

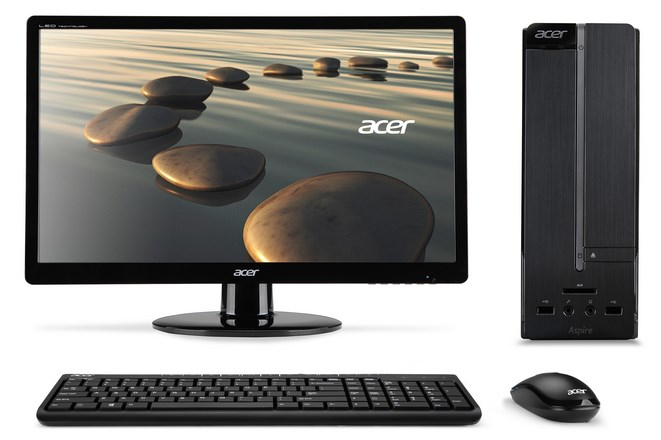

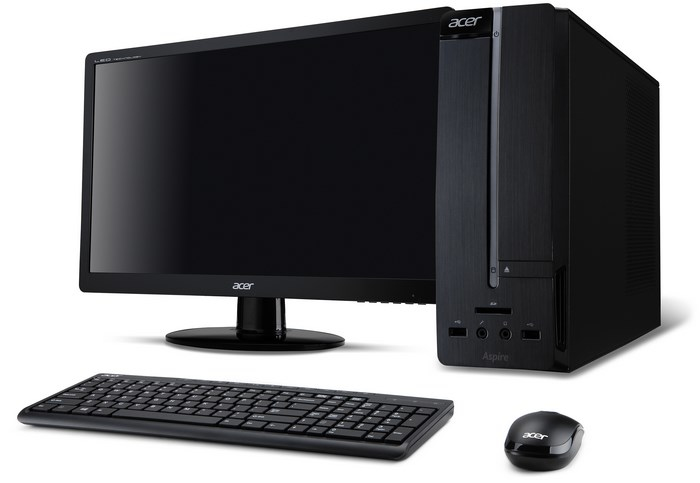

Aspire C-603-MO14 Intel® Pentium® J2900
4 GB DDR3-SDRAM 500 GB HDD Windows 8 SFF PC Black
Model C-603-MO14Part no. DL.SUMAL.003
129 specifications
- Display49.5 cm (19.5")
- Resolution1600 x 900 pixels
- ProcessorIntel® Pentium®
- Memory4 GB
- Storage500 GB
- GraphicsNot available
Overview
- Display
- 49.5 cm (19.5")
- Resolution
- 1600 x 900 pixels
- Processor
- Intel® Pentium®
- Memory
- 4 GB
- Storage
- 500 GB
- Graphics
- Not available
- Brand
- Acer
- Category
- PCs/Workstations
- Model
- C-603-MO14
- Part number
- DL.SUMAL.003
- Also known as
- Acer Aspire C-603-MO14 Intel® Pentium® J2900 4 GB DDR3-SDRAM 500 GB HDD Windows 8 SFF PC Black
Specifications
129 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® |
| Processor model | J2900 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.66 GHz |
| Processor frequency | 2.41 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| FSB Parity | No |
| Processor lithography | 22 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Pentium J2000 Series for Desktop |
| Processor codename | Bay Trail |
| Thermal Design Power (TDP) | 10 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 4 |
| PCI Express configurations | 1x4 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1170 |
| Stepping | B3 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR3L-SDRAM |
| Memory clock speeds supported by processor | 1333 MHz |
| Memory bandwidth supported by processor (max) | 21.3 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD Super Multi DL |
| Storage media | HDD |
| Number of storage drives installed | 1 |
| Number of HDDs installed | 1 |
| HDD capacity | 500 GB |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 688 MHz |
| On-board graphics card burst frequency | 896 MHz |
| On-board graphics card dynamic frequency (max) | 896 MHz |
| On-board graphics card DirectX version | 11.2 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Audio output channels | 5.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
Expansion slots
| Specification | Value |
|---|---|
| Mini PCI Express slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 220 W |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Placement supported | Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 49.5 cm (19.5") |
| Display resolution | 1600 x 900 pixels |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel Rapid Storage Technology | No |
| Intel Small Business Advantage (SBA) version | 0.00 |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Physical Address Extension (PAE) | 36 bit |
| Processor ARK ID | 78868 |
| Processor code | SR1SB |
| Processor package size | 25 X 27 mm |
| Thermal Monitoring Technologies | No |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 369.7 mm |
| Height | 266.5 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
