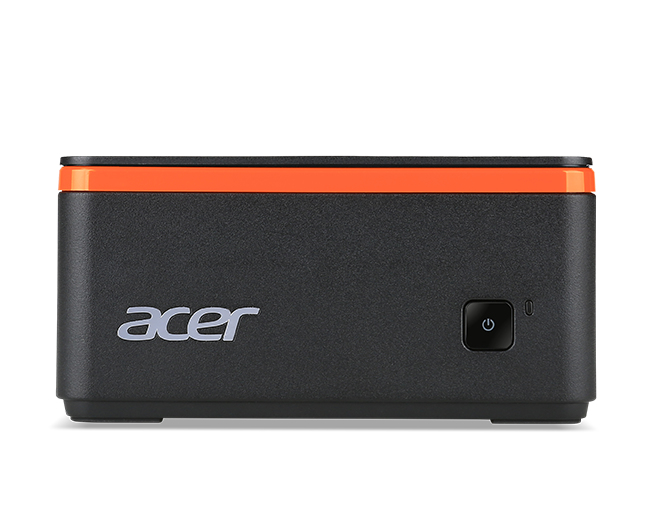

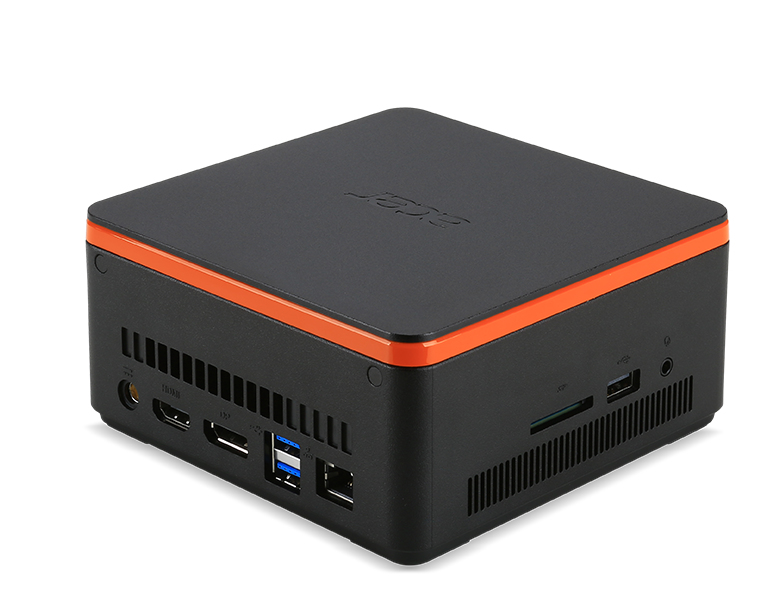

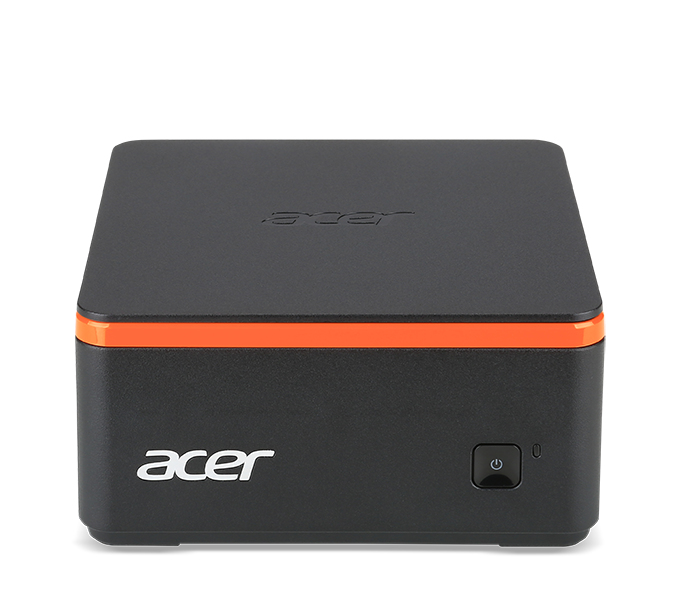

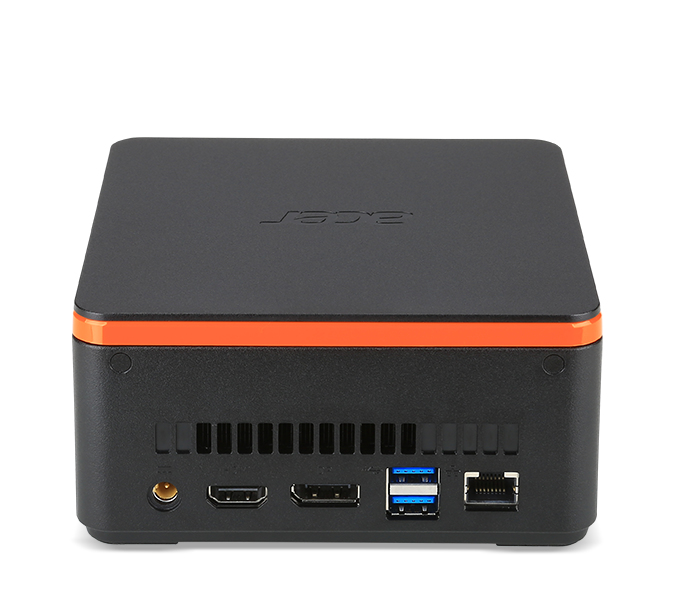

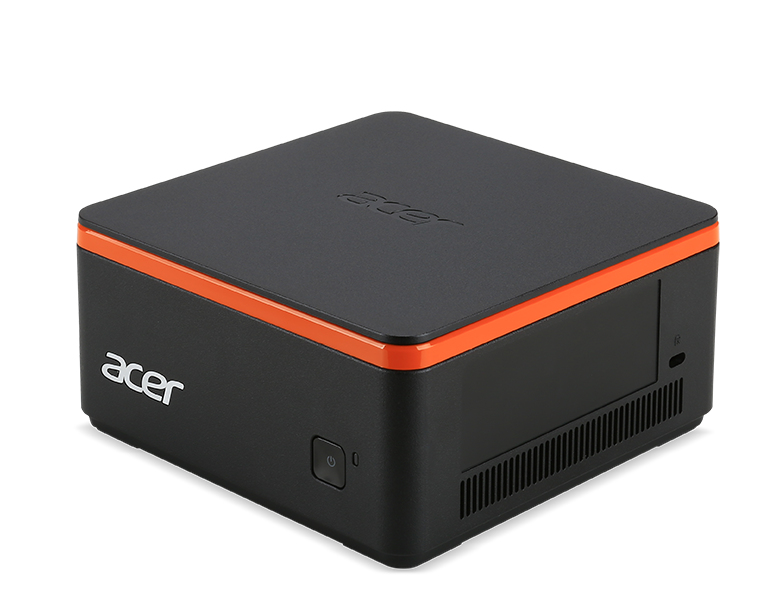

Build M1-601

Model Build M1-601Part no. DT.B51EH.001EAN 4713392692918

117 specifications

Overview

Brand: Acer
Category: PCs/Workstations
Model: Build M1-601
Part number: DT.B51EH.001
EAN / UPC: 4713392692918
Also known as: Acer Revo Build M1-601 Intel® Celeron® J3060 2 GB DDR3L-SDRAM 32 GB SSD Windows 10 Home Mini PC Black, Orange

117 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J3060
Processor cores	2
Processor threads	2
Processor boost frequency	2.48 GHz
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	L2
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Braswell
Thermal Design Power (TDP)	6 W
Tjunction	90 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	2.0
Number of processors installed	1
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1600 MHz
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 400
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	320 MHz
On-board graphics card burst frequency	700 MHz
On-board graphics card dynamic frequency (max)	700 MHz
Number of execution units	12

Specification	Value
Product type	Mini PC

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	0
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	No

Specification	Value
Power supply	65 W

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Bundled software	McAfee® Internet Security Suite - 30 days trial

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Secure Key	Yes
Processor ARK ID	91534
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	Yes
UART	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
Integrated 4G WiMAX	No
